B060 Page 14 SINUMERIK 828D
Notes
Section 6
Hardware information
General.
Since the integrated control unit (CU) can control
only 6 axes, an NX10 module is required to
achieve the maximum number of 8 axes allowed
by the system.
The modules are of the same design as the
Sinamics S120 drives and fit neatly into the drive
rack.
All modules have to be connected to the
DriveCliq network.
Digital input & output functionality is available.
Drive enable signals OFF1 and OFF3 are
required to be connected here.
The functionality of the inputs and outputs can be
assigned by the user.
To maintain consitency with the CU the
recommended drive enable connections are:-
X122.1 = OFF1
X122.2 = OFF3
A separate 24V DC supply is required in order for
the inputs and putputs to function.
Part Number:-
6SL3040-0NC00-0AA0

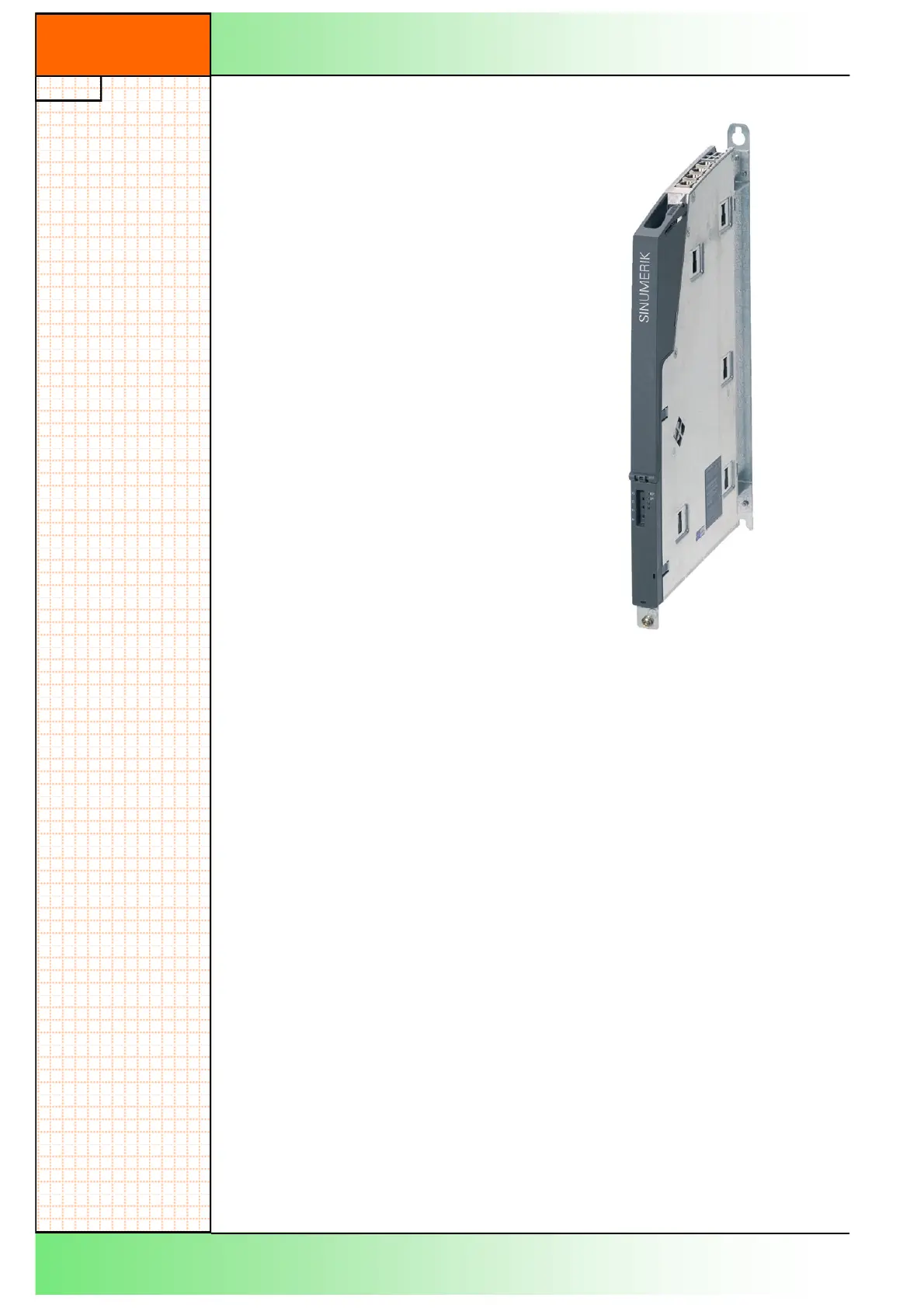

NX10 Module (Numerical Control Extension) Only for the T version
NX10

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
