Programming with ShopMill 10.04
3.7 Drillin
g
3
 Siemens AG, 2004. All rights reserved
3-250 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

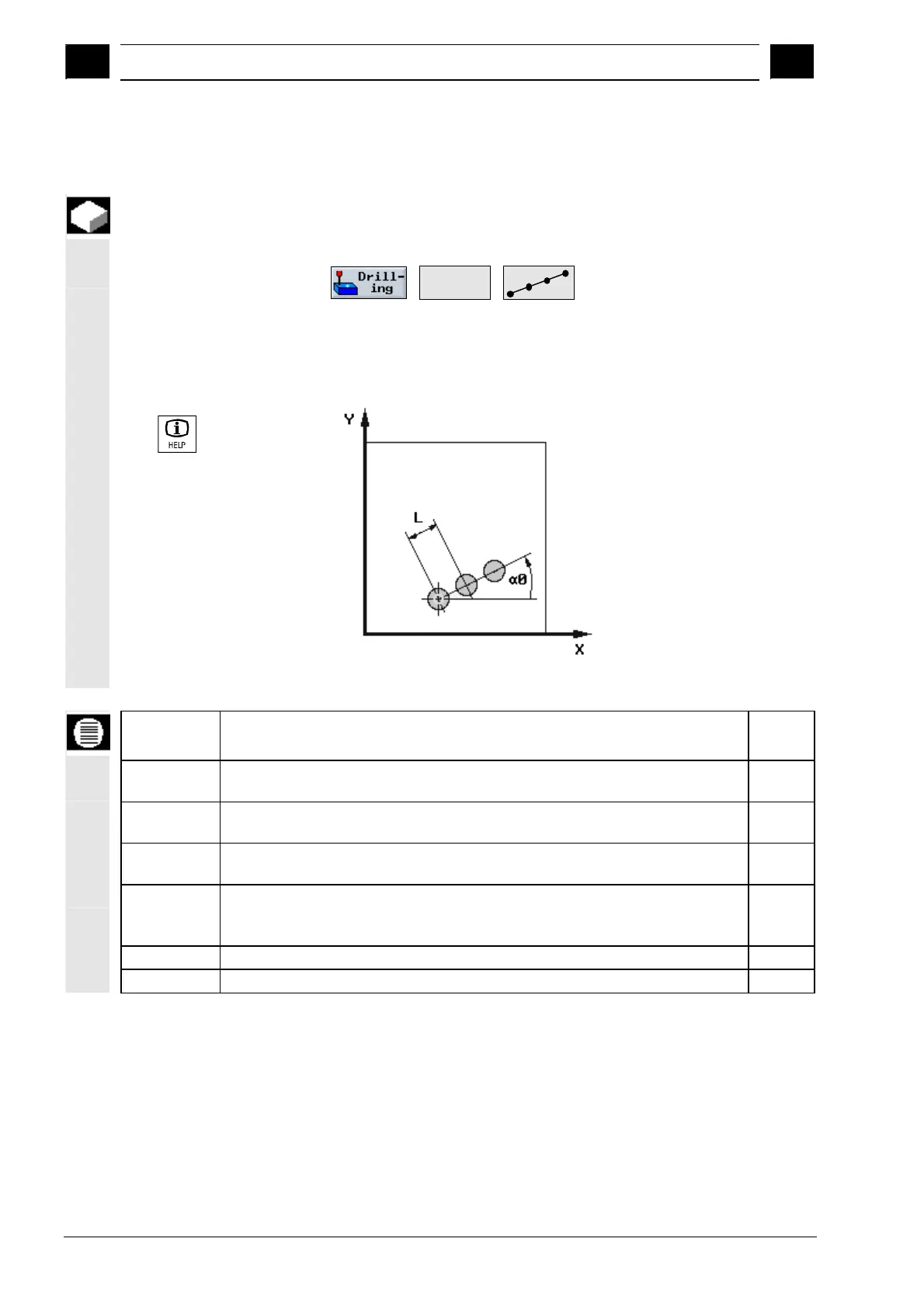

3.7.10 Line position pattern
You can use this function to program any number of positions spaced
at the same distance along a line.
Select with softkey
Positions >
Position the cursor in the "Line/matrix/box" field. With the "Alternat."
softkey you can select the "Line" position pattern.
Call help display with
the
key
Help display for "Line"
Parameters Description Unit
Z0 Height of workpiece (abs. or inc.)
This position must be programmed absolutely in the first call.
mm
X0 Reference point (first position)
This position must be programmed absolutely in the first call.
mm
Y0 Reference point (first position)
This position must be programmed absolutely in the first call.
mm
α0
A
ngle of rotation of line in relation to the X axis.
Positive angle: Line is rotated counterclockwise.
Negative angle: Line is rotated clockwise.
Degr.
L Position spacing. mm
N Number of positions.
