10.04 Programming with ShopMill
3.7 Drillin
g
3
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 3-251
3.7.11 Matrix position pattern
You can use this function to program any number of positions spaced
at an equal distance along one or several parallel lines.
If you want to program a rhombus-shaped matrix, enter the angle αX
or αY.
Select with softkey
Positions >
Position the cursor in the "Line/matrix/box" field. With the "Alternat."
softkey you can select the "Matrix" position pattern.
Call help display with
the
key

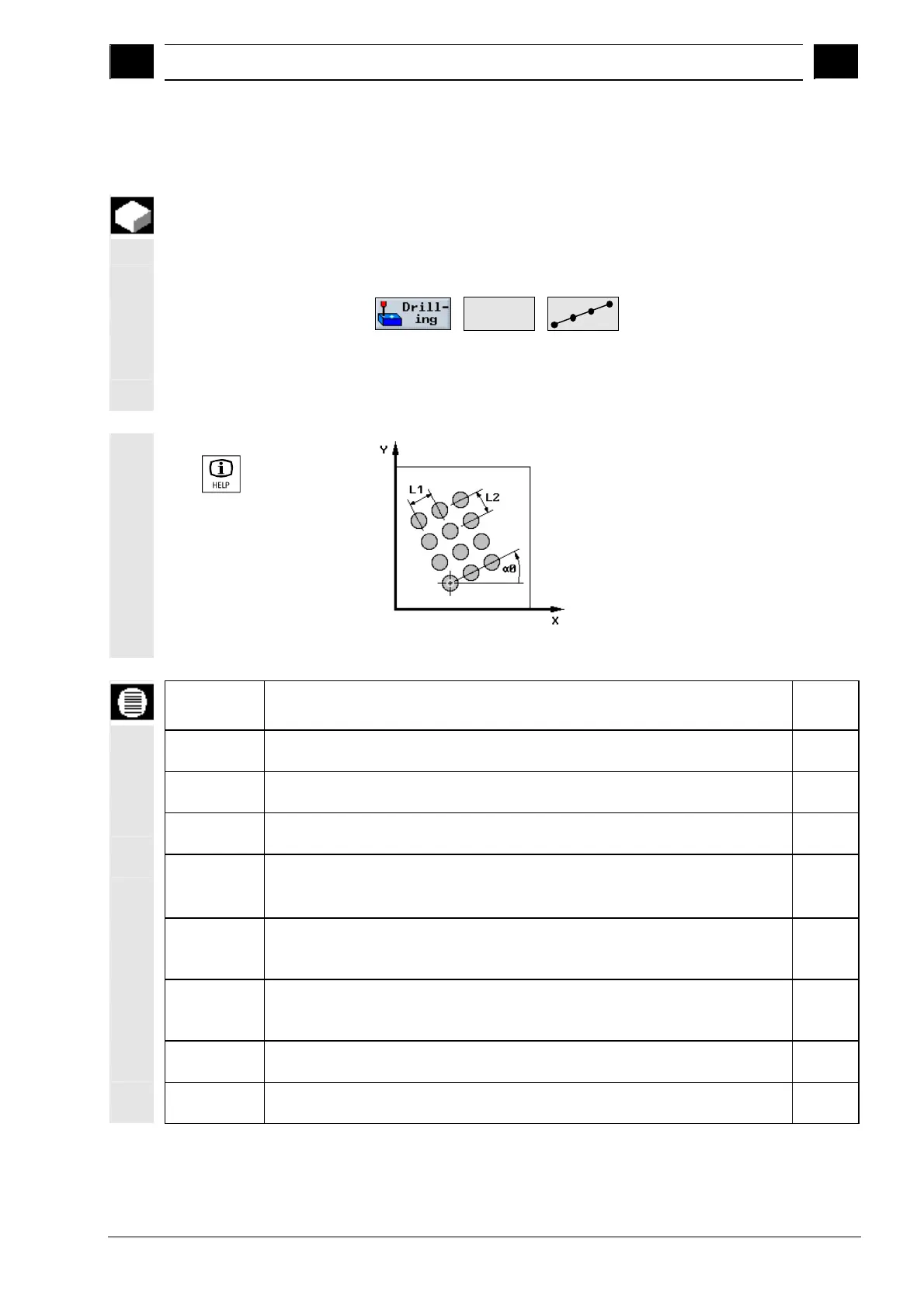

Help display for "Matrix"
Parameters Description Unit
Z0 Height of workpiece (abs. or inc.)
This position must be programmed absolutely in the first call.
mm
X0 Reference point (first position)
This position must be programmed absolutely in the first call.
mm
Y0 Reference point (first position)
This position must be programmed absolutely in the first call.
mm
α0
A
ngle of rotation of matrix.
Positive angle: Matrix is rotated counterclockwise.
Negative angle: Matrix is rotated clockwise.
Degr.
αX
Shear angle of matrix relative to X axis.
Positive angle: Matrix shears in CCW direction.
Negative angle: Matrix shears in CW direction.
Degr.
αY
A
ngle of rotation of matrix relative to Y axis
Positive angle: Matrix is rotated counterclockwise.
Negative angle: Matrix is rotated clockwise.
Degr.
L1
L2
Position spacing in X direction
Position spacing in Y direction
mm
N1
N2
Number of positions in X direction
Number of columns in Y direction
