01.91 5 Configuring
5.8 FB 128 Transfer
The status words necessary for multi-cycle processing are handled in internal program
channels. The dummy parameters "QMNR" and "QPNR" are used to determine the correct
program channel during multi-cycle processing. To ensure error-free operation of a block, the
source data "QMNR" and "QPNR" may be assigned only once per block function. (Warning:
Danger of illegal status word assignment!!)
Special features
With/without magazine configuration (MD bit 12)
0: Without magazine configuration
Before transferring the tool data from the source location to the target location, a check is
made to find out whether a sufficient number of unassigned locations is available to the left
and right of the target location for the tool to be inserted, and whether any adjacent
locations which may be required are marked as "occupied" (DB 151, bits 3 and 7). The
tool size and the type of tool adapter (DBZW+1) of the source location are cleared after
the transfer to the target location.
If a magazine location is reserved during transfer from a magazine to a tool buffer via the
parameter "RES" (DB 152, bit 5=1), the tool size and, if required, adjacent locations are
maintained (reserving the tool gap). The entry is deleted during transfer to a magazine
location not equal to the old location (from V1.2 onwards).
1: With magazine configuration
The tool size is not checked between source and target location. The data in the DB
status word (DBZW)+1 are copied indiscriminately from the source to the target location.
After the transfer, the tool size and the type of tool adapter (DBZW+1) of the source
location are not cleared.
If a magazine location is reserved via parameter "RES" during transfer from a buffer, bit 5
is set in DB 152 ("Location reserved"). The entry is deleted during transfer to a location
not equal to the old location (from V1.2 onwards).

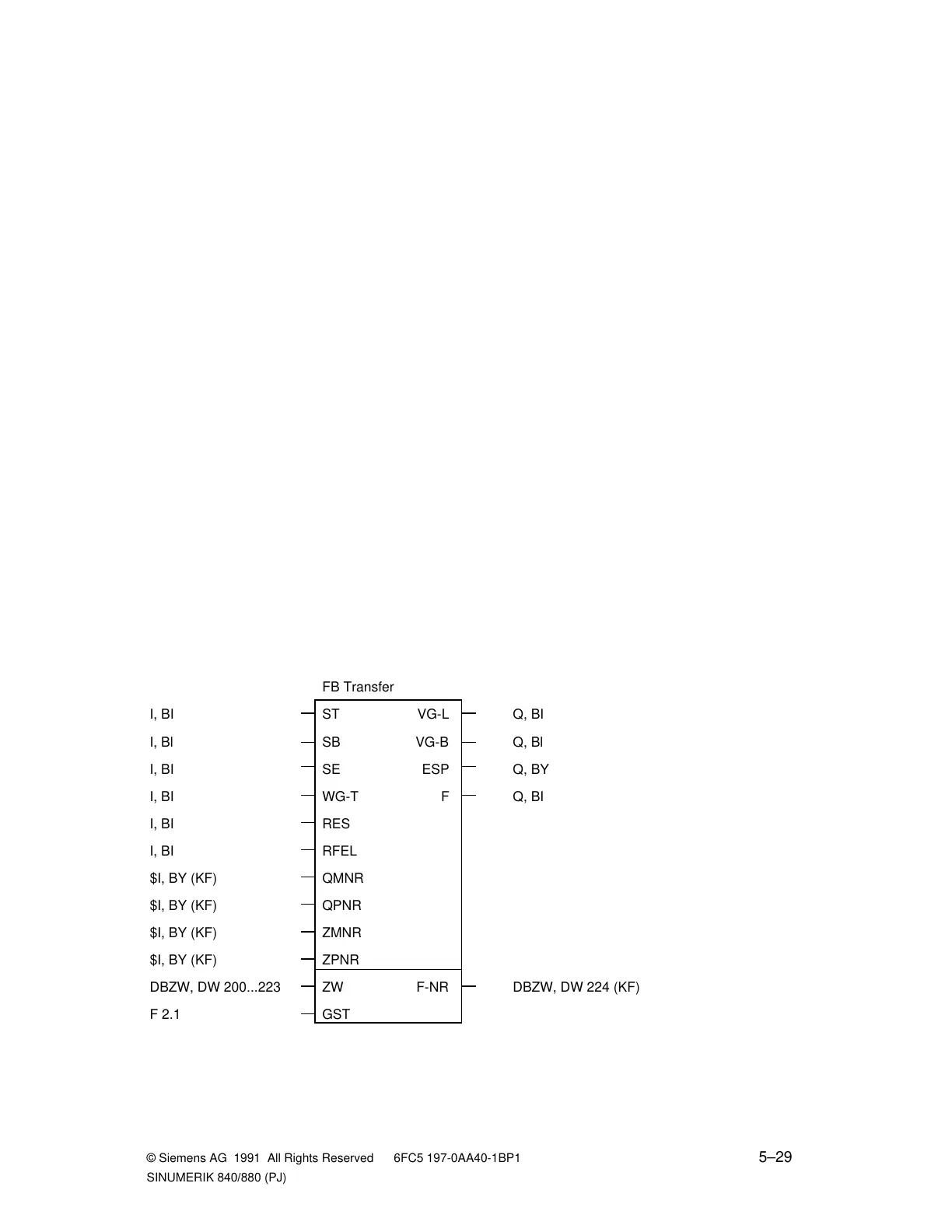

Block call FB 128
