Introduction 08/2005
1.2 Workstation
1
♥ Siemens AG, 2005. All rights reserved
1-22 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
OP 012 operator panel
1
7A2
A3
A4
A2
A4
6
A5

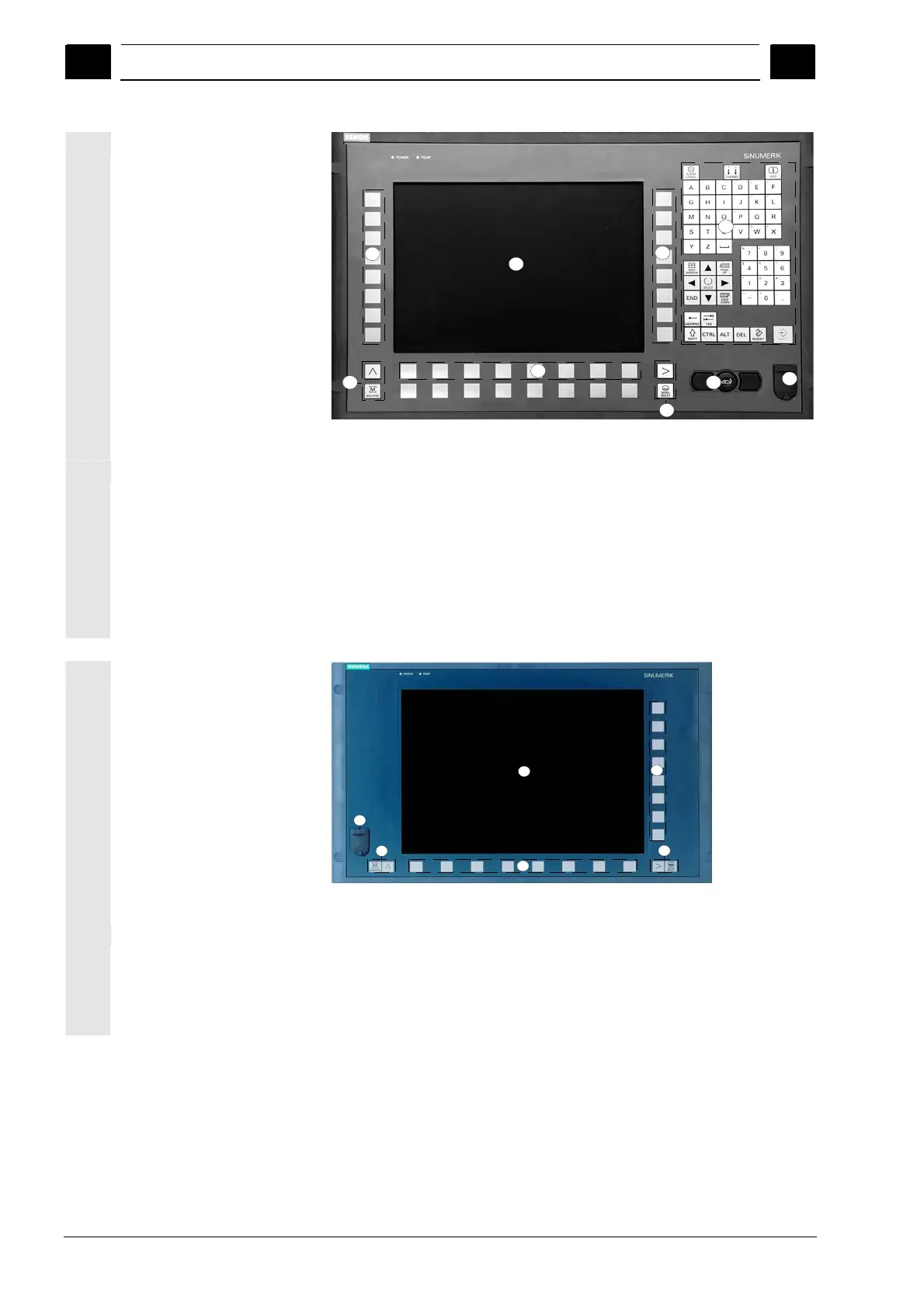

OP 012 operator panel
1 12" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 Alphanumeric keypad
Correction/cursor pad with control keys and input key
6 USB interface
7 Mouse
Operator panel OP 015
1
5
A2
A3
A4
A2
Operator panel OP 015
1 15" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 USB interface
