1
08/2005 Introduction
1.3 O
erator interface
1
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 1-35

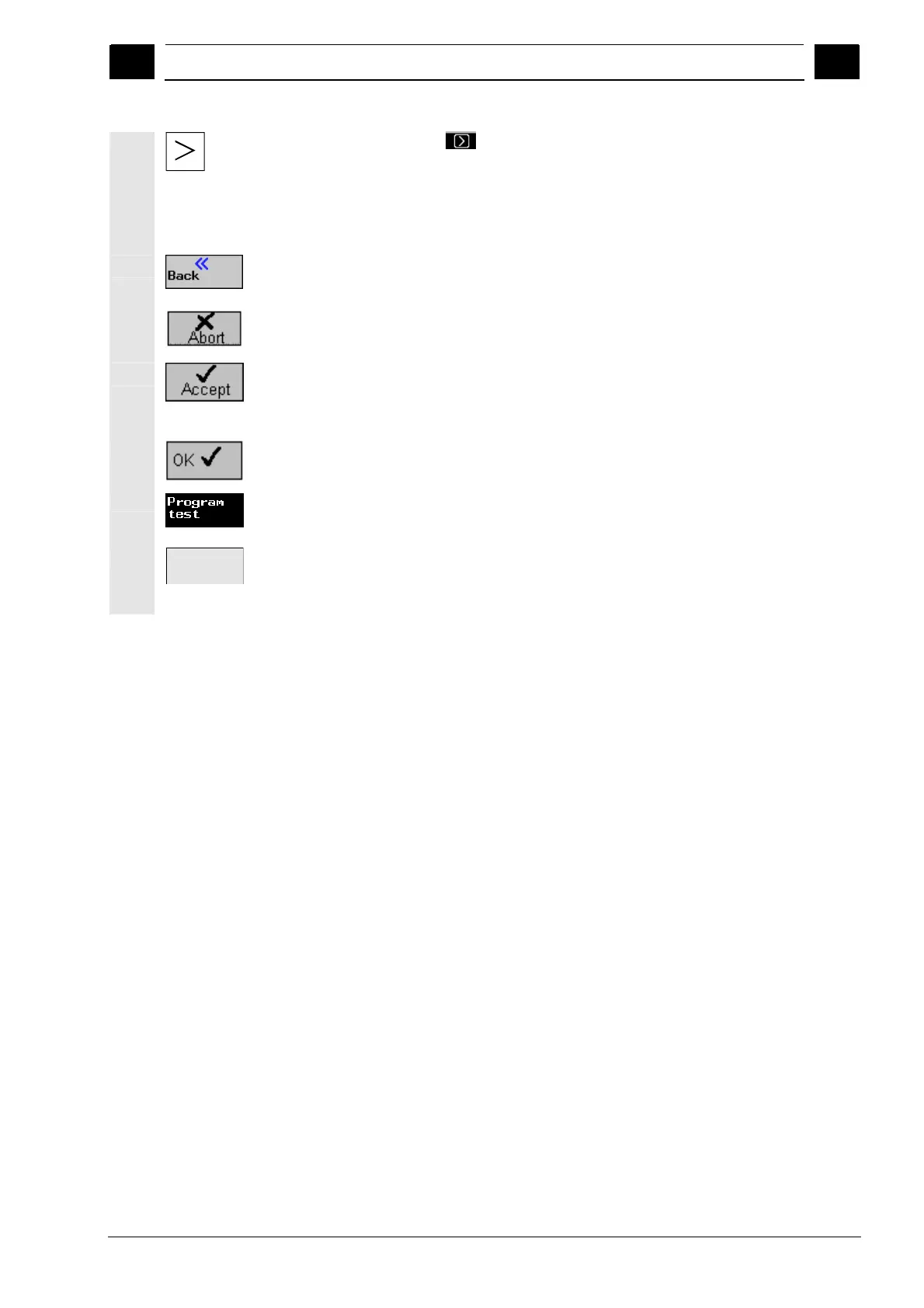

When the
symbol appears to the right of the dialog line on the
operator interface, you can change the horizontal softkey bar within an
operating area. This is done by pressing the "Expansion" key.
Pressing the "Expansion" key again will take you back to the original
horizontal softkey bar.
Within an operating mode or operating area, you can use the "Back"
softkey to return to the next highest screen form.
Use the "Abort" softkey to exit a screen form without accepting the
entered values and return to the next highest screen form.
When you have entered all the necessary parameters in the
parameterization screen form correctly, you can close the screen form
and save the parameters using the "Accept" softkey.
Use the "OK" softkey to initiate an action immediately, e.g. to rename
or delete a program.
On
Some softkeys are displayed with a black background when you
activate the function assigned to them.
Program
test
Off
In that case, you can deactivate the function by pressing the softkey
again. The softkey will then have a gray background again.
