6.15.6 Changing the view
6.15.6.1 Enlarging or reducing the graphical representation
Precondition
● The mold making view has been started.
● The "Graphic" softkey is active.
Procedure
...

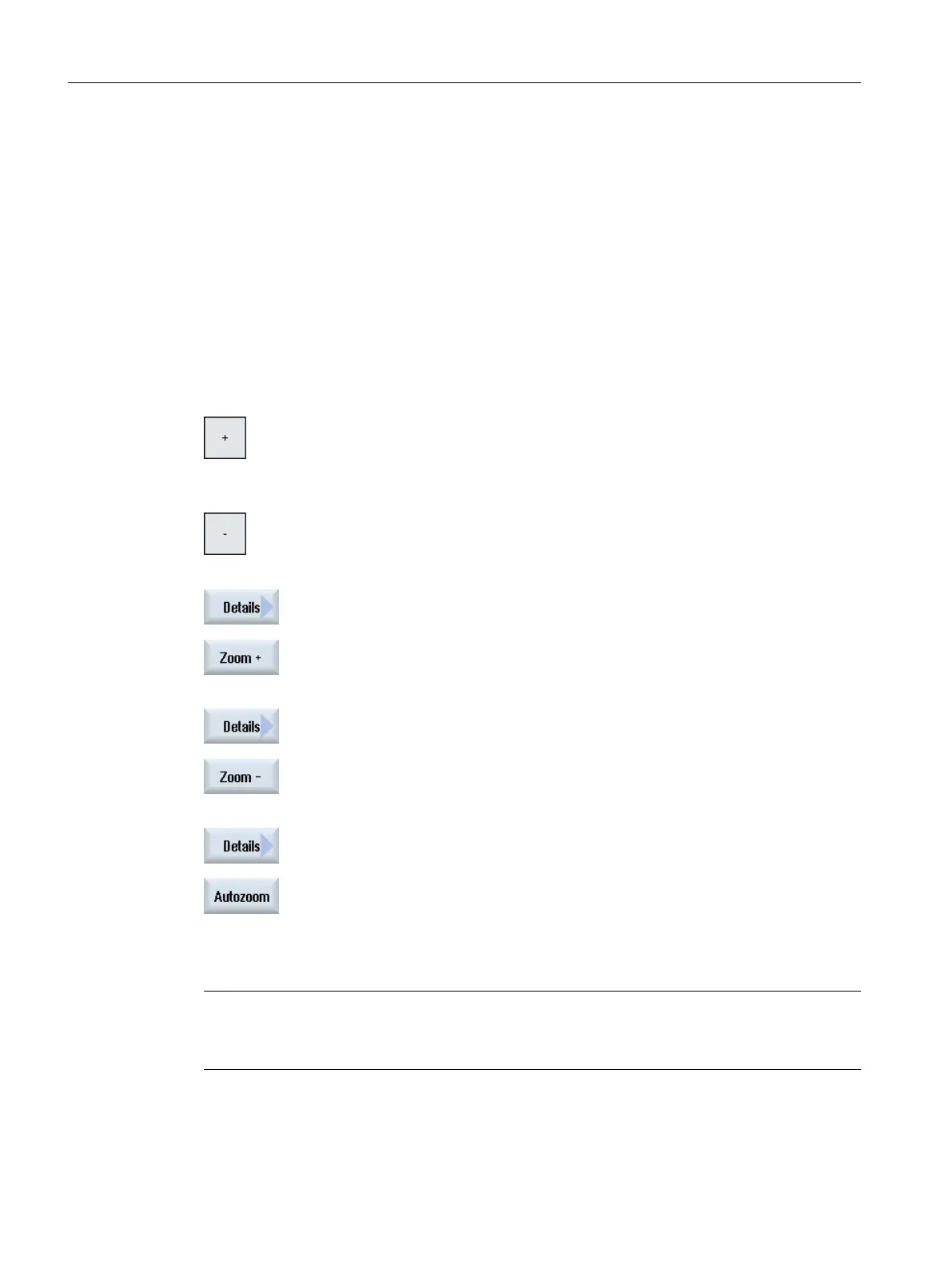

1. Press the <+> and <-> keys if you wish to enlarge or reduce the graphic
display.
The graphic display enlarged or reduced from the center.
- OR -
Press the "Details" and "Zoom +" softkeys if you wish to increase the size
of the segment.
- OR -
Press the "Details" and "Zoom -" softkeys if you wish to decrease the size
of the segment.
- OR -
Press the "Details" and "Auto zoom" softkeys if you wish to automatically
adapt the segment to the size of the window.
The automatic scaling function "Fit to size" takes account of the largest
expansion of the workpiece in the individual axes.
Note
Selected section
The selected sections and size changes are kept as long as the program is selected.
Machining the workpiece
6.15 Mold making view
Milling
262 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
