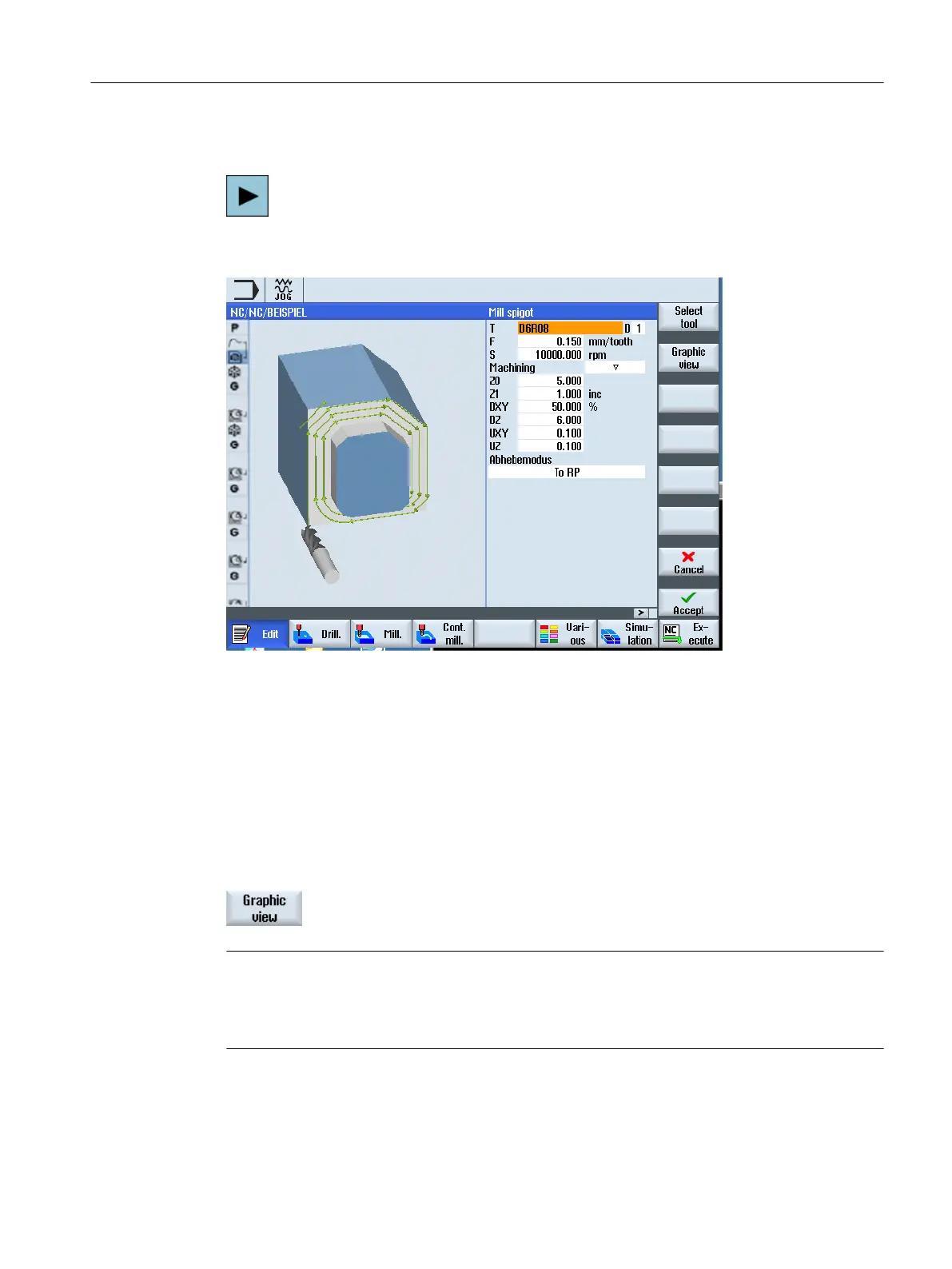

Parameter screen with help display
Press the <Cursor right> key to open a selected program block or
cycle in the work plan.
The associated parameter screen with help screen is then dis‐
played.
Figure 9-3 Parameter screen with help display
The animated help displays are always displayed with the correct orientation to the selected
coordinate system. The parameters are dynamically displayed in the graphic. The selected
parameter is displayed highlighted in the graphic.
The colored symbols
Red arrow = tool traverses in rapid traverse
Green arrow = tool traverses with the machining feedrate
Parameter screen with graphic view
Press the "Graphic view" softkey to toggle between the help screen and
the graphic view in the screen.
Note
Switching between the help screen and the graphic view
The key combination <CTRL> + <G> is also available for the switchover between the help
screen and the graphic view.
Creating a ShopMill program
9.1 Program views
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 321
