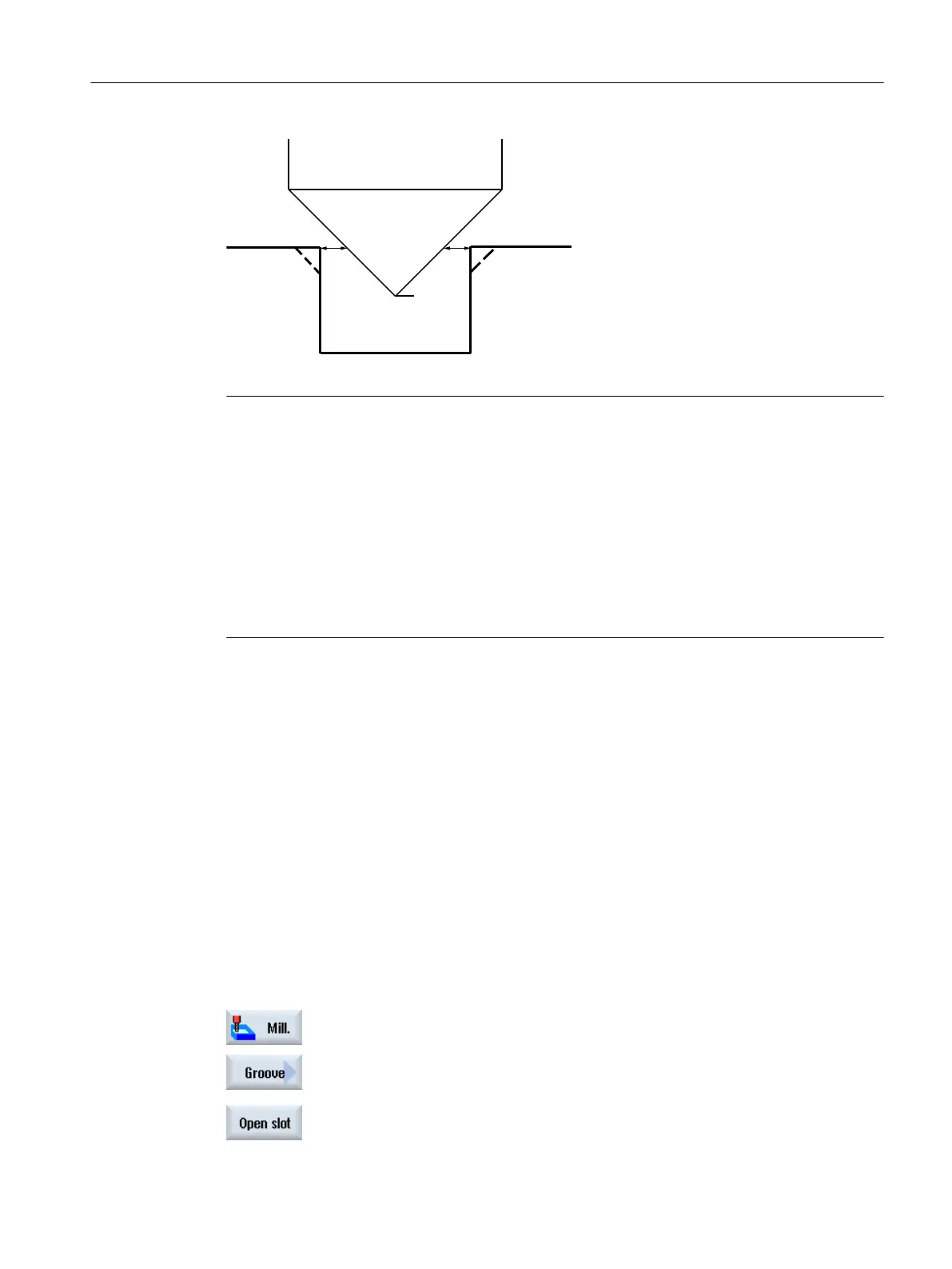

Figure 10-8 Geometries when chamfering inside contours
Note
The following error messages can occur when chamfering inside contours:
● Safety clearance in the program header too large
This error message appears when chamfering would, in principle, be possible with the
parameters entered for FS and ZFS, but the safety clearance then could not be maintained.
● Immersion depth too large
This error message appears when chamfering would be possible through the reduction of
the immersion depth ZFS.
● Tool diameter too large
This error message appears when the tool would already damage the edges during
insertion. In this case, the chamfer FS must be reduced.
Additional supplementary conditions
● Finishing
1/2 slot width W ≤ milling cutter diameter
● Edge finishing
Finishing allowance UXY ≤ milling cutter diameter
● Chamfering
The tip angle must be entered into the tool table.
Procedure
1. The part program or ShopMill program to be processed has been created
and you are in the editor.
2. Press the "Milling" softkey.
3. Press the "Slot" and "Open slot" softkeys.
The "Open slot" input window opens.
Programming technological functions (cycles)
10.2 Milling
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 465
