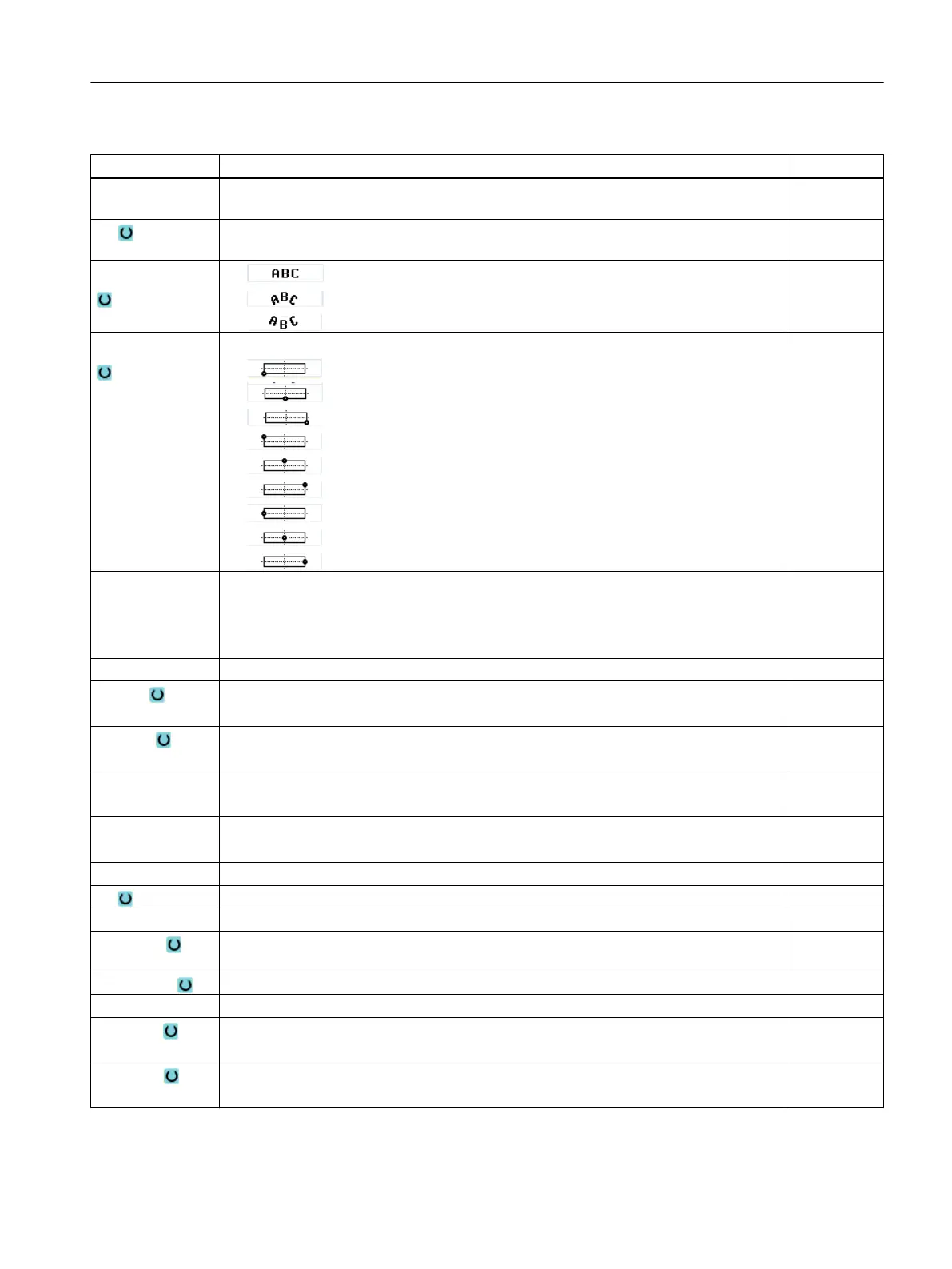

Parameter Description Unit
FZ
(only for G code)
Depth infeed rate *
FZ
(only for ShopMill)
Depth infeed rate mm/min
mm/tooth
Alignment
● (linear alignment)
● (curved alignment)
● (curved alignment)
Reference point Position of the reference point
● bottom left
● bottom center
● bottom right
● top left
● top center
● top right
● left-hand edge
● center
● right-hand edge
Mirror writing
● Yes
The mirrored text is engraved on the workpiece.
● No
The text is engraved on the workpiece without mirroring.
Engraving text maximum 100 characters
X0 or R Reference point X (abs) or reference point length polar
– (in ShopMill for curved alignment only)
mm
Y0 or α0 Reference point Y (abs) or reference point angle polar
– (in ShopMill for curved alignment only)
mm or de‐
grees
X0 Reference point Y (abs)
(for linear alignment only)
mm
Y0 Reference point Y (abs)
(for linear alignment only)
mm
Z0 Reference point Z (abs) mm
Z1 Engraving depth (abs) or depth referred to Z0 (inc) mm
W Character height mm
DX1 or α2 Distance between characters or angle of opening – (for curved alignment only) mm or de‐
grees
DX1 or DX2 Distance between characters or total width – (for linear alignment only) mm
α1 Text direction (for linear alignment only) Degrees
XM or LM
(only for G code)
Center point X (abs) or center point length polar
– (for curved alignment only)
mm
YM or αM
(only for G code)
Center point Y (abs) or center point angle polar
– (for curved alignment only)
mm or de‐
grees
Programming technological functions (cycles)
10.2 Milling
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 479
