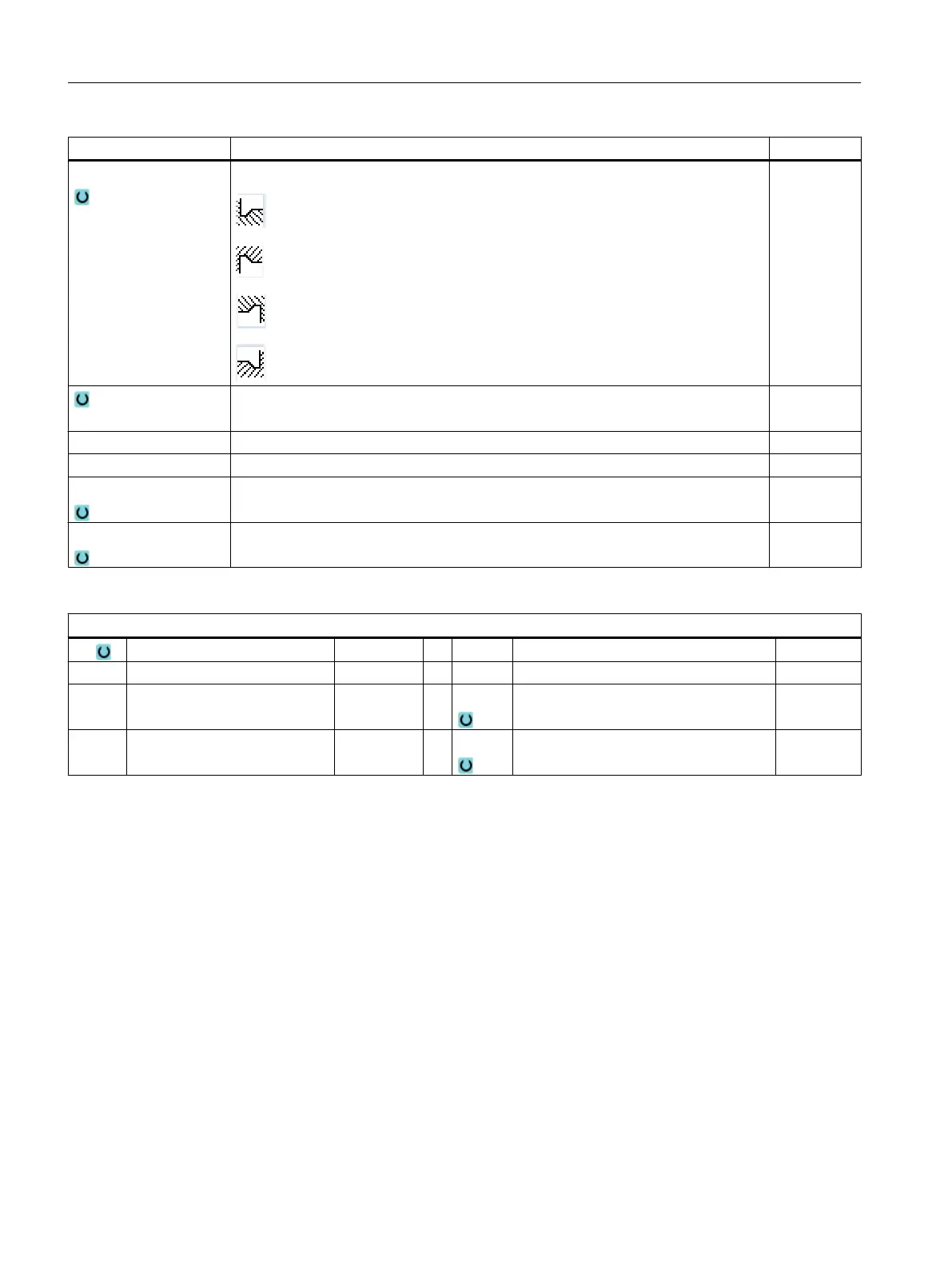

Parameter Description Unit
Position Form E machining position:
Undercut size according to DIN table:
E.g.: E1.0 x 0.4 (undercut form E)
X0 Reference point X ∅ mm
Z0 Reference point Z mm
X1 Allowance in X ∅ (abs) or allowance in X (inc) mm
UX Cross feed ∅ (abs) or cross feed (inc) mm
* Unit of feedrate as programmed before the cycle call
G code program (undercut, form F) parameters
PL Machining plane T Tool name
SC Safety clearance mm D Cutting edge number
F Feedrate * F Feedrate mm/min
mm/rev
S / V Spindle speed or
Constant cutting rate
rpm
m/min
Programming technological functions (cycles)
10.4 Turning - milling/turning machine
Milling
526 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
