Assembly and Installation Information
SIPART DR22/DR24
C79000-M7474-C38-01
19
6 Mechanical Installation
Relay module
6DR2804-8A/B
max.
40
8
238
278
72
144
130
435
223
138
+1
68
+0,7
72,5
+1
b
≥145
Number of Cut-out
instruments width b
2 140 +1
3 212 +1
4 284 +1
:
:
:
10 716 +1

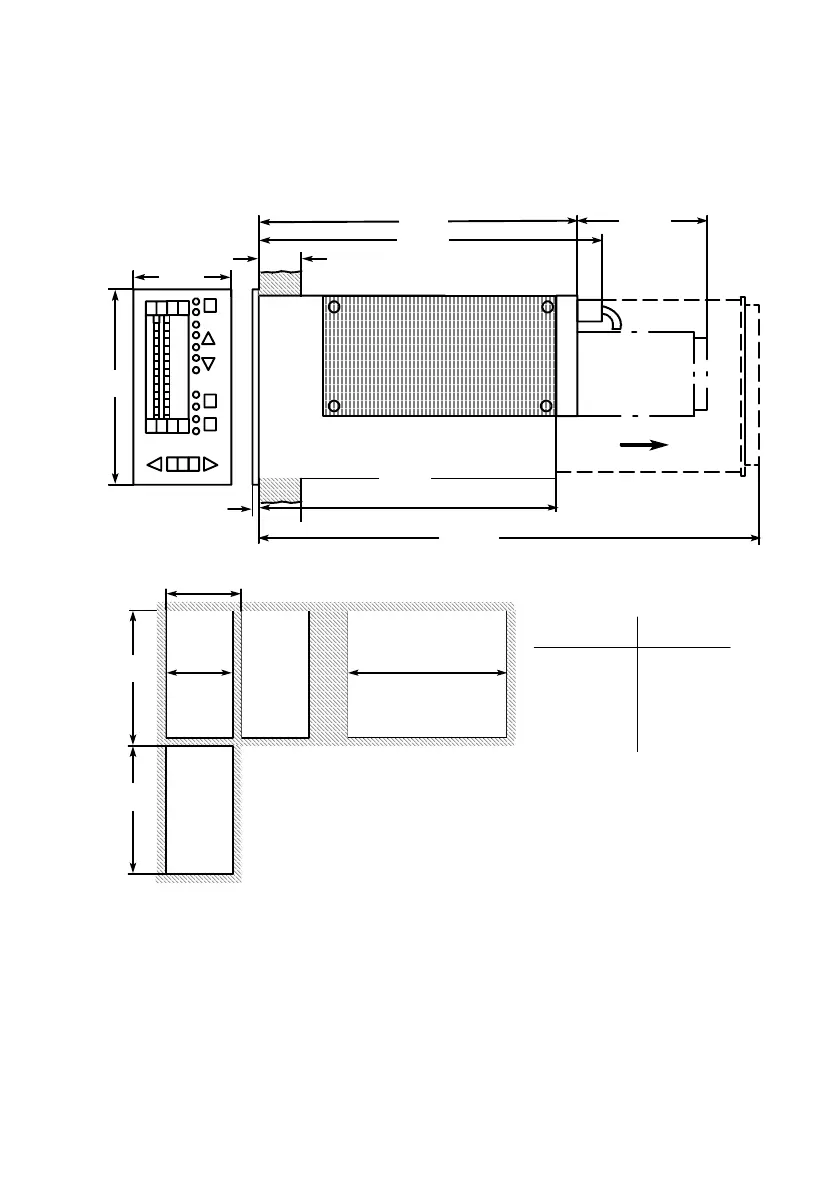

Figure 5 Dimensions and panel opening
Procedure:
1. Push the controller from the front into the prepared panel opening.
2. Click the two holding clamps into the openings provided on the top- and un-
derside of the controller.
3. Tighten the threaded rods in the clamps until the controller is secured in the
panel.
