Assembly and Installation Information
SIPART DR22/DR24
C79000-M7474-C38-01
23
7.4 Connect Device to the Supply Voltage
D 6DR2210 -5
6DR2410-5 (A C230 V/115 V )
Power supply connector IEC 320 IV
DIN 49457A
per device T1A
L NPE
230 115
~
=
+24V
+5V
U
REF
Other users on the
same
circuit; i ncrease
fuse power s lightly
Alternativ
6DR2210-5
6DR2410-5
115 or 230 V A C
L
N
PE

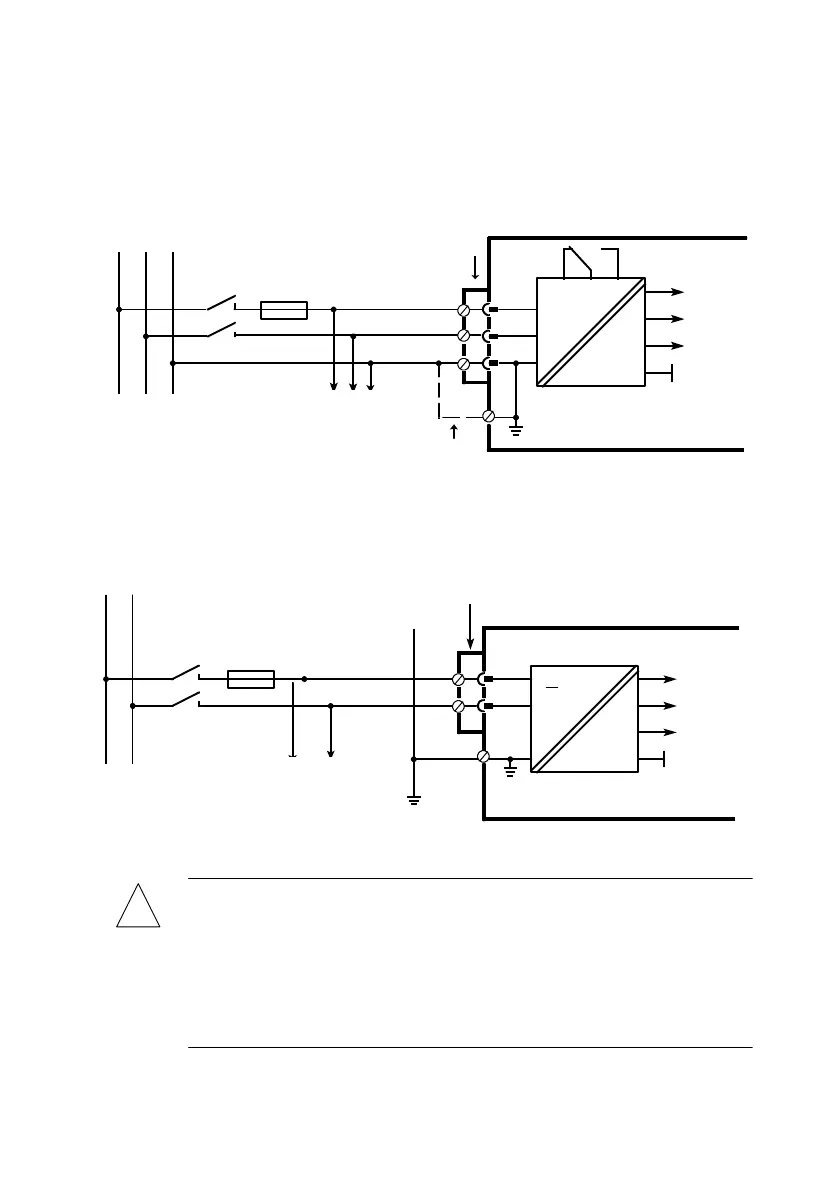

Figure 8 Wiring of the auxiliary power supply 230 V/115 V
D 6DR2210 -4
6DR2410-4 (UC 24 V)
Double-pole speci al plug;
any polarity
6DR2210-4
6DR2410-4
24 V UC
+24V
+5V
U
REF
Other users on the
same
circuit; i ncrease
fuse power s lightly
per device T3,15A
=
~
Figure 9 Wiring of the auxiliary power supply 24 V
!
W ARNING
To guarantee high electromagnetic compatibility (EMC), the ground
conductor screw (grounding screw 8, Figure 2) must be c onnected
to the ground of the equipment (cupboard, grounding rails).
This connection must also be low-ohm for high frequencies (Cu
band or HF litz wire, at least 2.5 mm
2
).
