Siemens Siprotec 5 7SS85 User Manual

Operate Curves and Dropout-Time Characteristic Curves according to IEC
Extension of the operate time during operation with
transformer inrush-current detection
Approx. 10 ms
[dwocpki1-080213-01.tif, 1, en_US]

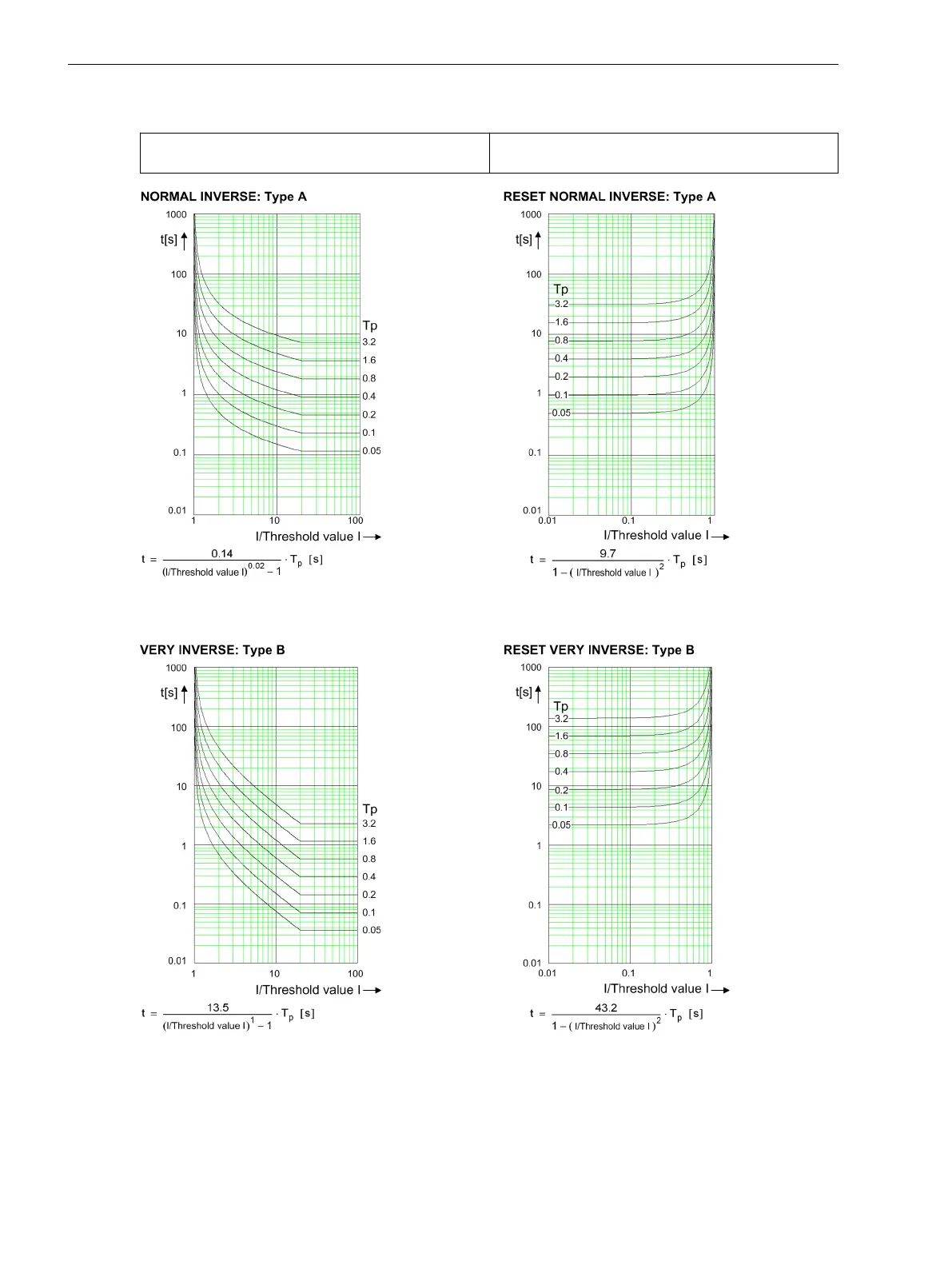

Figure 11-1
Operate Curves and Dropout-Time Characteristic Curves According to IEC
Technical Data
11.15 Overcurrent Protection, Phases
930 SIPROTEC 5, Low-Impedance Busbar Protection, Manual
C53000-G5040-C019-C, Edition 04.2021
