[dw_iec-short-inverse, 1, en_US]

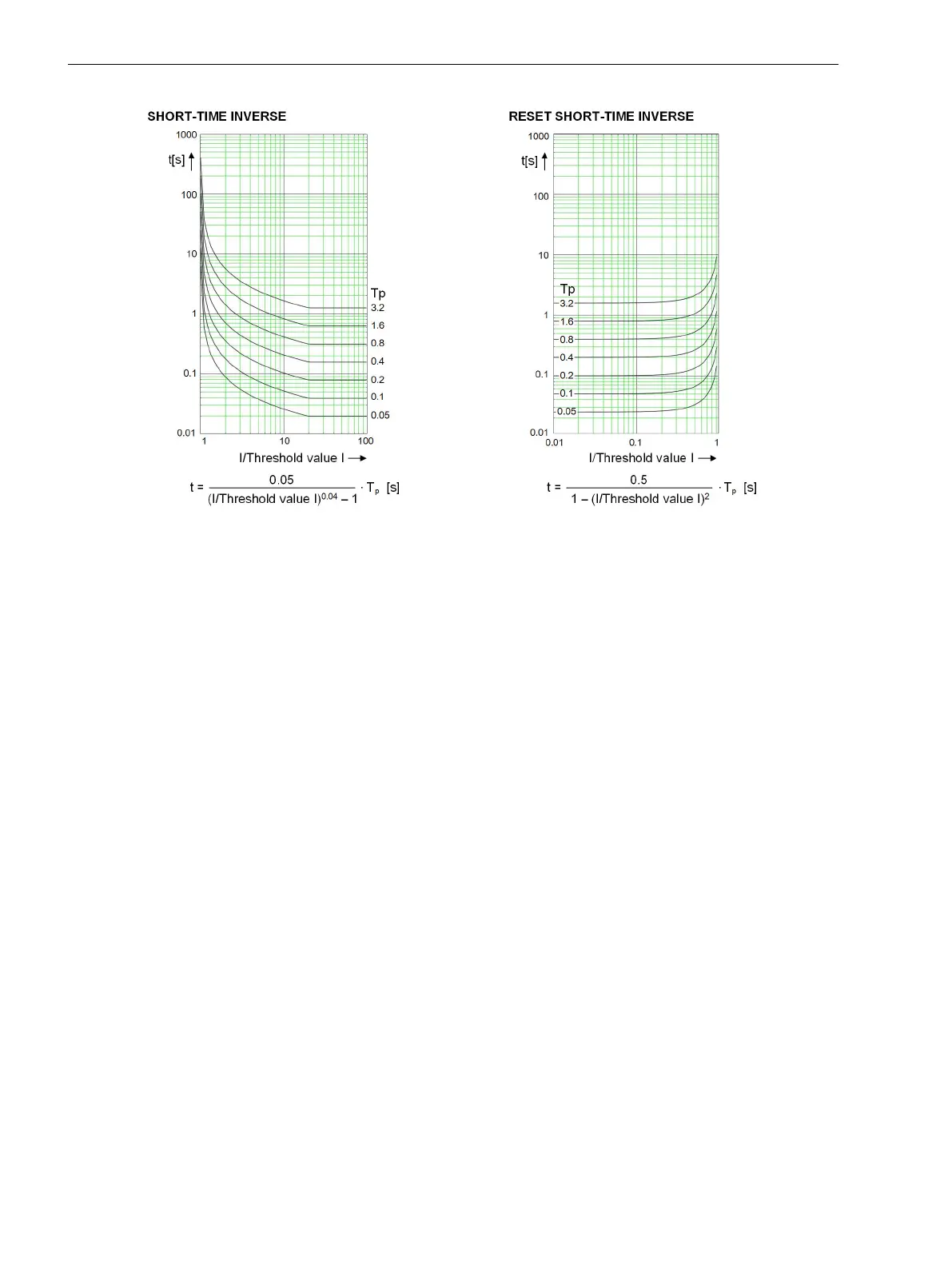

Figure 11-3
Operate Curves and Dropout-Time Characteristic Curves According to IEC (Advanced Stage)
Technical Data
11.15 Overcurrent Protection, Phases
932 SIPROTEC 5, Low-Impedance Busbar Protection, Manual
C53000-G5040-C019-C, Edition 04.2021
