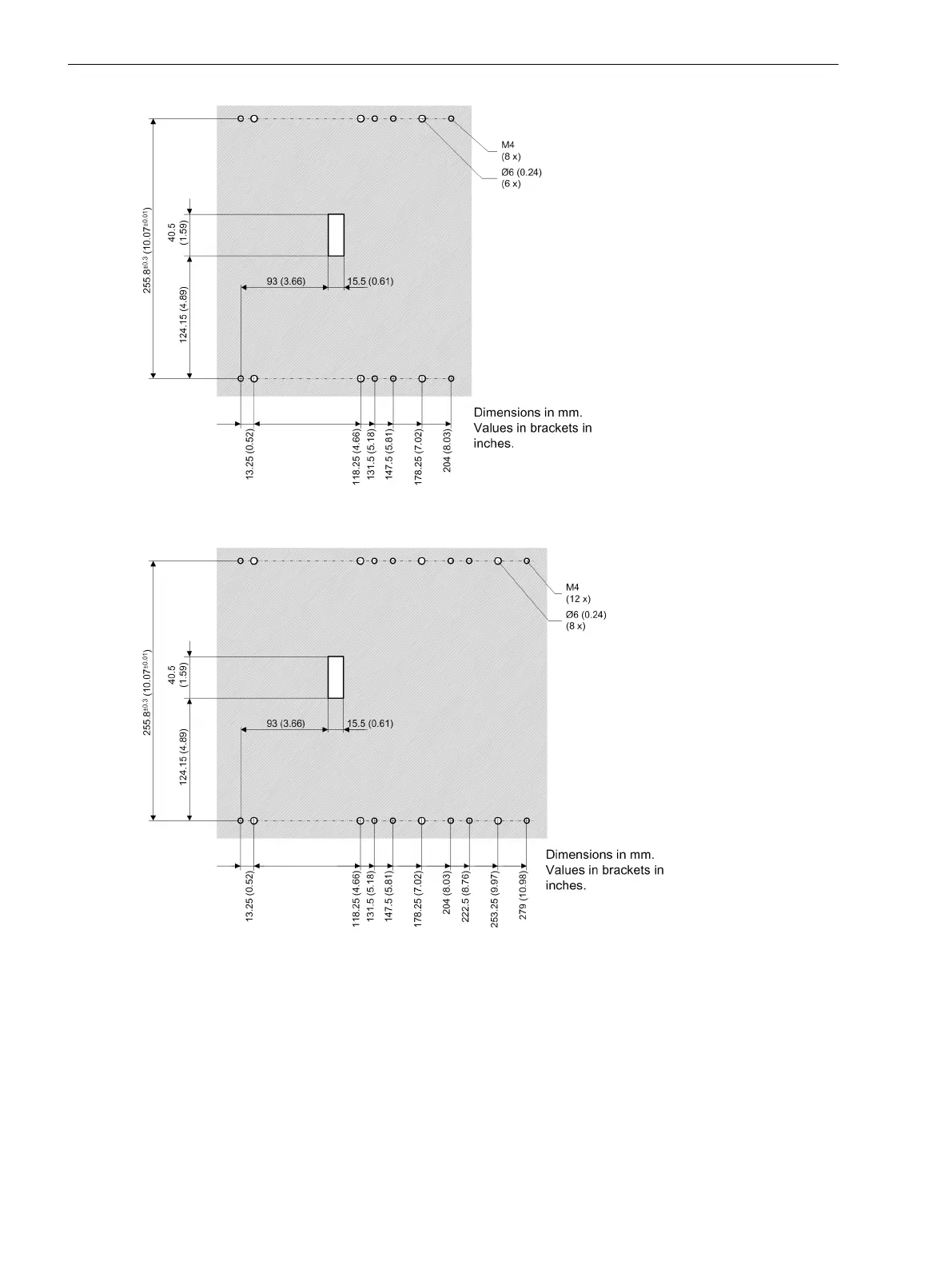

Figure 6-28 Drilling Pattern of the On-Site Operation Panel of the 1/2 Device
[dw_z1_osop_2-3, 1, en_US]
Figure 6-29 Drilling Pattern of the On-Site Operation Panel of the 2/3 Device
Technical Data
6.14 Assembly Dimensions
