[dw_z1_osop_5-6, 1, en_US]

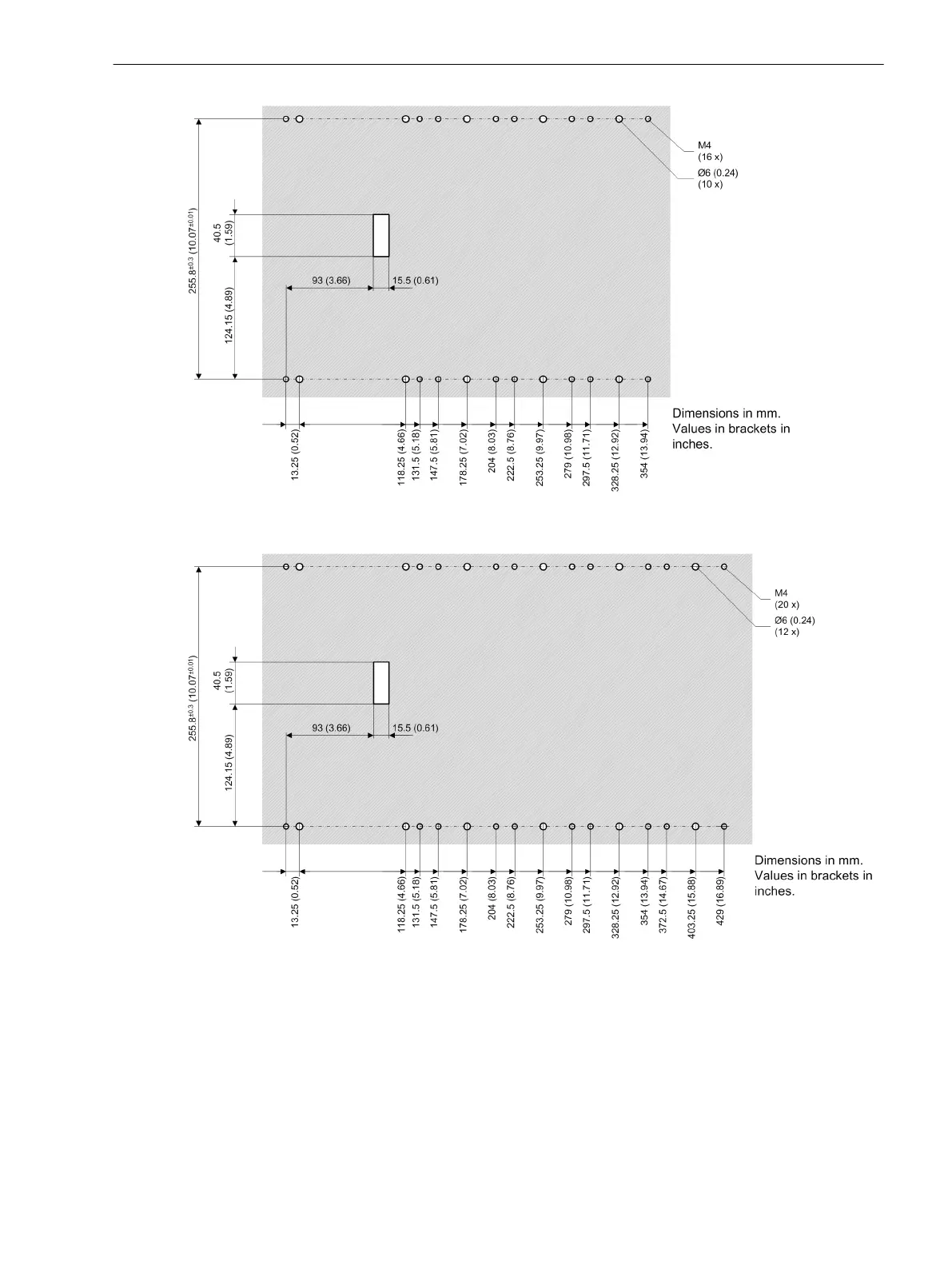

Figure 6-30 Drilling Pattern of the On-Site Operation Panel of the 5/6 Device
[dw_z1_osop_1-1, 1, en_US]
Figure 6-31 Drilling Pattern of the On-Site Operation Panel of the 1/1 Device
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 251
C53000-G5040-C002-F, Edition 06.2019
