Siemens SIPROTEC 7SS523 V3.3

Control During Operation
236
7SS52 V4 Manual
C53000-G1176-C182-3

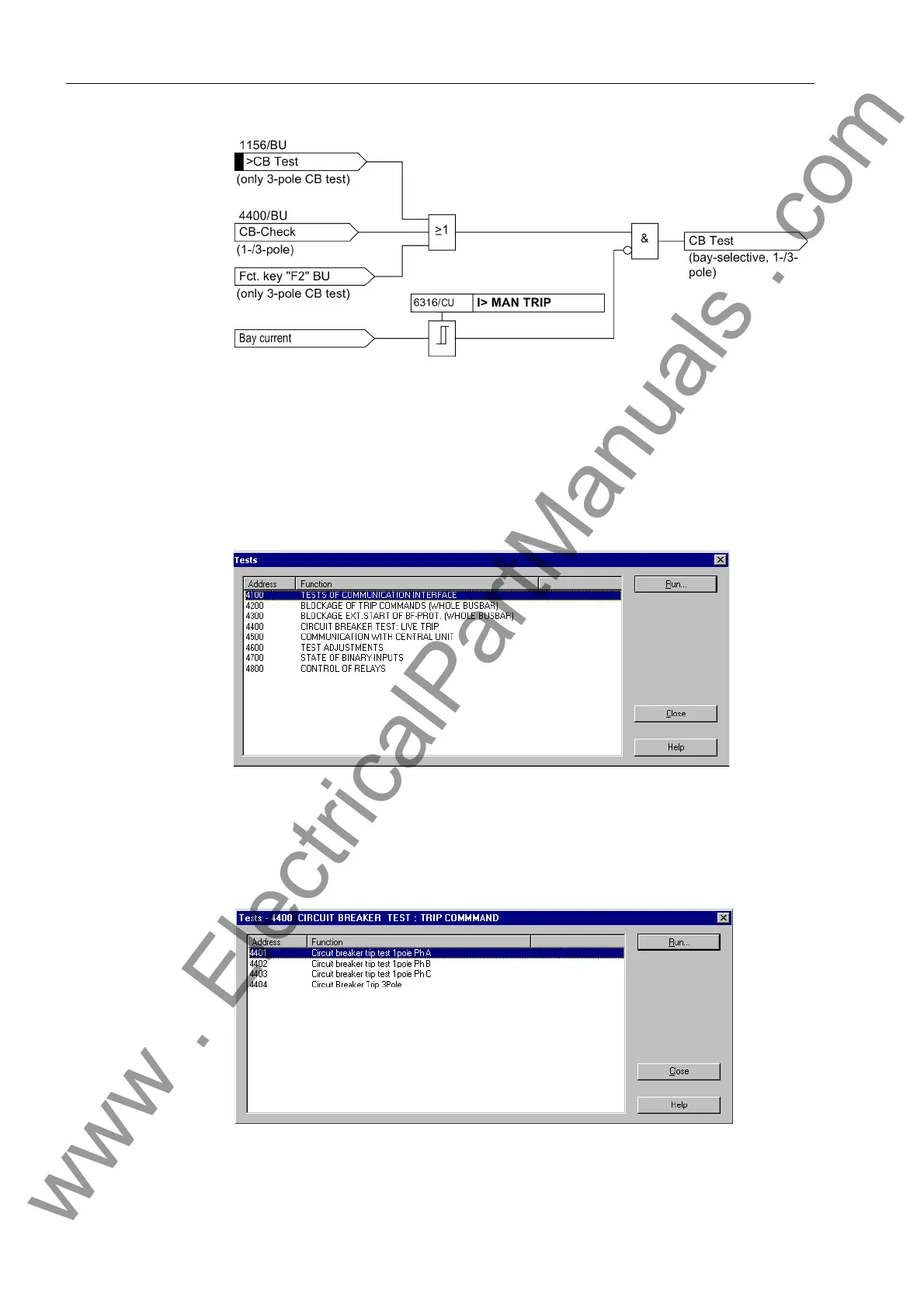

Figure 6-21 Trip test including circuit breaker
from the PC
with DIGSI
To perform the circuit breaker test with a bay unit (PC linked to central unit or bay unit)
proceed as follows:
 Open the corresponding bay unit in DIGSI Manager.
 Click Test in the navigation window and select the entry Test in the function selec-
tion. The Tests window opens.
Figure 6-22 Tests window in DIGSI
 Click the entry CIRCUIT BREAKER TEST : TRIP COMMAND and click Run...
The window 4400 CIRCUIT BREAKER TEST : TRIP COMMAND opens.
Figure 6-23 Window 4400 CIRCUIT BREAKER TEST : TRIP COMMAND in DIGSI

