Commissioning
265
7SS52 V4 Manual
C53000-G1176-C182-3
7.3.2.2 Functions

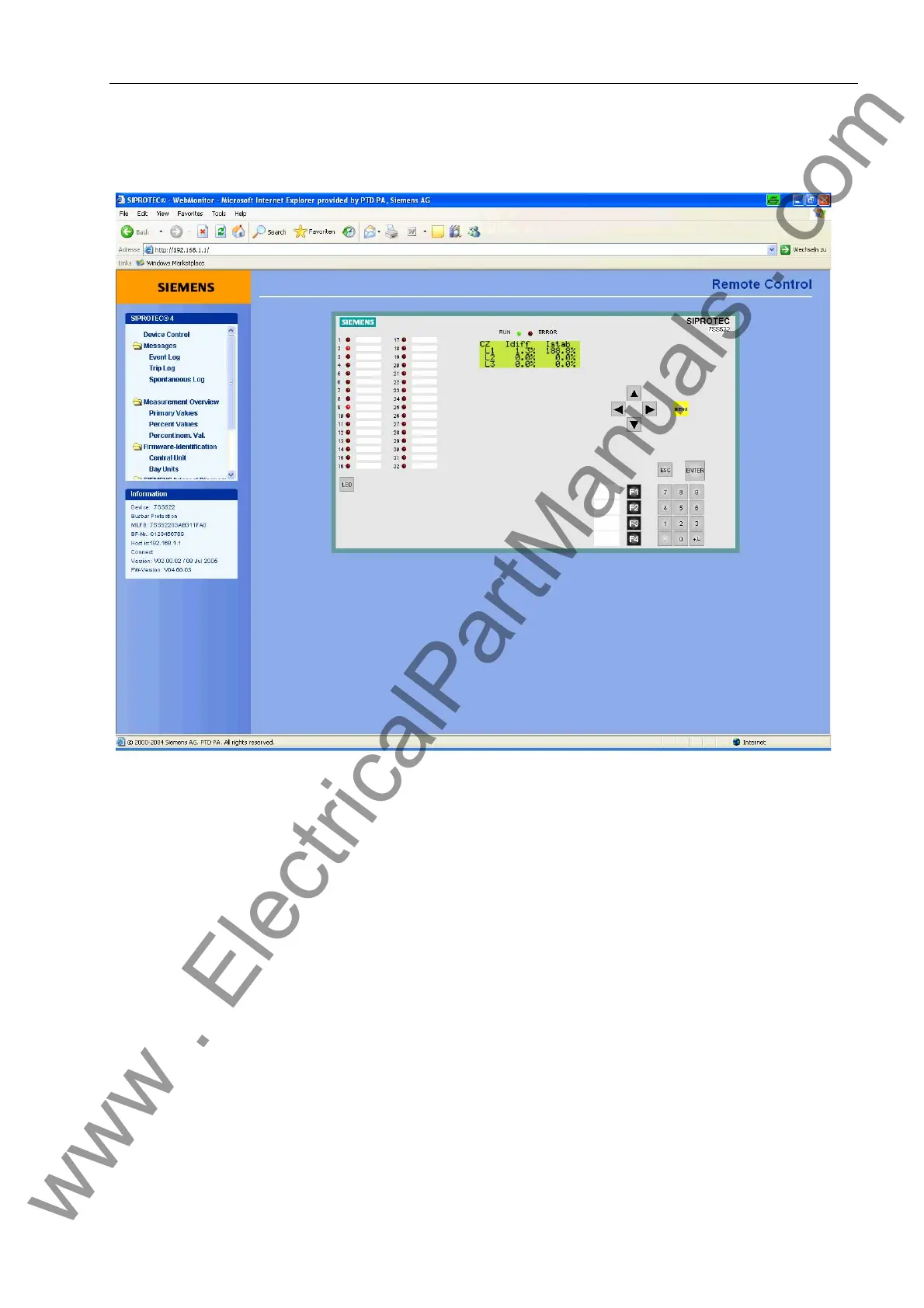

Figure 7-3 Web-monitor - Basic display
The above figure of the device operation view shows a device with its control
(keyboard) and display elements (display, LEDs, inscriptions). The device can be
operated with the keys shown in the display in the same way as with the sealed
keypad on the device.
