PROFIBUS Communication modules
13
SIPROTEC PROFIBUS-DP - Communication profile
C53000-L1840-B001-03

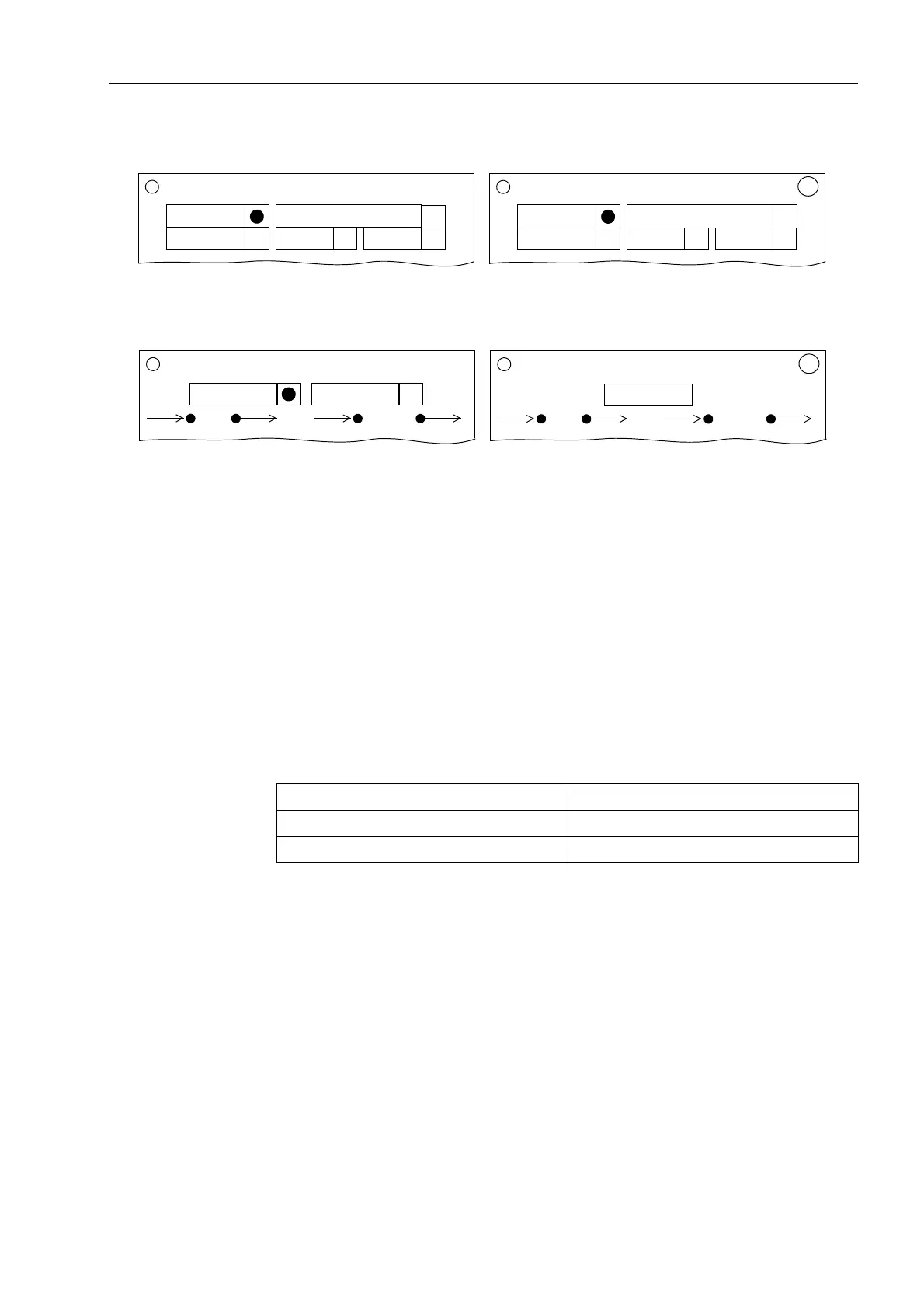

Figure 1-1 HW revisions of the communication modules, labelling of the mounting brackets
General details about the assembly of communication modules as well as the setting
of the terminating resistors on the PSE modules you find in the SIPROTEC4 System
Manual (ref. to page 3).
1.1.3 Compatibility of the communication module hardware with PROFIBUS-DP
firmware versions and mapping files
Hardware and
firmware
Please note the following listed compatibility between the hardware revisions of the
communication modules and the PROFIBUS-DP firmware versions:
The PROFIBUS-DP firmware for communication modules from HW revision 4 is:
• function compatible with firmware versions for modules up to HW revision 3
(i.e. contains all there contained functionalities),
• offers additional functionalities, e.g.:
• display of module-specific information at the device (ref. to chap. 1.2),
• OLM V3 compatibility mode with fibre-optical modules (ref to chap. 2.1.2).
P-Slave
AME
RS232-LWL
RS232 RS485
Profibus
AME
RS232-LWL
RS232 RS485
PROFIBUS RS485 (PSE module)
PROFIBUS fibre-optical, double loop (PSO module)
up to HW revision 3
from HW revision 4
up to HW revision 3
from HW revision 4
P-Slave
P-Master
Ch1
Ch2
Profibus
Ch1
Ch2
Hardware revision Firmware version to be used
up to HW revision 3 up to PROFIBUS-DP firmware V03
from HW revision 4 from PROFIBUS-DP firmware V04
Table 1-1 Hardware revisions and firmware versions
