PROFIBUS-DP - Parameterization in DIGSI
61
SIPROTEC PROFIBUS-DP - Communication profile
C53000-L1840-B001-03
Mapping file The mapping file selection is available in the dialog window Other protocols which
is opened by pressing the button “Set ...” in the property sheet Communications
Modules (ref. to Figure 4-1).

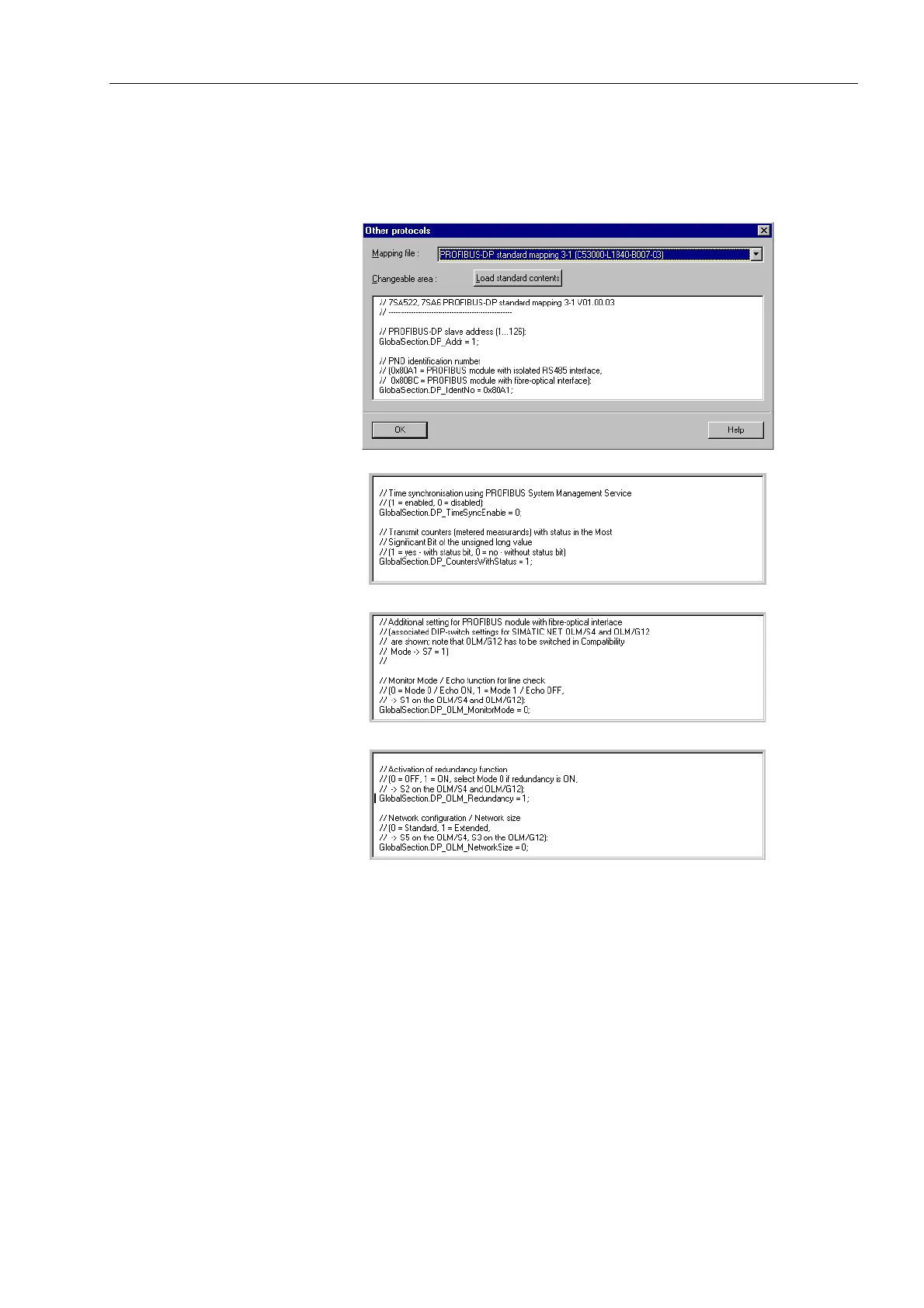

Figure 4-2 DIGSI 4.21: Mapping file selection and bus specific parameters
The list box “Mapping file:” includes all available PROFIBUS-DP mapping files for the
respective SIPROTEC device type with their name and a reference to the associated
bus mapping documentation (order numbers, ref. to page 3).
In the edit area “Changeable area:” bus specific parameters can be changed.
Please refer to chap. 2.1 for a description of these parameters.
The button “Load standard contents” restores the default values of the bus specific
parameters.
