Dimensional diagrams of Motor Modules
Instruction for installation of the liquid-cooled chassis of Sinamics S120 power units into cabinets for marine drive applications,
12/2016, 4BS0808-003
15
7 Dimensional diagrams of Motor Modules
The here-following tables include the dimensional diagrams of the Motor Modules of
sizes FXL, GXL, HXL and JXL. Therefrom, also the position of the fastening holes can
be taken. More, and more detailed information will be found in the relevant equipment
manual Sinamics S120 Power units / Chassis / Liquid-cooled.

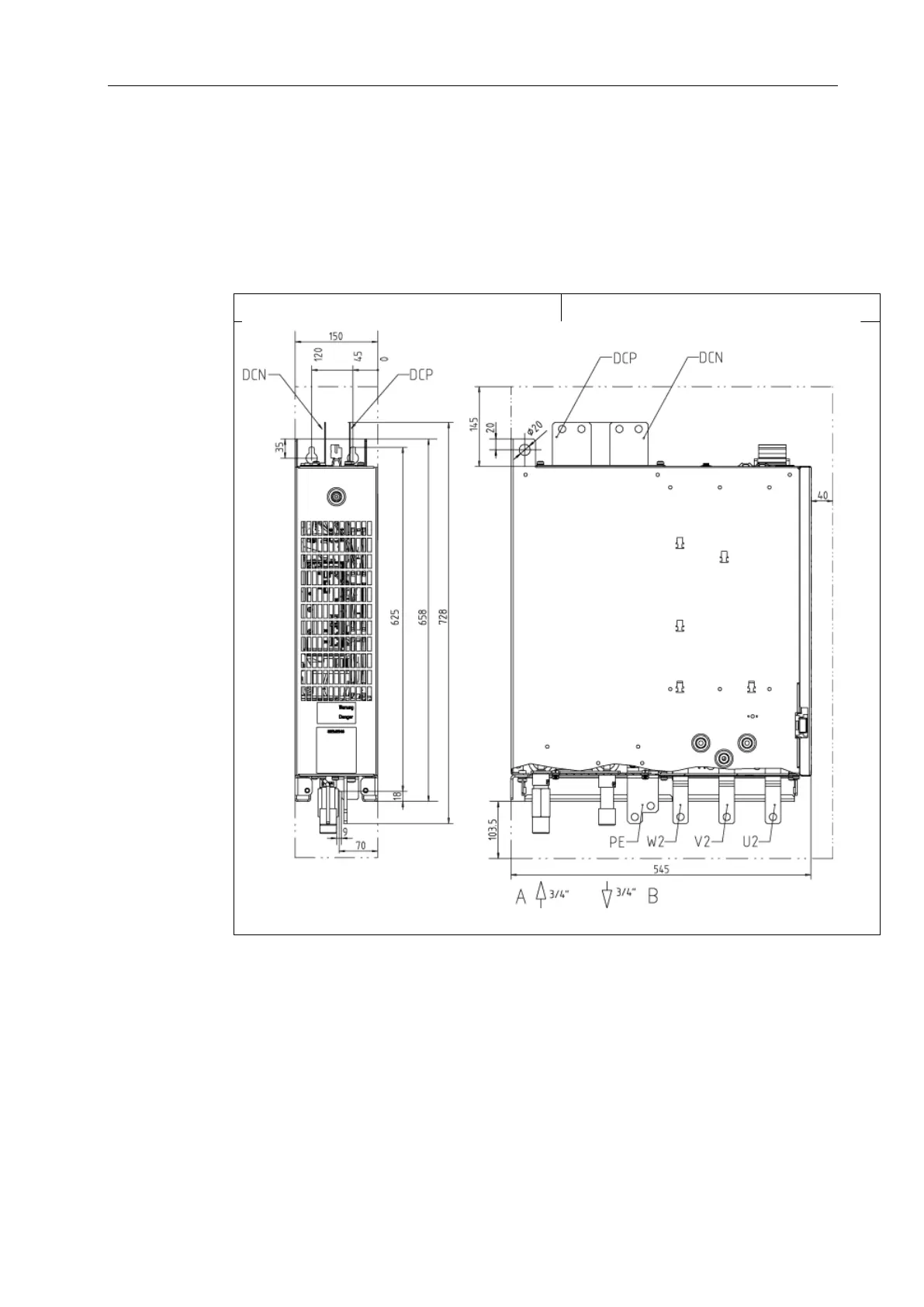

Table 2: Dimensional diagram of Motor Module, Size FXL
The ventilation clearances to be observed are characterized by the dotted line.
