Dimensional diagrams of Active Interface Modules
Instruction for installation of the liquid-cooled chassis of Sinamics S120 power units into cabinets for marine drive applications,
12/2016, 4BS0808-003
27
10 Dimensional diagrams of Active Interface Modules
The Active Interface Module consists of two components, i.e. of the filter choke and
the filter module. Table 15 shows the dimensional diagram of the filtwer choke of size
JIL. From the dimensional diagrams also the position of the fixing holes can be taken.
More, and more detailed information will be found in the relevant equipment manual
Sinamics S120 Power units / Chassis / Liquid-cooled.

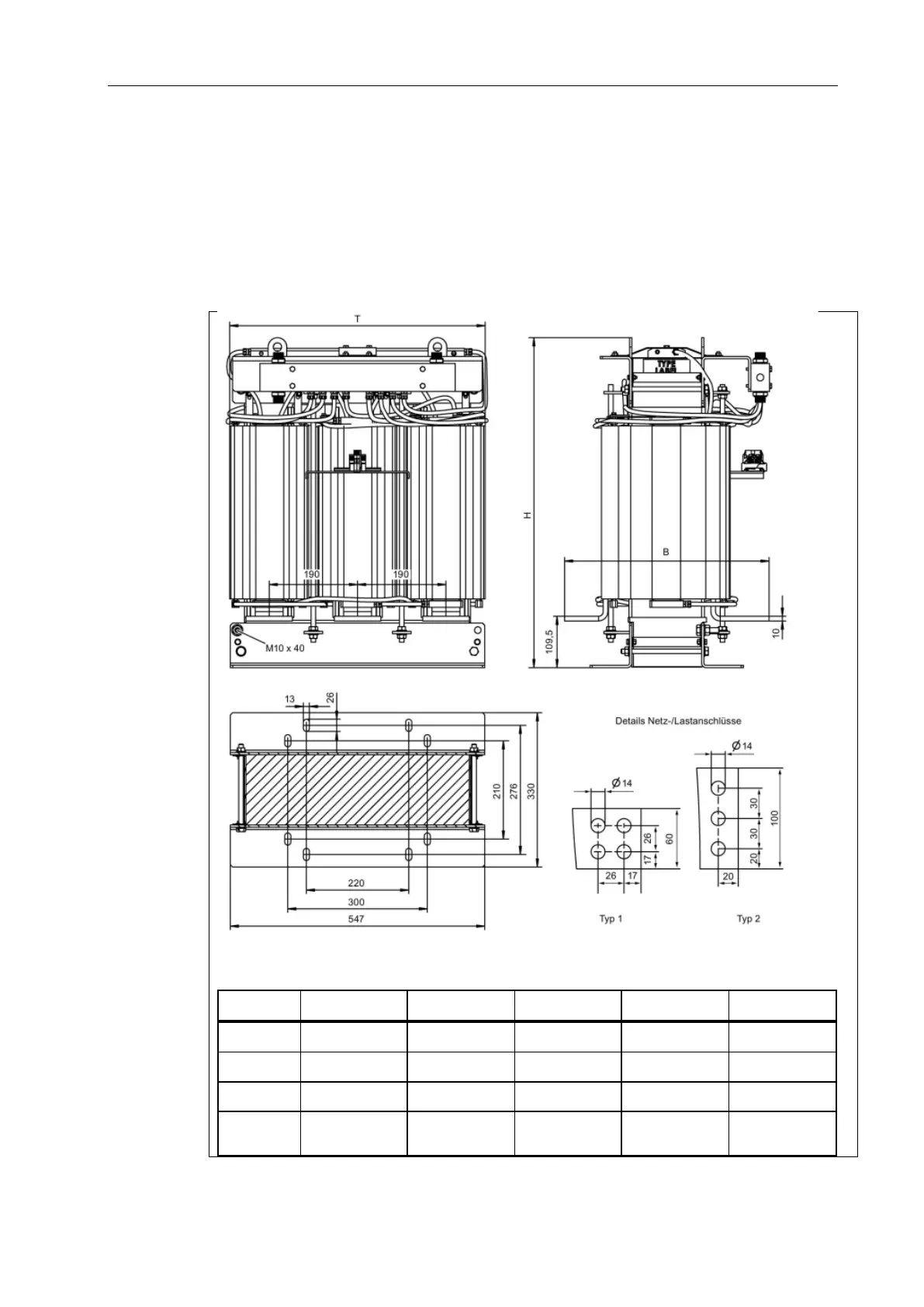

Table 15: Dimensional diagram of the filter choke of the Active Interface Module Size JIL
Dimensions of filter chokes (in mm)
B 349 382 358 440 440
H 700 698 675 705 705
T <575 <575 <575 <575 <575
Type of
connection
Type 1 Type 1 Type 1 Type 2 Type 2
