Description, device design, dimension drawing
2.1 Device description
SITOP UPS1600 / BAT1600 / UPS1100
Equipment Manual, 07.2021, A5E37775406-11-76
25
2.1.3 SITOP UPS1100
The SITOP UPS1100 battery modules consist of a battery holder with two maintenance-free,
sealed lead-gel or LiFePO4 batteries with terminals for the connecting cables to the SITOP
UPS1600 uninterruptible power supply. The SITOP UPS1100 includes a printed-circuit board
for monitoring the battery functions and the communication with the SITOP UPS1600. A
green LED indicates that there is a communication connection to the SITOP UPS1600. The
LED flashes when the batteries are being replaced or for faults and alarms.
Ah SITOP UPS1100 battery module with LiFePO4 batteries can only be used in
conjunction with SITOP UPS1600 from software version V2.1 and higher.
Up to 6 SITOP UPS1100 of the same type can be connected in parallel with a SITOP UPS1600.
When replacing a battery, see Chapter Battery replacement SITOP UPS1100 (Page 226).
Fuses F1/F2 (F2 only for 7 Ah and 12 Ah)
Mounting rail holder (not for the 7 Ah and 12 Ah versions)

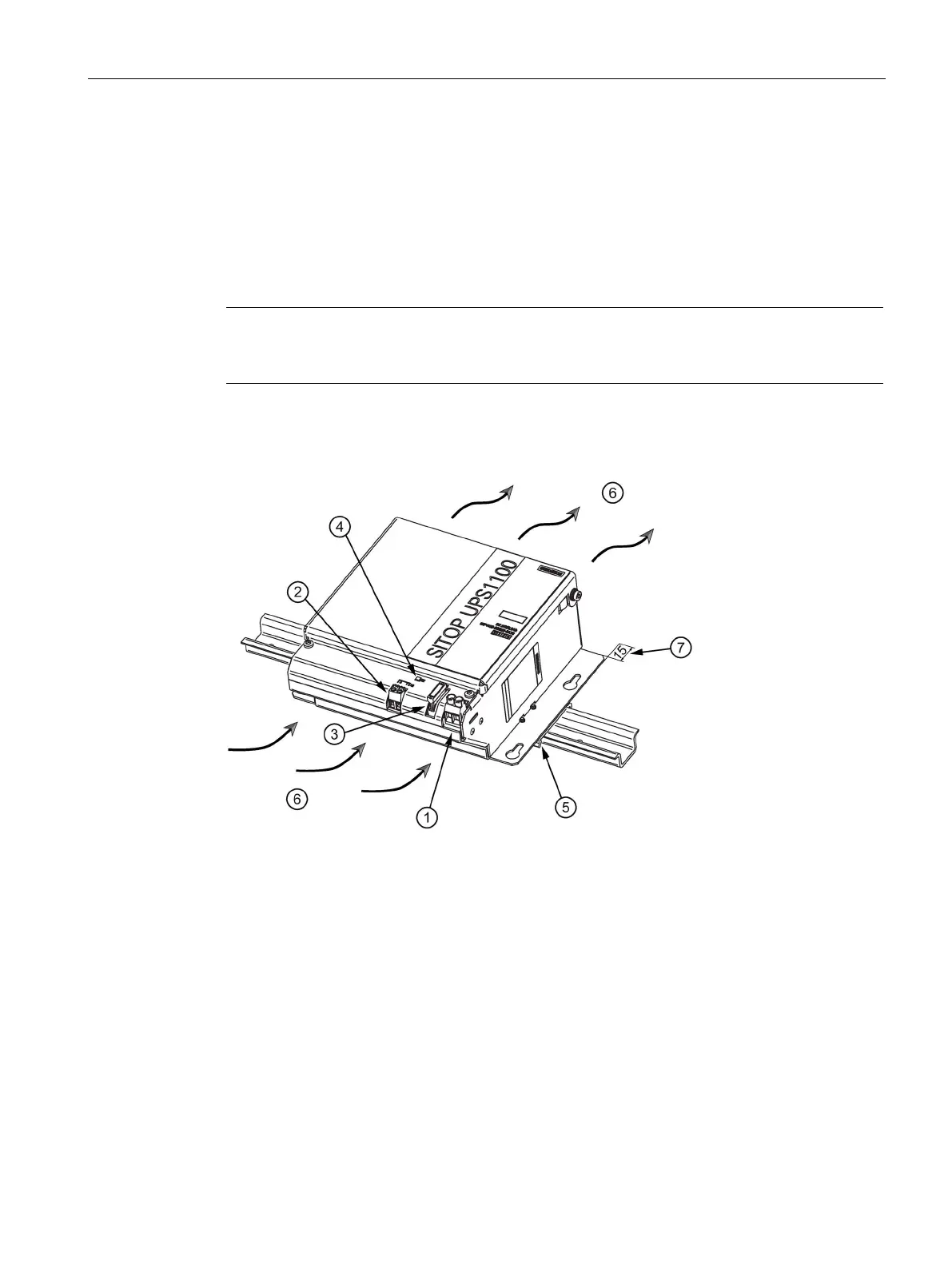

Figure 2-4 SITOP UPS1100 design (example 6EP4133-0GB00-0AY0)
