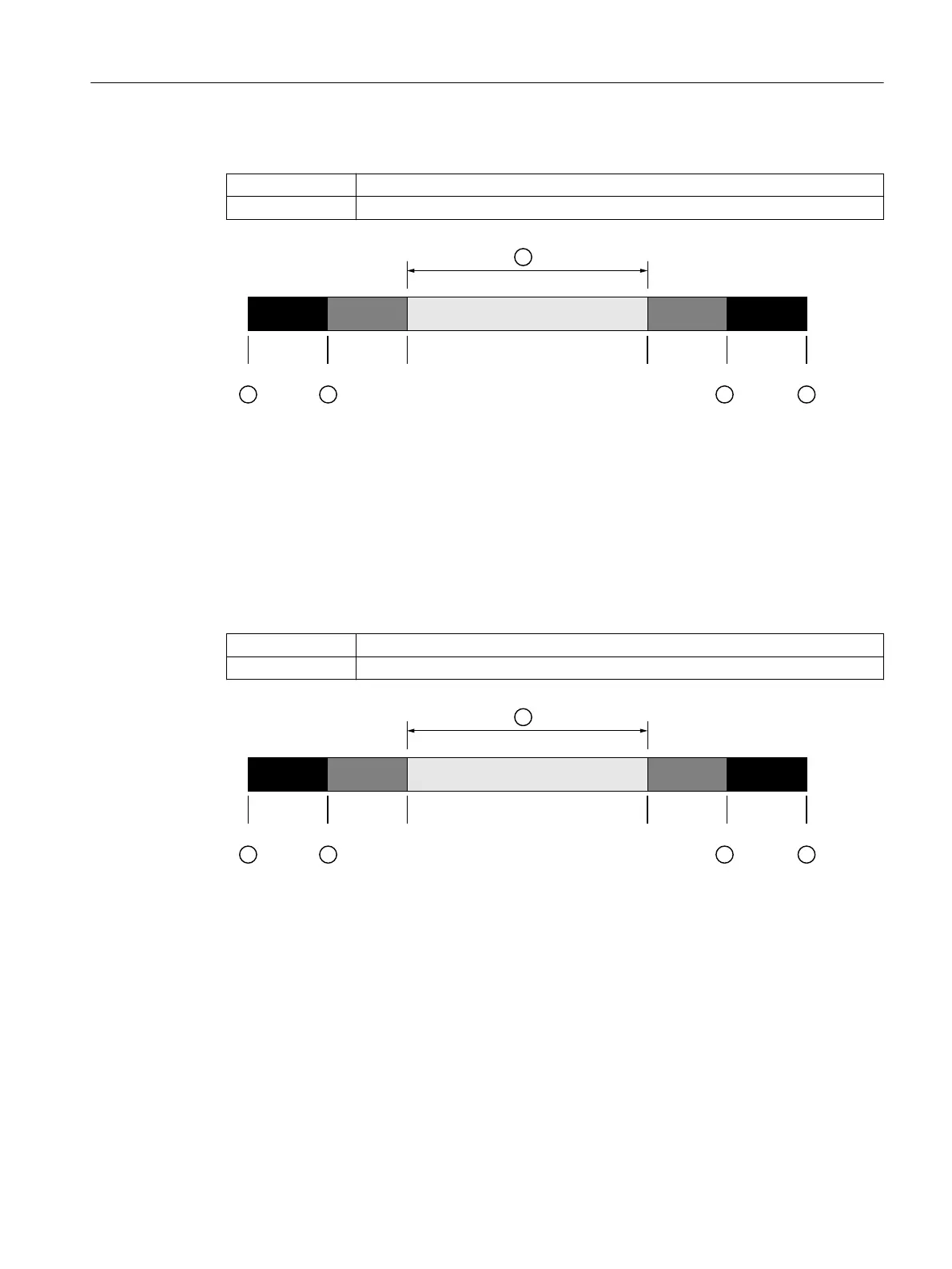

The loop current cannot drop below the set threshold.
Setting range: Between lower fault current② and 4 mA
Factory setting: 3.8 mA, or as speci󹪝ed in order
3.8 mA
22.8 mA20 mA
20.5 mA
4 mA3.55 mA




① Normal operation
② Lower fault current (factory setting)
③ Lower saturation limit (factory setting)
④ Upper saturation limit (factory setting)
⑤ Upper fault current (factory setting)
8.4.9.3 Upper saturation limit parameter
Sets the threshold for the upper saturation limit④.
Setting range: Between 20 mA and the upper fault current
Factory setting: 20.5 mA, or as speci󹪝ed in order
3.8 mA
22.8 mA20 mA
20.5 mA
4 mA3.55 mA




① Normal operation
② Lower fault current (factory setting)
③ Lower saturation limit (factory setting)
④ Upper saturation limit (factory setting)
⑤ Upper fault current (factory setting)
Parameter assignment
8.4 Assigning parameters using remote operation
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 105
