12.5.12 SITRANS TS500, type FT, 󹪞anged tapered well (7MC65..)
Ød
27 (1.063)
Weld
6,604 (0.26)
bore
15,875 (0.625)
6,35 (0.25)
95 (3.74)N
57,15 (2.25)
X
U
∅d External diameter of measuring insert (6 (0.24)) N Nominal length
X Extension U Mounting length

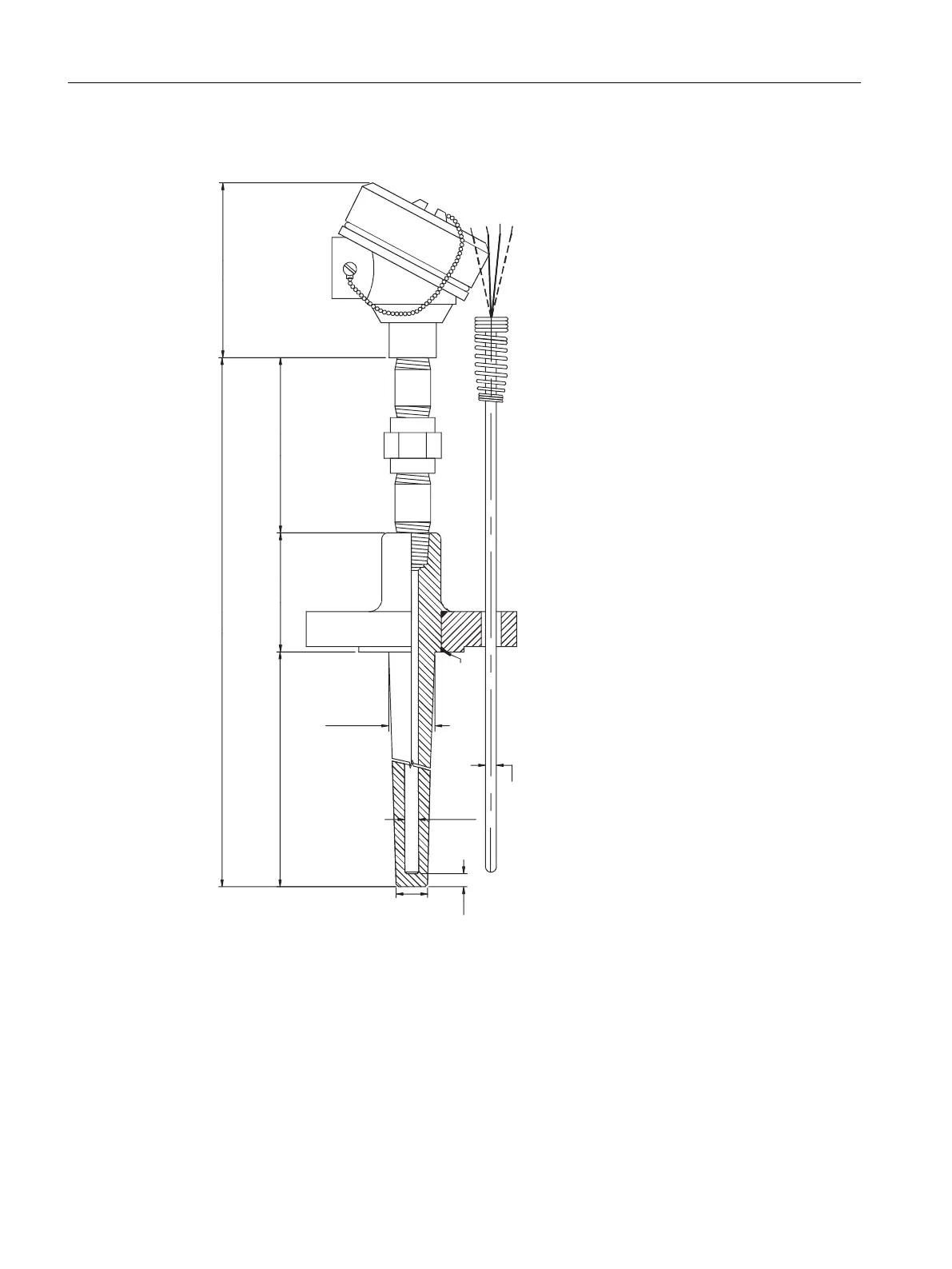

Figure 12-16 Dimensional drawings SITRANS TS500, type FT, 󹪞anged tapered well - dimensions in mm
(inch)
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
172 Operating Instructions, 08/2020, A5E47810090-AA
