Siemens SSD-C Installation Instructions

Siemens Industry, Inc.
Building Technologies Division
P/N 315-034170-133
ON-PULSING. Indicates that at least one unacknowl-
edged non-alarm (security, supervisory, or trouble)
event is present in the system (and that there are no
alarm events present or all alarm events have been
acknowledged.)
When the SOUNDER DISABLE option is selected in the Zeus Programming Tool, the
sounder remains OFF, regardless of the status of the system.
The pushbuttons and their functions are defined as follows:
LOCAL ACK During Supervisory Mode: Activates the
LCD backlight for 10 minutes.
When Event Is Displayed: Turns OFF the
sounder without affecting the logic of
system.
UP ARROW During Supervisory Mode: Activates the
LCD backlight for 10 minutes.
When Event Is Displayed: Displays the
event with the next higher priority. (See
Figure 2 for more information about the
differences between U.S. and Canada.)
DOWN ARROW During Supervisory Mode: Activates the
LCD backlight for 10 minutes.
When Event Is Displayed: Displays the
event with the next lower priority. (See
Figure 2 for more information about the
differences between U.S. and Canada.)

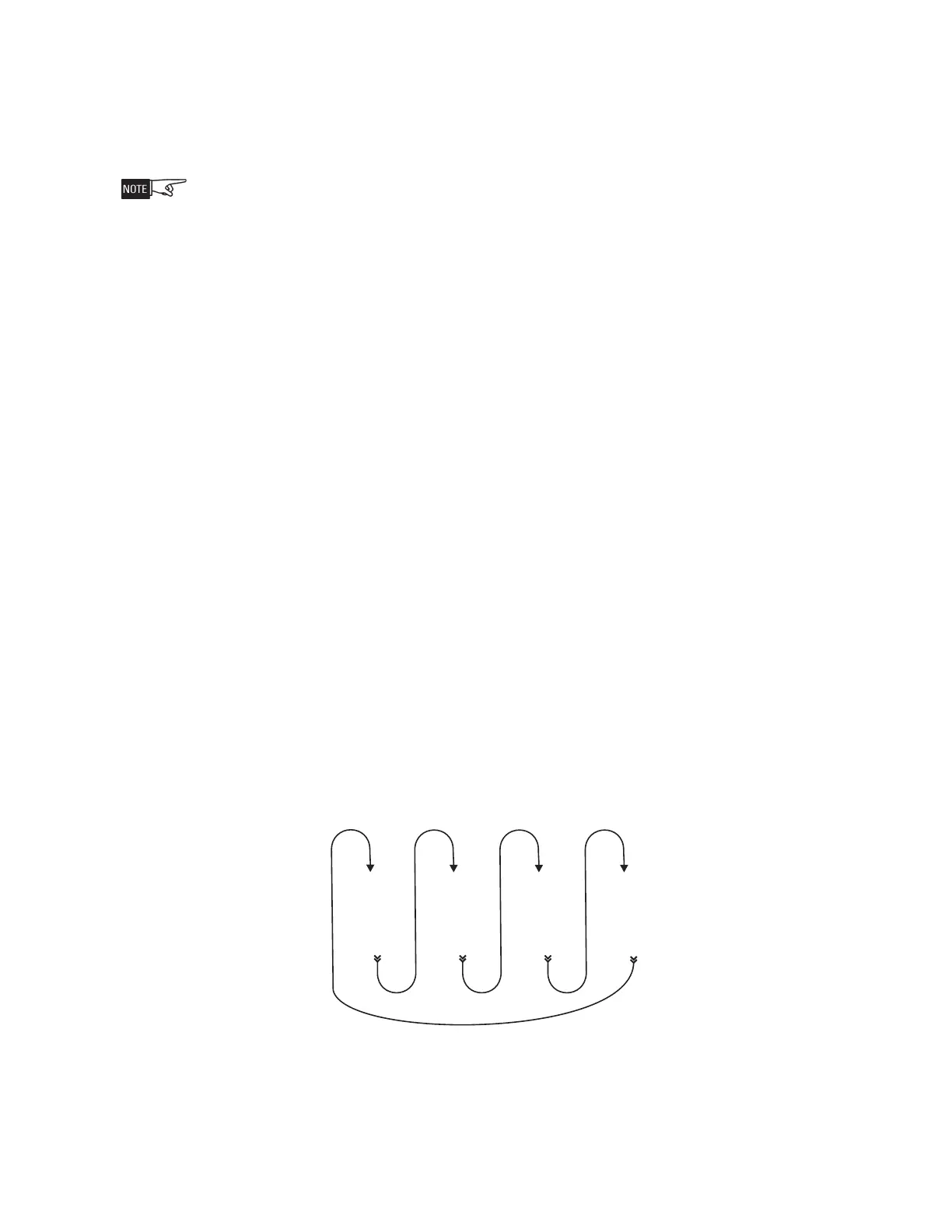

The events are displayed one at a time and cycle through a circular list once the most
recent event message is reached. See Figure 2.
FIRST
SECURITY
.
.
.
SECURITY
MOST RECENT
FIRST
SUPERVISORY
.
.
.
SUPERVISORY
MOST RECENT
FIRST
TROUBLE
.
.
.
TROUBLE
MOST RECENT
FIRST
ALARM
.
.
.
ALARM
MOST RECENT
Figure 2
Event Priority

Siemens SSD-C Specifications

General

Brand	Siemens
Model	SSD-C
Category	Monitor
Language	English
