PROGRAMMING In order to perform its desired operation, the SSD-C must be programmed using the
Zeus Programming Tool. The SSD properties must be set before normal operation. In the
Zeus Programming Tool, highlight the selected SSD-C module in the Physical View and
open the Detail View - Properties to modify and/or define the following SSD-C properties:
• HNET Address: This address must match the address set in the SSD-C
hardware.
• Base Language Custom Message: This message is associated with the
SSD-C module.
• Alternate Language Custom Message: This message associated with the
SSD-C module is in an alternate language.
• Display Type: Determines the mode configuration of the SSD, either Display-
Only or SSD with Control.
• Sounder Enabled: If selected, the sounder activates on event receptions;
otherwise, the sounder is disabled.
• Display Alarms: If selected, alarm events are displayed on the SSD; other-
wise, alarm events are filtered.
• Display Supervisory Events: If selected, supervisory events are displayed on
the SSD; otherwise, supervisory events are filtered.
• Display Security Events: If selected, security events are displayed on the
SSD; otherwise, security events are filtered.
• Display Troubles: If selected, trouble events are displayed on the SSD;
otherwise, trouble events are filtered.
WIRING
Remove all system power before installation, first battery then AC. (To power up,
connect the AC first, then the battery.)
Refer to Figure 5 for a typical wiring connection of Model SSD-C to the FireFinder-
XLS/Desigo Fire Safety Modular/Cerberus PRO Modular System.
FireFinder-XLS/Desigo Fire Safety Modular/
Cerberus PRO Modular ENCLOSURE
PSC-12
PMI/PMI-2/
PMI-3 (XLS)
FCM2041-U2
Desigo Fire Safety
Modular),
FCM2041-U3
(Cerberus
PRO Modular)
CPC
NIC-C
SSD-C
PAIR B (STYLE 7 ONLY)
H
NET TO NEX
T
ENCLOSURE
24VDC (POWER LIMITED)
PAIR A (STYLE 4, STYLE 7)

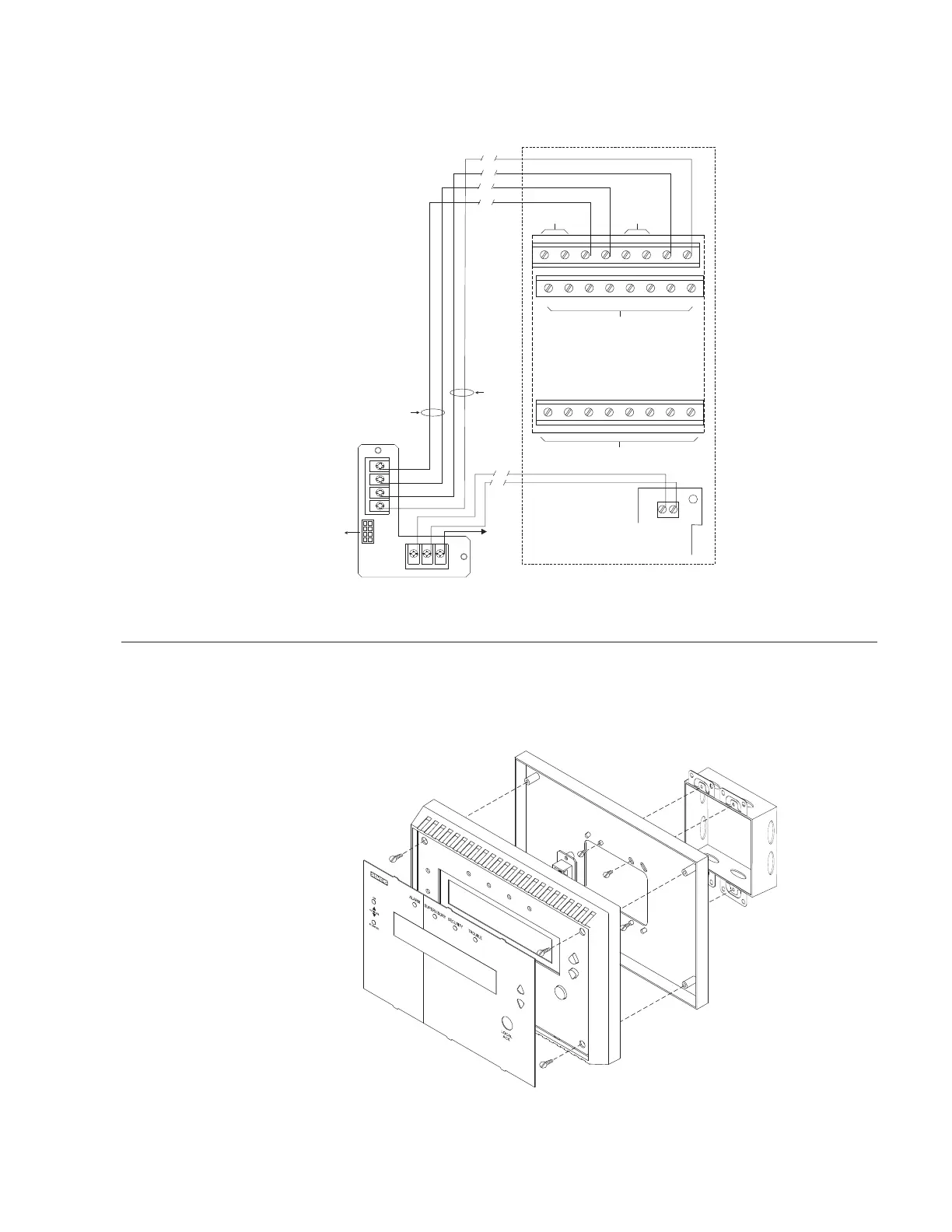

Figure 5
Typical SSD-C Connection to the FireFinder-XLS/Desigo Fire Safety Modular/
Cerberus PRO Modular
