Page 6 XPS 10/15 F Series Transducer A5E32725813
Mounting
Mounting
Recommendations
Special handling precautions must be taken to protect the face of the
transducer from any damage.
Mount the transducer so that it is above the maximum material level by at
least the blanking value (0.3m for XPS 10 F and 0.45m for XPS 15 F). Refer
to the associated transceiver manual for instructions on setting the blanking
value.
On liquid applications, the transducer must be mounted so that the axis of
transmission is perpendicular to the liquid surface.
On solids applications, a Siemens Easy Aimer should be used to facilitate
aiming of the transducer.
Do not over-tighten mounting. Hand tightening of the mounting hardware is
sufficient.
Secure installation by connecting a safety chain from the transducer to a
structural member.
Consider the optional temperature sensor when mounting the transducer.

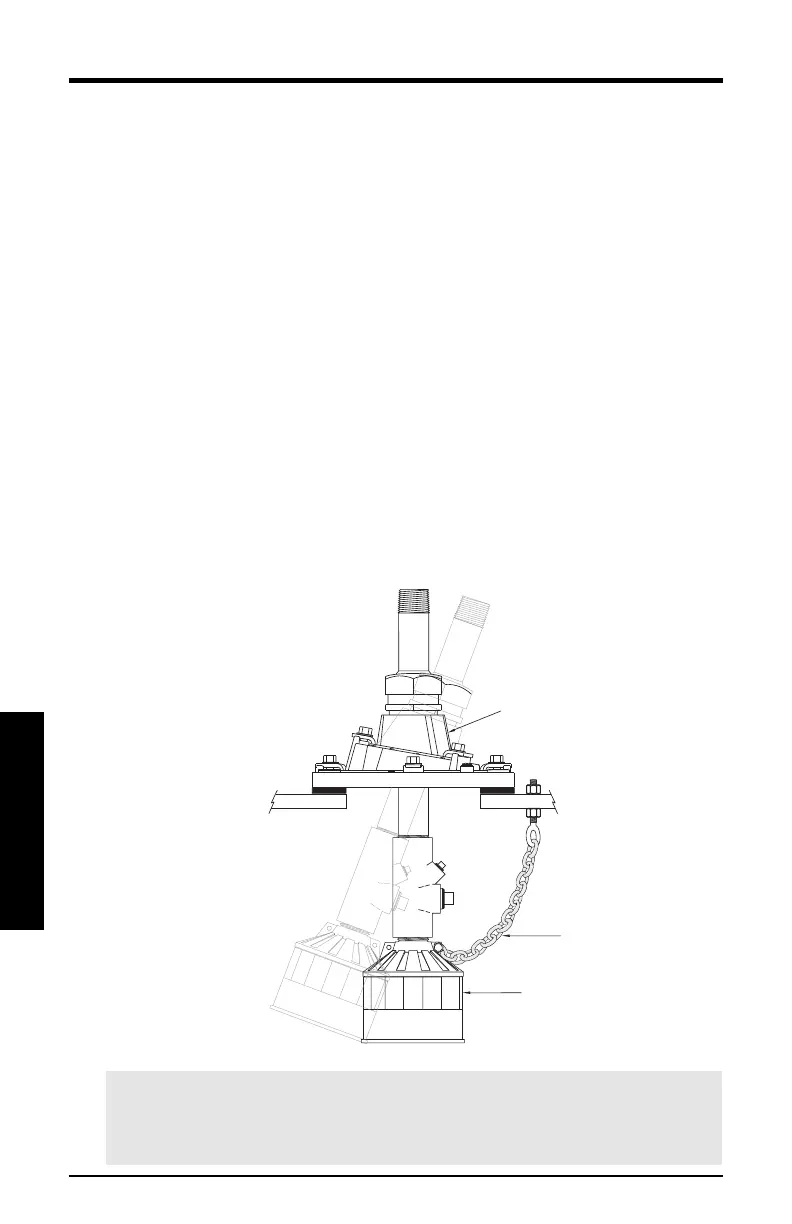

Solids Applications (XPS 10 F shown)
Note:
For the XPS 10 F series transducer, a hazardous seal must be used
to suit hazardous area classification. This seal is not supplied by
Siemens. For more information, refer to page 20.
Easy Aimer
(typical model)
safety chain
transducer
To Next Page
