A5E32725813 XPS 10/15 F Series Transducer Page 7
Mounting
Liquid Applications
Notes:
In, the examples that follow, an XPS 10 F Series transducer is shown
using a hazardous seal. This seal is not supplied by Siemens.
An XPS 15 F transducer can also be used in these applications, but,
because it comes equipped with a stainless steel coupling, no
hazardous seal is required.

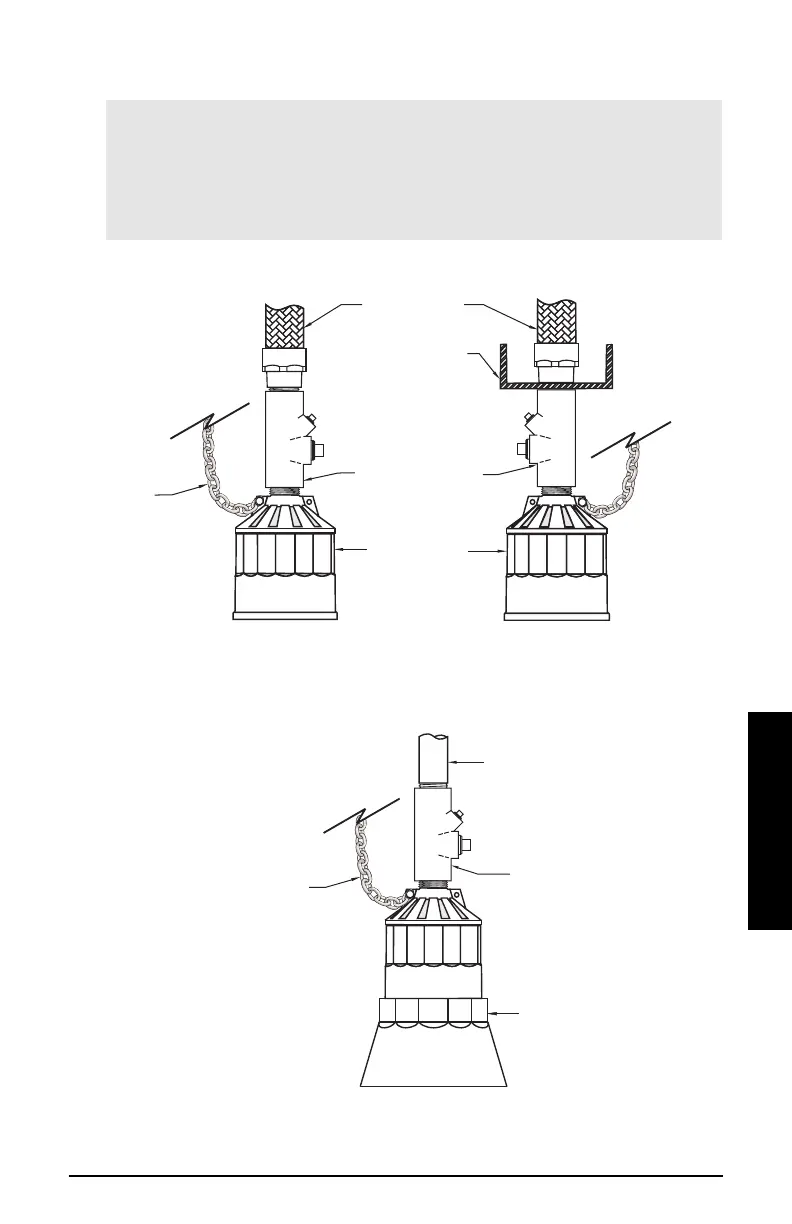

Flexible Conduit
(XPS 10 F shown) Bracket (XPS 10 F shown)
Flexible conduit transducer should not be
subjected to wind, vibration or jarring.
Submersible (XPS 10 F shown)
Submersible transducer, used in
applications where flooding is possible.
flexible
conduit
steel
channel
hazardous seal
(XPS 10 F only)
transducer
safety
chain
rigid metal
conduit
submergence
shield
safety
chain
hazardous seal
(XPS 10 F only)
