Page 8 XPS 10/15 F Series Transducer A5E32725813
Mounting

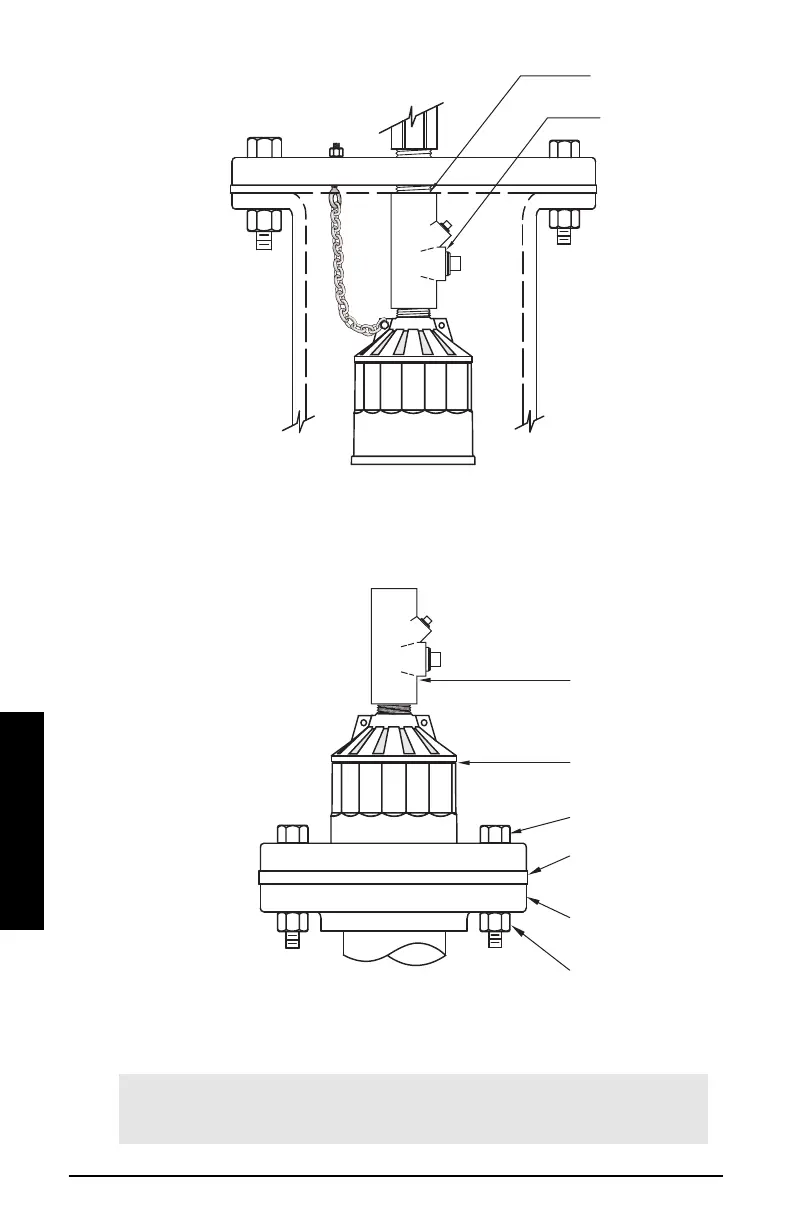

Blind Flange (XPS 10 F shown)
Flange, gasket, hazardous seal and hardware supplied by customer.
Refer to page 13
Flanged (XPS 10 F shown)
Flange, gasket, and hardware supplied by customer.
Refer to page 13
nipple welded
to bind flange
hazardous seal
(XPS 10 F only)
factory flanged
transducer
bolt
gasket
customer flanged,
flat face only
nut
hazardous seal
(XPS 10 F only)
Note: Tighten the flange bolts evenly in order to ensure a good seal between
the mating flanges.
Caution: Over-tightening can cause performance degradation.
