Siemens XPS10 User Manual

A5E32725813 XPS 10/15 F Series Transducer Page 5

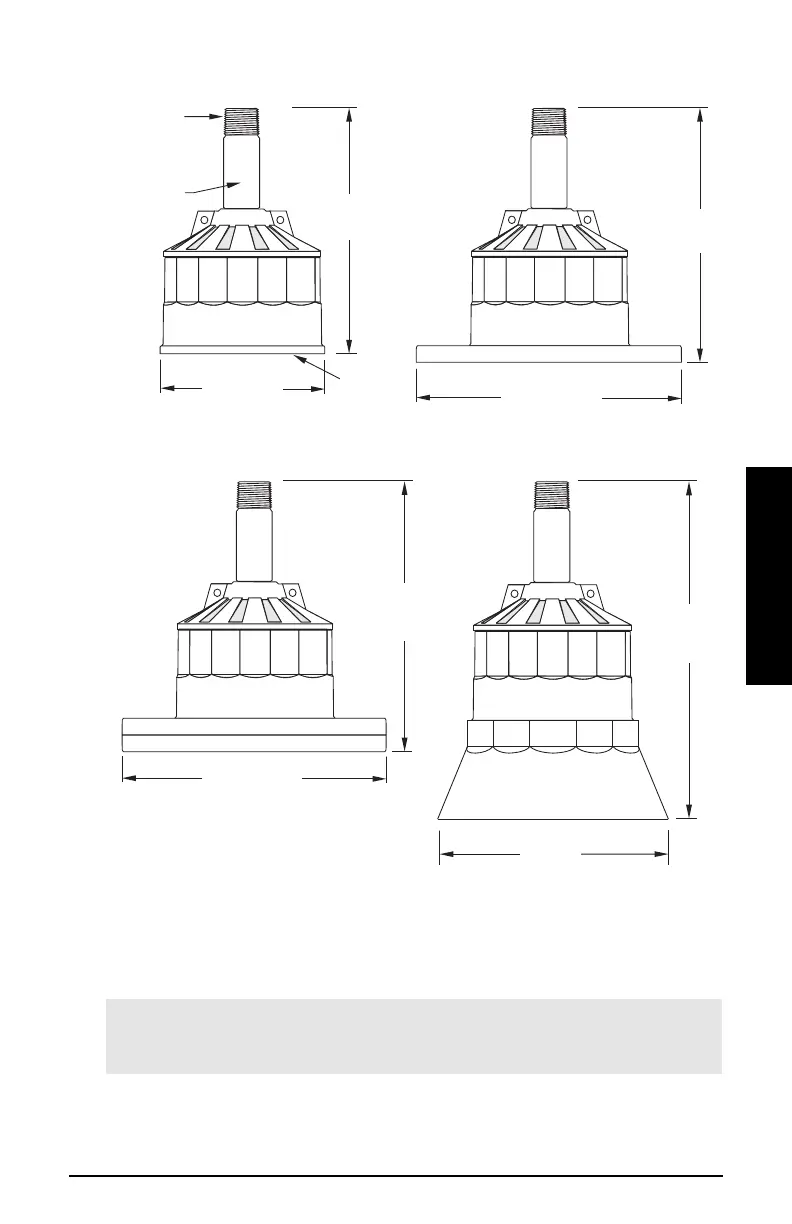

Outline & Dimensions
XPS 15 F Series Transducers
Standard Flange (optional)
Split Flange (optional) Submergence Shield (optional)
Refer to submergence shield instructions
(Siemens’ manual number
7ML19981EG01)
Note:
The XPS 15 F comes equipped with a stainless steel coupling suitable for
use in hazardous locations.
radiating
face
185mm
(7.3”)
120mm
(4.7”)
185mm
(7.3”)
to suit ANSI
standards
to suit ANSI
standards
191mm
(7.5”)
nominal
253mm
(10.0”)
158mm
(6.2”)
304
stainless
steel
1” NPT
