Siemens XTRI-S - Page 6

A6V101055479_en--_a
6
1
5
4
3
2
6
7
8
To monitored
switches, refer to
Fig. 3 and 4
Line 1
Line 2
Line 1
Line 2
To next
addressable device
From control panel
or previous
addressable device
Not used
To monitored
switches, refer to
Fig. 3 and 4

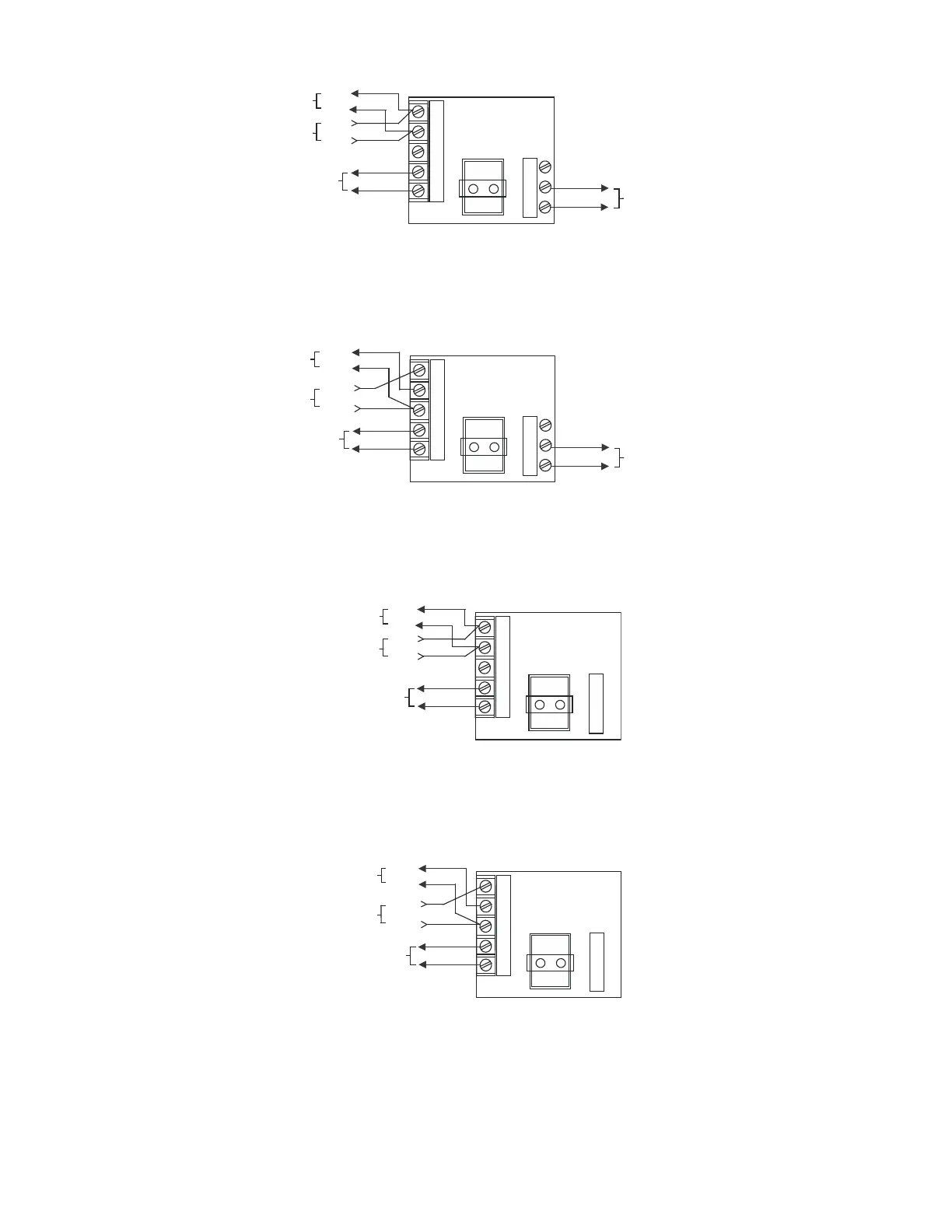

Figure 10
XTRI-D Polarity Insensitive Mode Wiring
1
5
4
3
2
6
7
8
To monitored
switches, refer to
Fig. 3 and 4
Line +
To next
addressable device
From control panel
or previous
addressable device
Line -
Line +
Line -
Not used
To monitored
switches, refer to
Fig. 3 and 4
Figure 11
XTRI-D Isolator Mode Wiring
1
5
4
3
2
6
7
8
To monitored
switches, refer to
Fig. 3 and 4
Line 1
Line 2
Line 1
Line 2
To next
addressable device
From control panel
or previous
addressable device
Figure 12
XTRI-S Polarity Insensitive Mode Wiring
1
5
4
3
2
6
7
8
To monitored
switches, refer to
Fig. 3 an 4
Line +
To next
addressable device
From control panel
or previous
addressable device
Line -
Line +
Line -
Figure 13
XTRI-S Isolator Mode Wiring
