MOUNTING
Addressable Interface Models XTRI-S, XTRI-D, and XTRI-R mount directly into a (user supplied) UL-
listed/recognized double gang or 4 inch switchbox. Fasten the module to the switchbox with the
switchplate using the two screws provided.
A red LED will blink to indicate an off-normal input switch position and/or an internal relay transfer.
NOTE: Be sure to program the XTRI before fastening the switchplate to the unit.

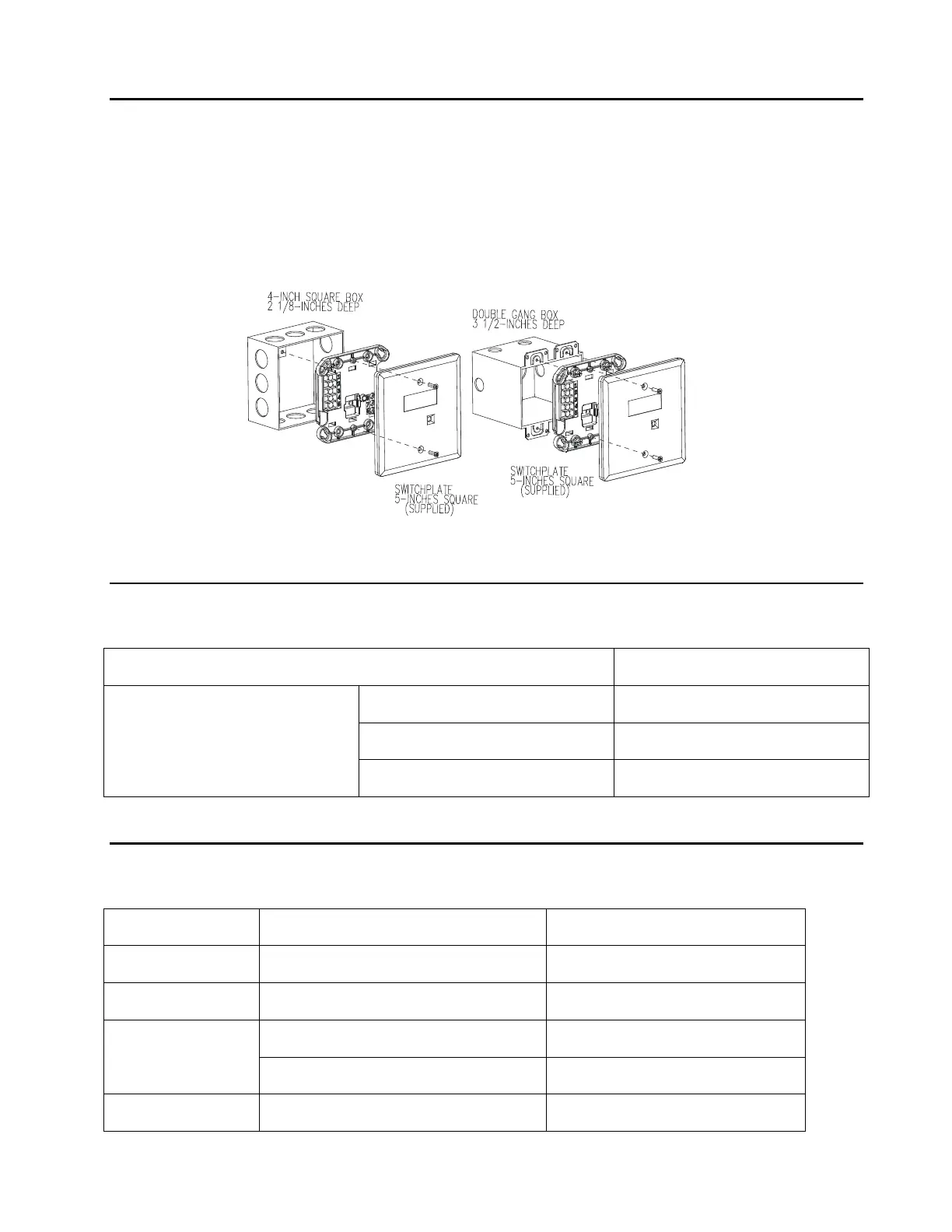

Figure 14
Mounting the XTRI-S/-R/-D
ELECTRICAL RATINGS
Operating Voltage 13-32 Vdc
Max Average Current (RMS)
XTRI-S 650µA
XTRI-D 950µA
XTRI-R 750µA
MODULE STATUS LED
Flash Color Condition Flash Intervals (Seconds)
Green Normal Supervisory operation 10
Amber Device is in trouble 4
Red
Locate/Alarm 1
Output Active (XTRI-R only) 10
No Flashes No power or need to be replaced -
