Warning:
Our cables are designed with special pinouts on the connectors, so don’t use other cables, or the
remote LCD panel will not be powered on.
Never cut the communication cable when it is attached to inverter with battery connected. Doing this,
even when the inverter is powered off, it will damage the remote PCB inside if the cable is short
circuited during cutting.
The M series inverters can be remotely monitored by a Wi-Fi or GPRS module plugged into its USB port.
The Wi-Fi / GPRS module is a plug-and-play monitoring device which allows users to monitor the status of
the PV system from a mobile phone APP or from the website
anytime anywhere.
The inverter’s AC output power can be powered on and off via the
APP.
The PV Butler APP will automatically refresh the data in every 5
minutes. To access real date, please roll down the screen to refresh.
To monitor the inverter via both WIFI and USB port, the
CUBEWiFi module can be connected via a short extension cable.
2.4.7 LCD & Specification Setup
Press the On/Off switch to turn on the unit.
The operation and display panel area includes three LED indicators,
four function keys and a LCD display.
It shows very rich operating info.

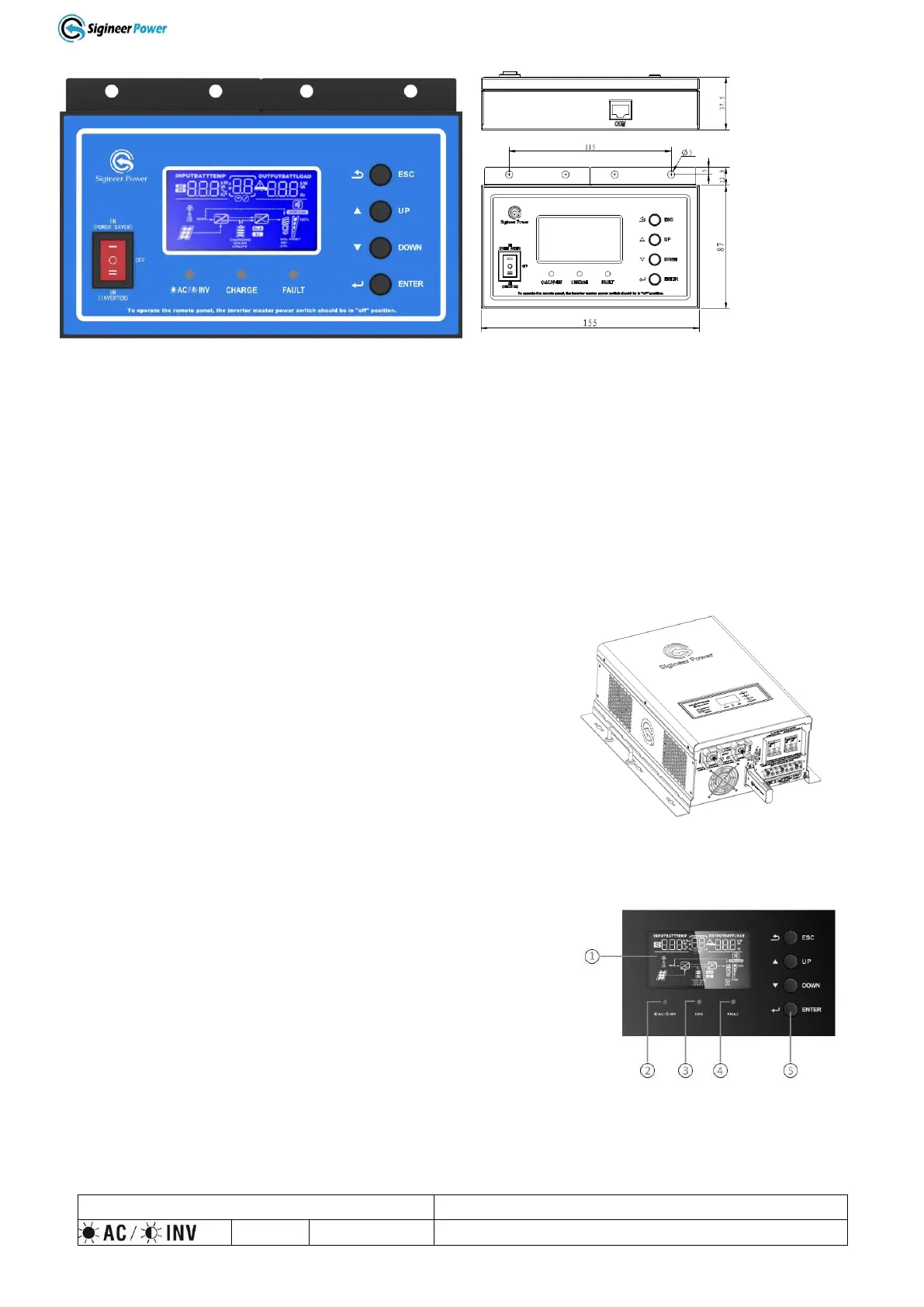

1 LCD display / 2 Status indicator / 3 Charging indicator 4
Fault indicator
5 Function buttons
