www.sigineer.c
om
36
Appendix 3
:

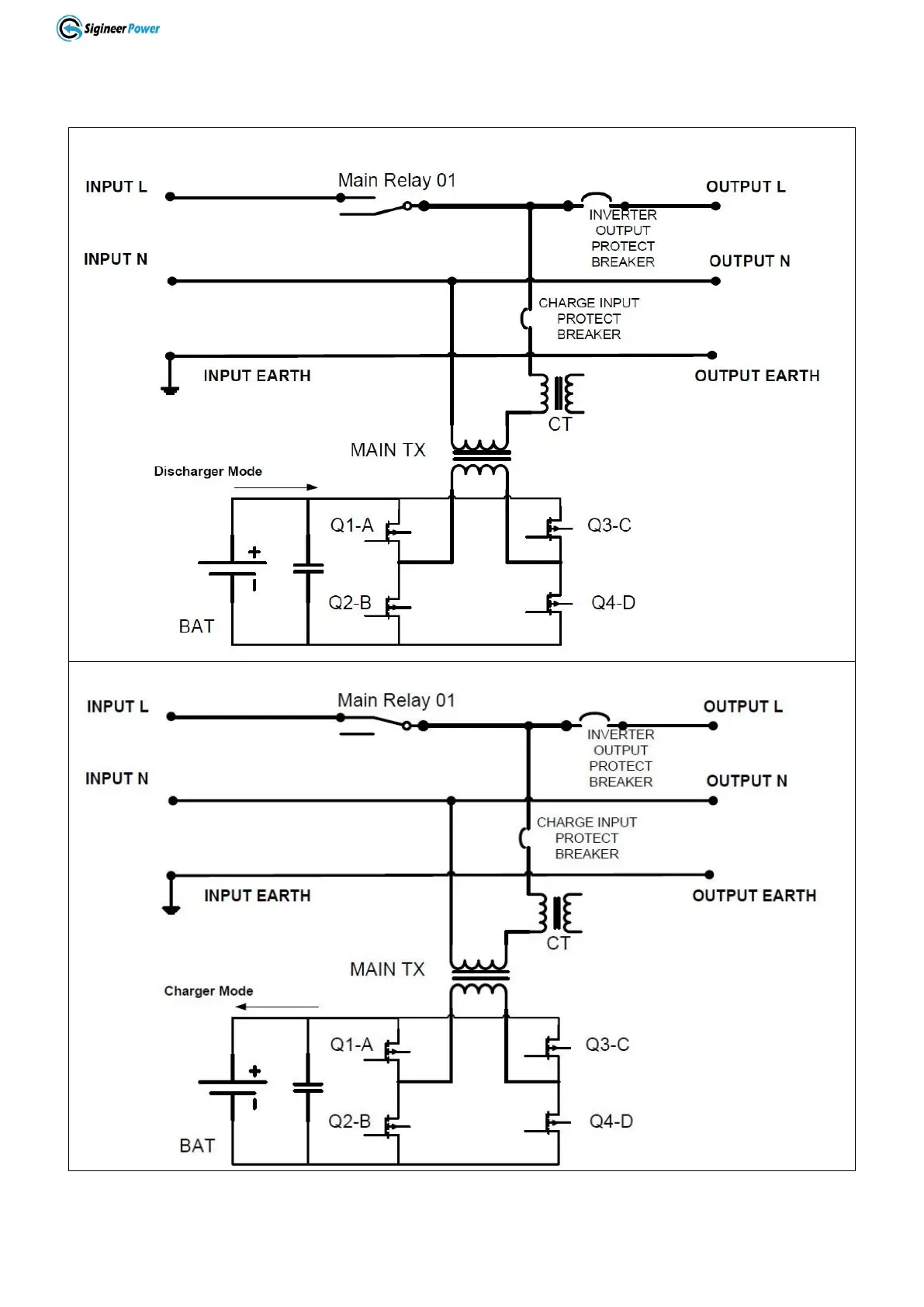

Circuitry Sc
heme
Cir
cuitry scheme for Inverter
Mode
Cir
cuitry scheme for
AC Mode
35
37
Table of Contents
Table of Contents
2
Important Safety Information
3
General Safety Precautions
3
Precautions When Working with Batteries
3
Introduction
4
General Information
4
Application
5
Mechanical Drawing
5
Features
7
Electrical Performance
8
Invert
8
AC Charger
8
Transfer
12
Power Saver
12
Protections
13
LED Indicator
14
LCD Remote Control
14
Audible Alarm
15
FAN Operation
16
DIP Switches
16
Auto Generator Start
18
Battery Temperature Sensing
19
GFCI Outlet
19
Automatic Neutral-To-Ground Bonding
20
Lithium Battery Wakeup
21
Other Features
22
Installation
22
Location
22
DC Wiring Recommendation
22
AC Wiring Recommendation
24
Grounding
26
Mounting Flange
27
Maintenance & Troubleshooting
29
Warranty
31
Appendix 1 : Sigineer Power 1500W Inverter/Charger Spec Sheet
32
Appendix 2 : Sigineer Power 2000W-6000W Inverter/Charger Spec Sheet
34
Appendix 3: Circuitry Scheme
36
