5 Using the Centrifuge
5.1 Description
5.1.1 Operating Elements
1
2
3
4 5
6
78
1 Mains power switch
2 Stop key
3 Lid key
4 Lid
5 Display
6 Start key
7 Left rotary knob
8 Ri
g
ht rotar
y
knob

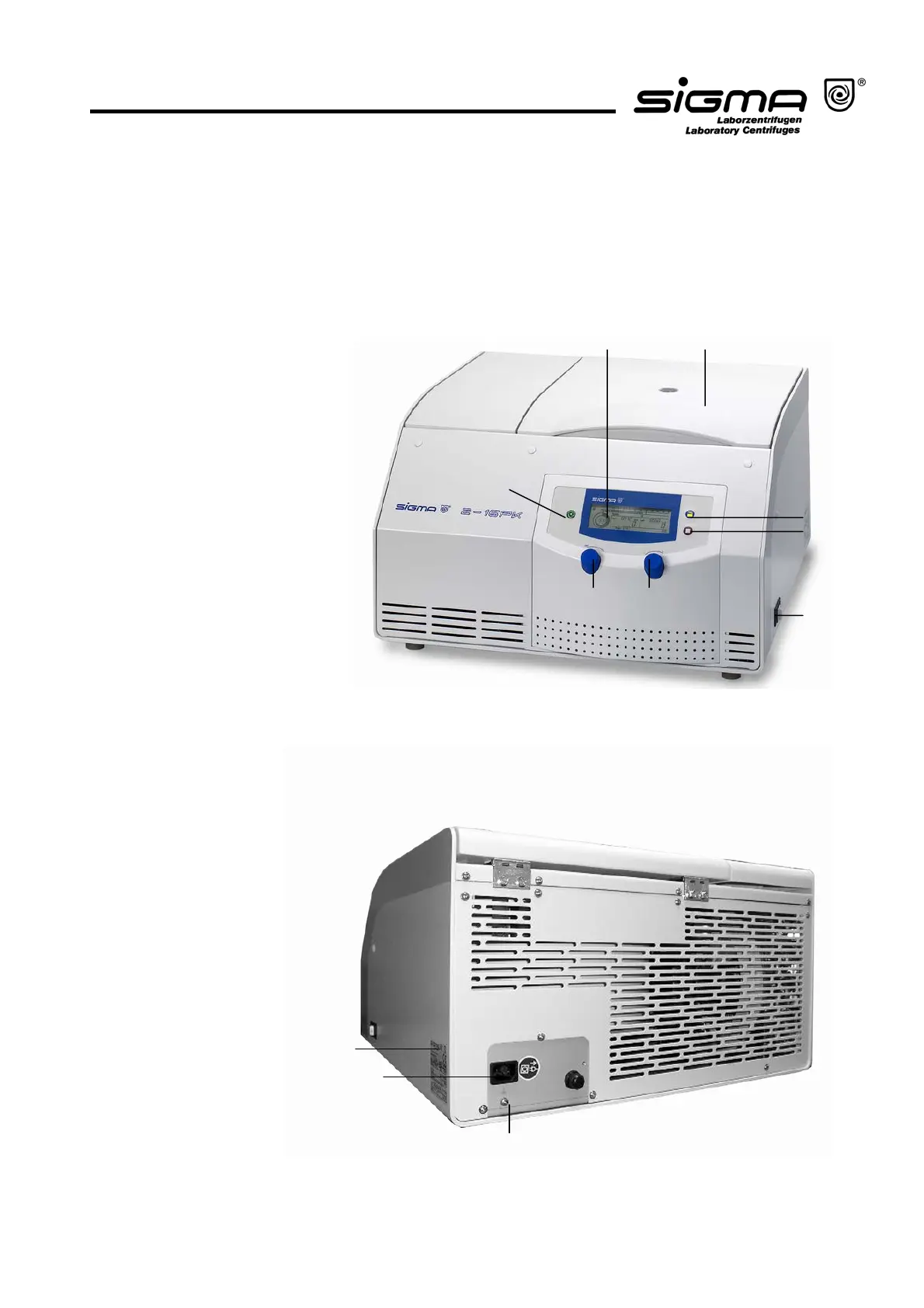

Fig. 5.1: Total view
of the centrifuge
Fig. 5.2: Rear view
of the centrifuge
9 Name plate
10 Equipotential
bonding screw
11 Mains power input
9
11
10
