Sigma 980 - Page 28

Page 26
Unpacking the Instrument
Section 2

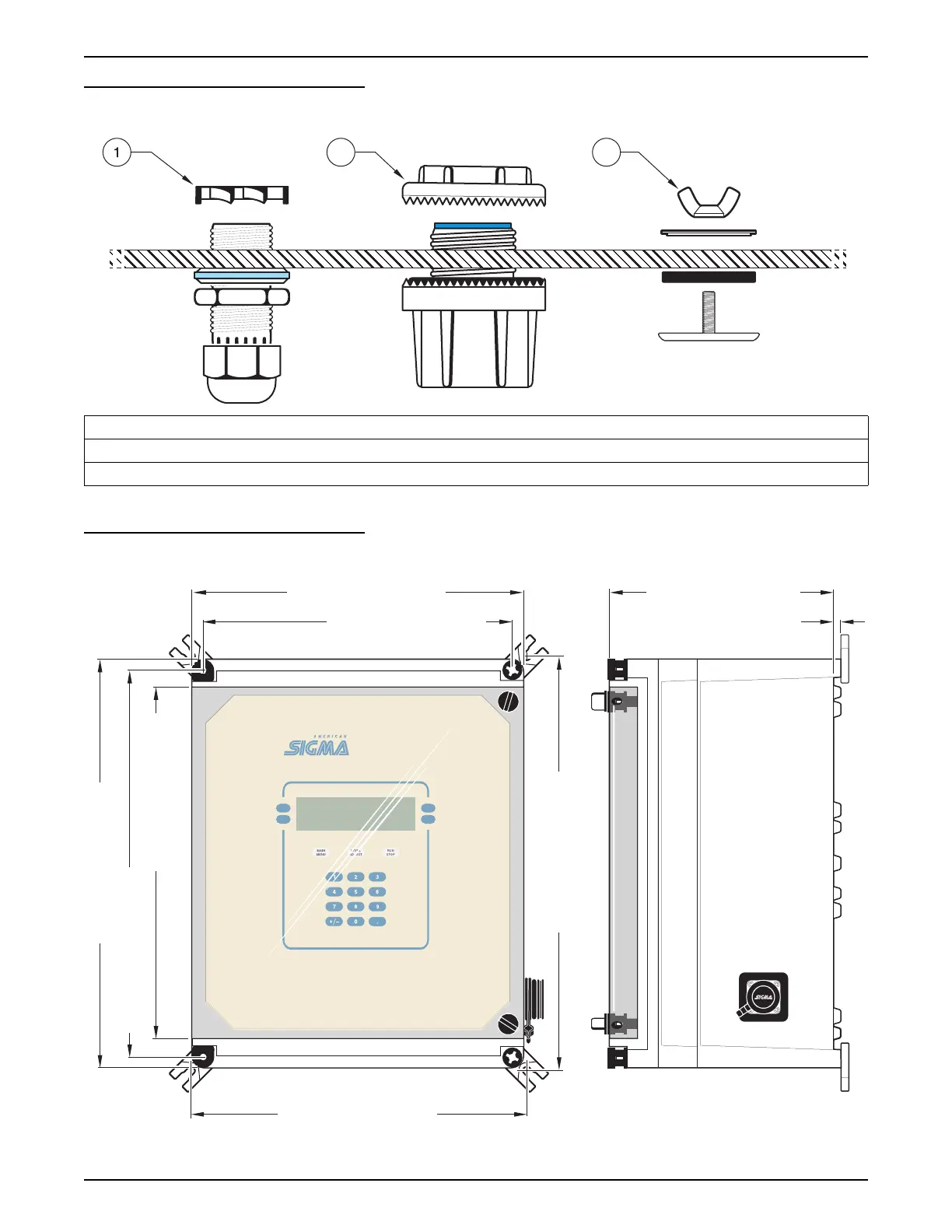

Figure 4 Sealing-type Strain Reliefs, Conduit Fittings, and Sealing Plugs
Figure 5 Mounting Dimensions (1 of 3)
1. Sealing-type Strain Relief (Cat. No. 8773 0.20-0.35″ O.D. cable, Cat. No. 8786 0.23-0.47″ O.D. cable)
2. Conduit Fitting (½″ (Cat. No. 16483), 1” (Cat. No. 4913600))
3. Oil-tight Sealing Plug (Cat. No. 42210-00)
2
3
980980
980
X.XX inches (XX.X mm)
12.05 inches (306.7 mm)
13.86 inches (352.0 mm)
12.45 inches (316.2 mm)
14.62 inches (371.3 mm)
11.88 inches (301.7 mm)
11.06 inches (280.9 mm)
14.80 inches (375.9 mm)
7.80 inches (198.1 mm)
.225 inches (5.7 mm)
