Mounting Options

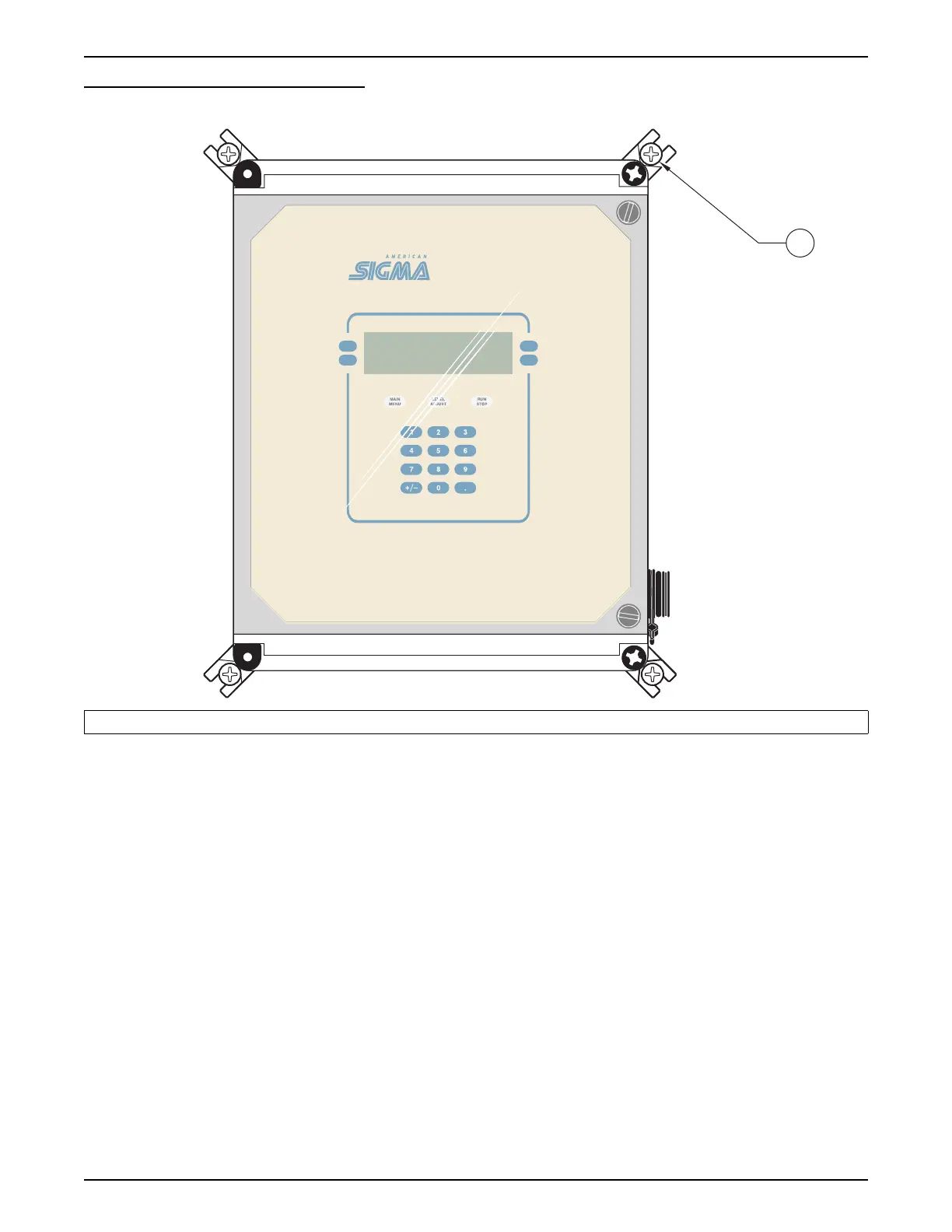

Figure 8 Wall Mounting
2.3.2 Rail/Pole Mounting
Mount the 980 Flow Meter using the rail/pole mounting kit
(Cat. No. 97091-00).
1. Determine if the brackets need to be placed horizontally or vertically,
depending on the direction of the rail/pole. Refer to Figure 9.
2. Tap the four brass inserts flush with the four holes on the back of the
instrument. Refer to Figure 7.
3. Slide two adjustable clamps on each bracket. Adjust the clamps to
meet the approximate size of the rail/pole and secure by tightening the
clamp screw.
4. Match the screw holes on the bracket to the holes on the back of
the instrument. Mount the bracket to the instrument using four M4 x 8 mm.
screws. Refer to Figure 9.
5. Place a commercially–sold hose clamp through the bracket and clamps to
attach the instrument to the rail/pole.
1. ¼–20 screws (4)
980980
1
