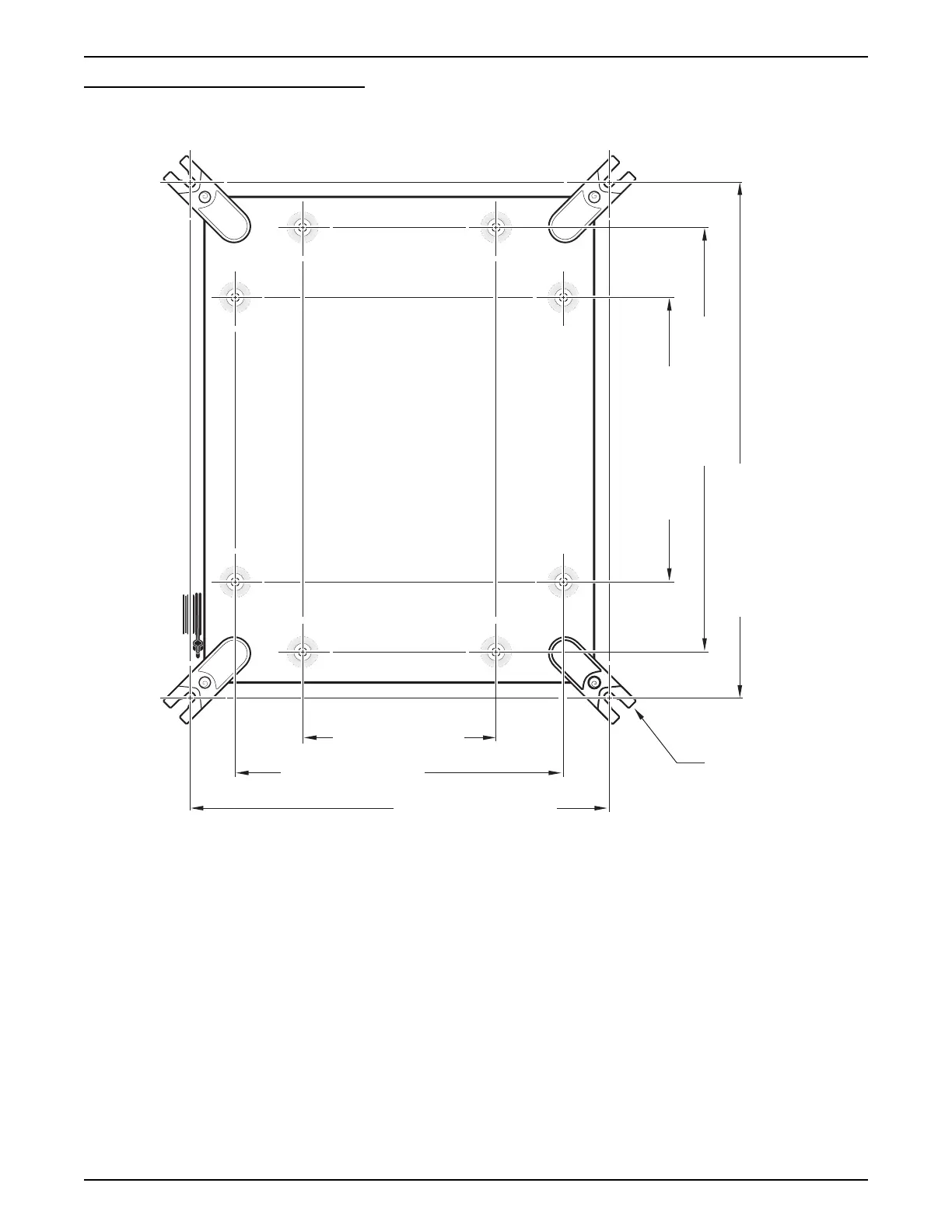

Figure 7 Mounting Dimensions (3 of 3)
2.3.1 Wall Mounting
Mount the 980 Flow Meter using the Wall Mounting Blocks that come installed
on the unit, see Figure 7. These brackets provide secure mounting for the
instrument. To wall mount the 980 Flow Meter use four ¼–20 screws. Refer to
Figure 8.
209.5 mm (8.25 inches)
309 mm (12.18 inches)
376 mm (14.80 inches)
139 mm (5.5 inches)
240 mm (9.45 inches)
301.5 mm (11.87 inches)
Mounting Blocks (4)
