Page 54
Wiring the Submerged Area Velocity Sensor
Section 2

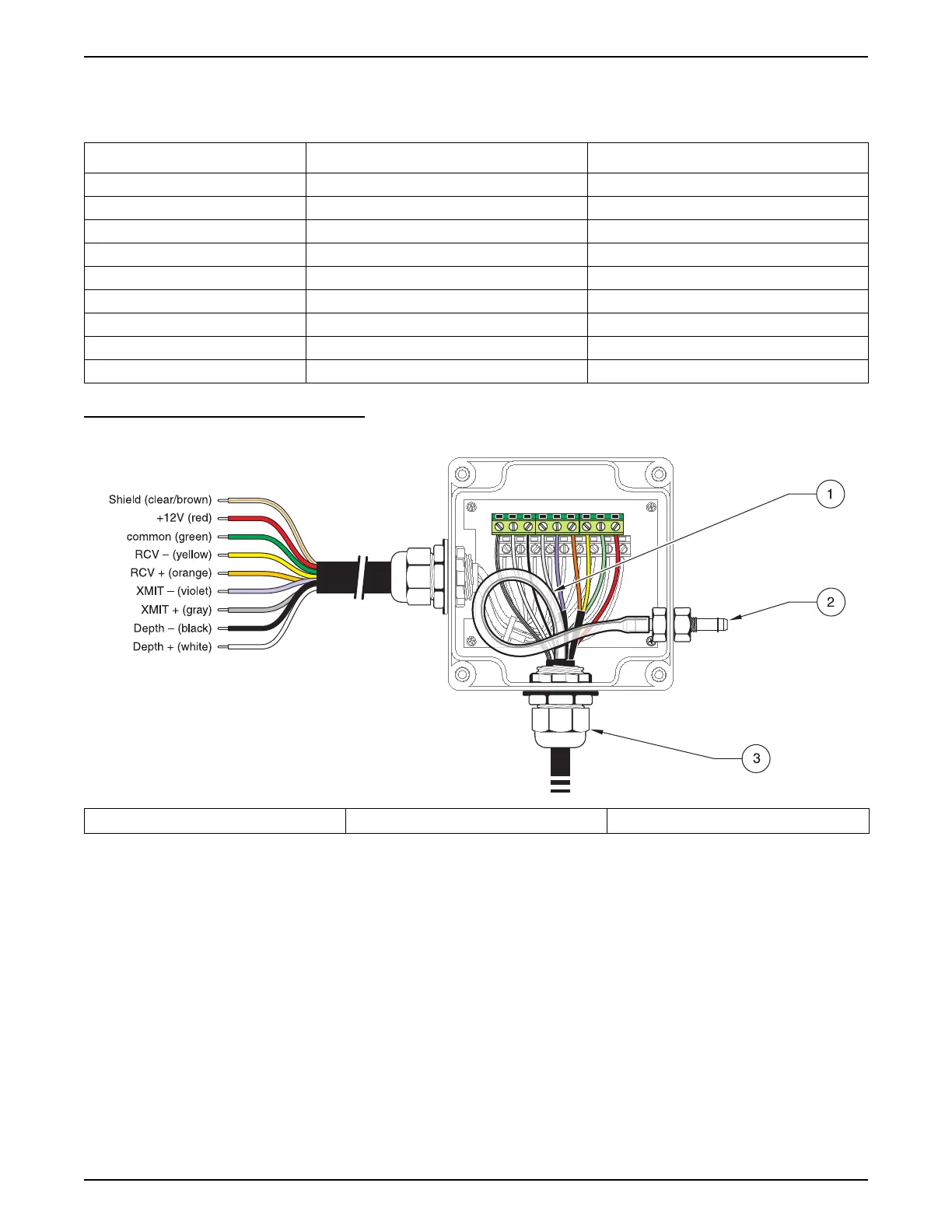

Figure 26 Submerged Area Velocity Junction Box Connections
Table 16 Submerged Area Velocity Sensor Terminal Board Connections (TB11)
Pin Signal Description Wire Color
8 Depth + (pos) white
9 Depth - (neg) black
10 + 12 V dc red
11 common green
12 XMIT + (pos) gray
13 XMIT - (neg) violet
14 RCV + (pos) orange
15 RCV - (neg) yellow
16 shield clear/brown
1. Sensor Cable Tubing 2. Brass Tubing Nipple 3. Cable Clamp Hex Nut
