Page 82
Downlook Ultrasonic Sensor
Section 4

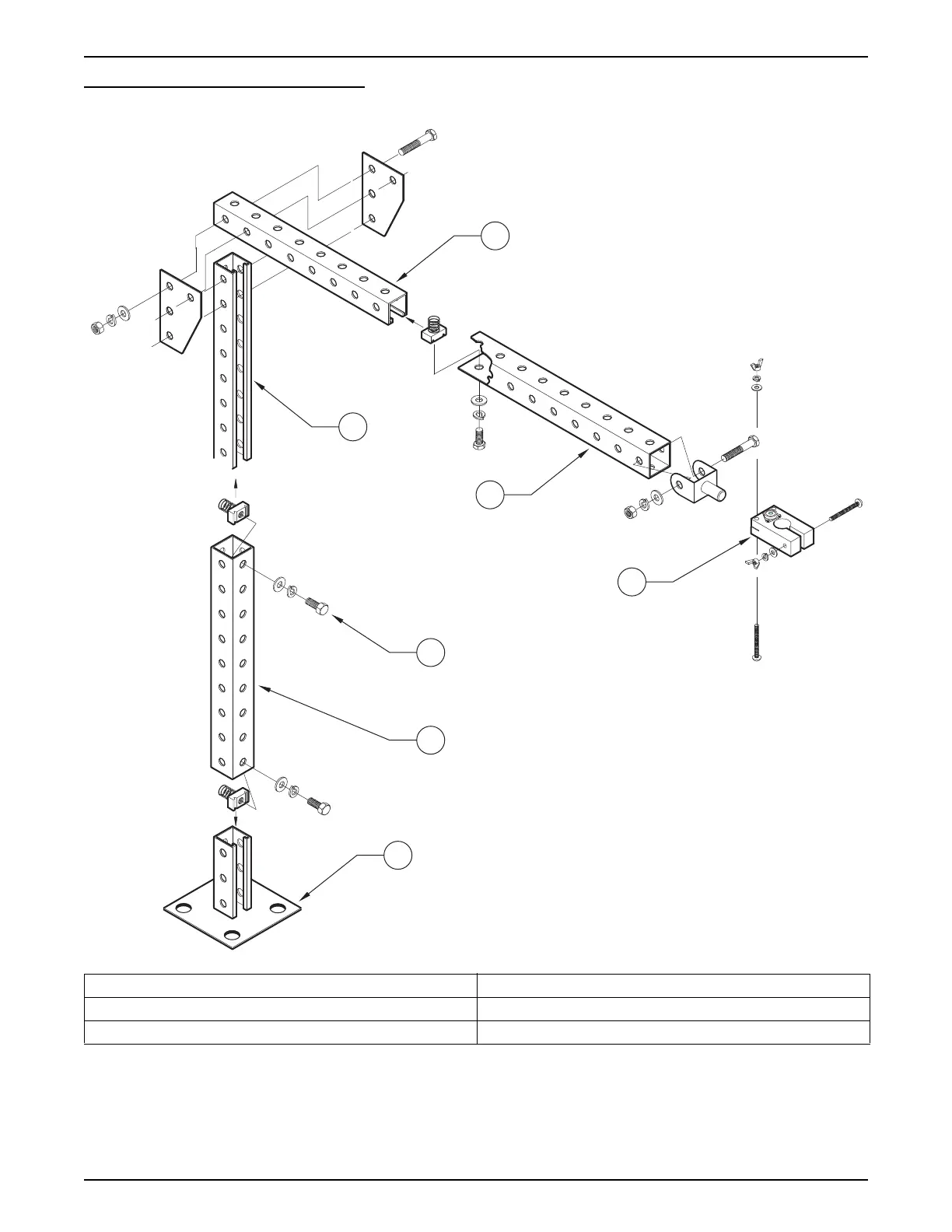

Figure 35 Assembling the Mounting Bracket (Cat. No. 2904)
1. 14.75 inches (Cat. No. 3047) 4. Horizontal and vertical sections are fully adjustable*.
* Loosen the bolt, slide the section to the desired distance and re-tighten the bolt.
2. 15.25 inches (Cat. No. 3046) 5. Sensor Mounting Clamp
Sensor Mounting Clamp (with built-in bubble level) Sensor adjusts to any required level.
3. 16.625 inches (2) (Cat. No 3048) 6. 5.5 inches tall (Cat. No. 3108)
1
2
3
4
5
3
6
