Sigma EOX VIEW 1300 - Mounting EOX VIEW 1300 on Ribbon Butler

EOX
®
Assembly I 33

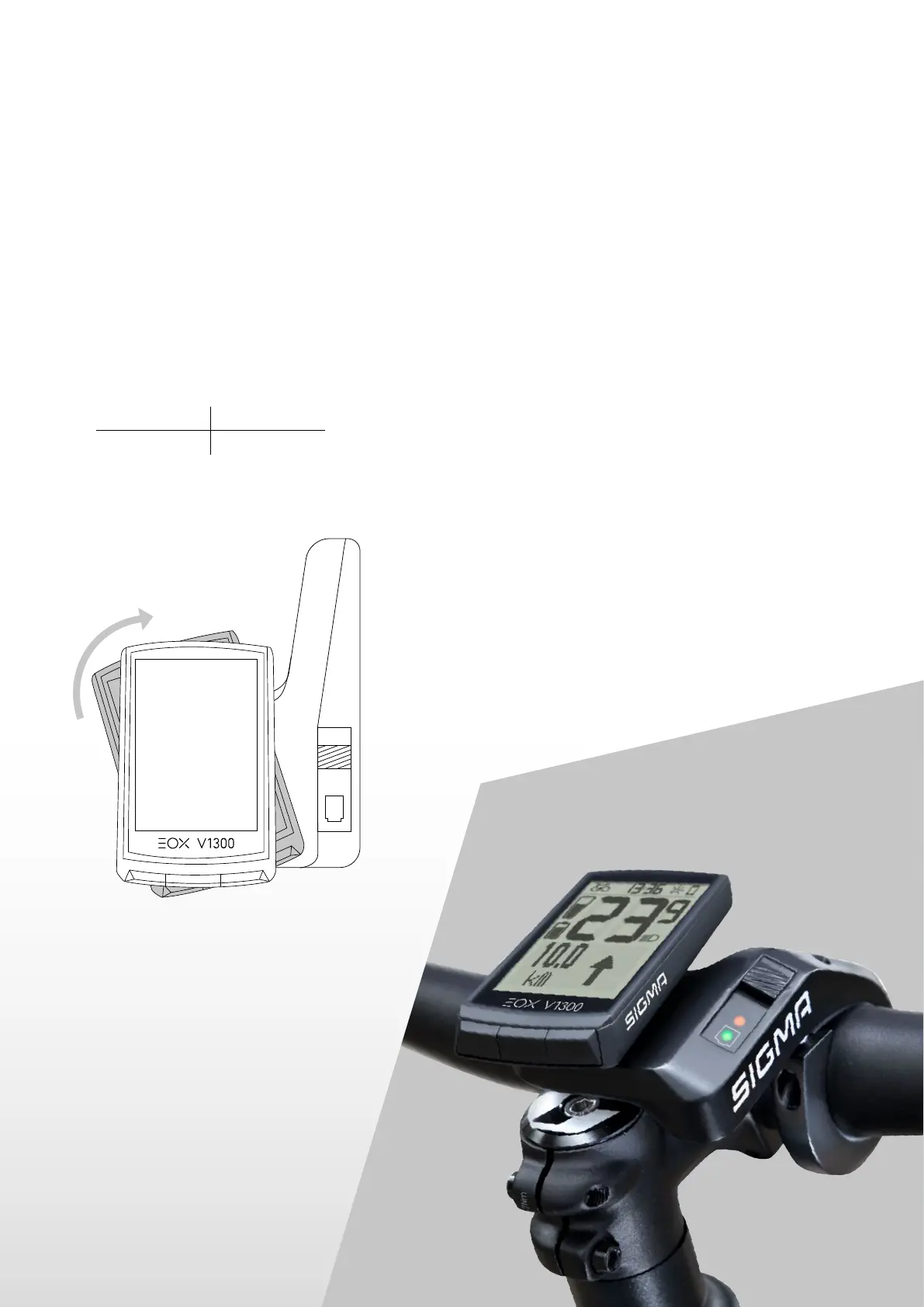

Mounting the EOX
®
VIEW 1300 on the Ribbon Butler
− Set the EOX
®
VIEW 1300 in 11 o’clock position on the Ribbon Butler
− Turn the EOX
®
VIEW 1300 to the right until it’s straight.
Option: With an additional screw (2.5 mm Allen key) it‘s possible to lock the EOX
®
VIEW 1300 from the back side of
the Ribbon Butler.
Mounting the Ribbon Butler to the handlebar
− Wrap a thick rubber pad (for 31.8 mm handlebar) or thin rubber pad (for 35 mm handlebar) around the
handlebar on the left side of the stem (out-front mounting) or the right side of the stem (reverse mounting)
− Loosen the clamping screw and place the Ribbon Butler on the rubber pad.
− Take care that the cables run inside the groove and leave the clamp only in the intended opening.
− Align the EOX
®
VIEW 1300 in riding direction.
− Tighten the clamping screw with:
Note: When using the 31.8 mm rubber pad it’s possible to adjust the height over the stem by turning the rubber pad
31.8 mm 35.0 mm
0.90 Nm 0.75 Nm
