CSTO 082 C-DIAS SAFETY-DIGITAL OUTPUT MODULE
Page 8 31.01.2018
C-DIAS Safety Digital Output Module CSTO 082
Module Description
The Safety output component series has the Safety integrity
level SIL3 and/or SIL CL 3 according to (IEC 62061) and/or
Performance level e / Category 4 (EN ISO 13849)
The Safety output component series has:
8 safe outputs (IEC/EN 61131)
The safe outputs are used for the Safety-related output of
8 actuator signals to, for example, control relays, valves,
etc.

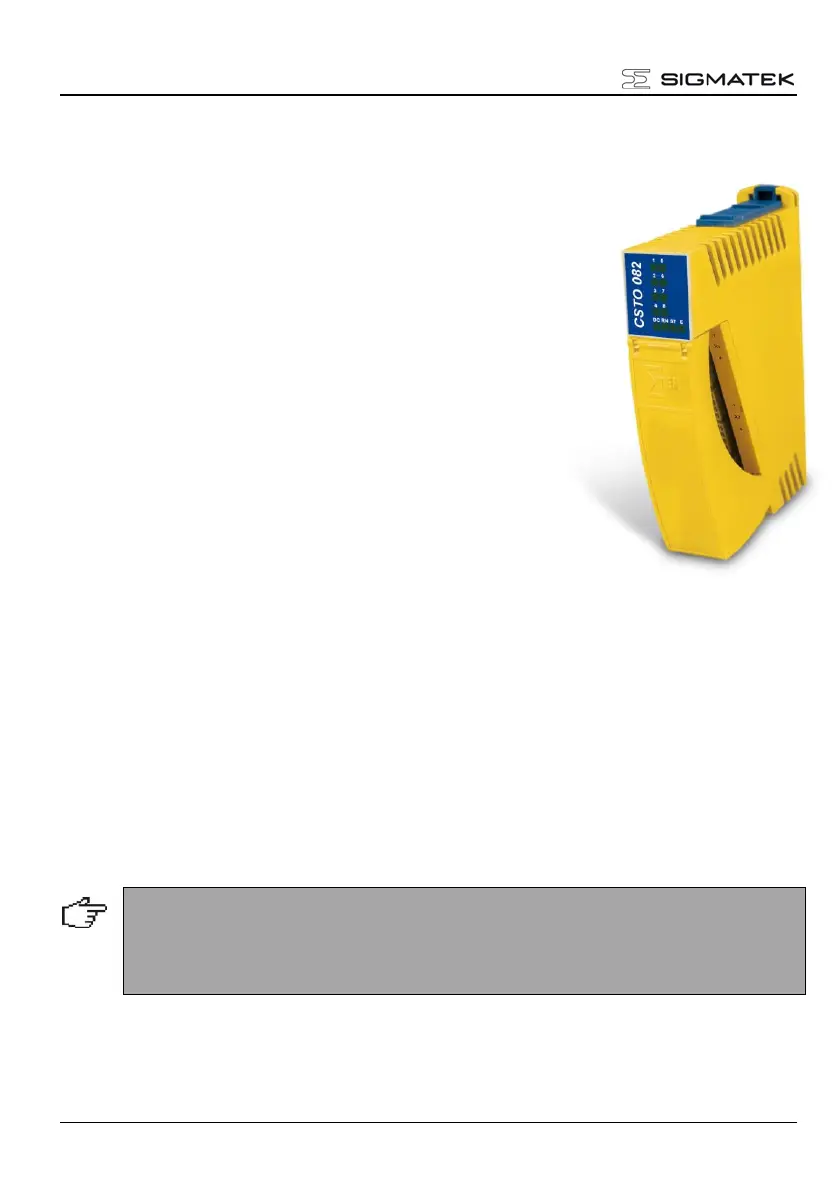

Fig. 2: CSTO 082
The Safety output module CSTO 082 is suited for use in systems with optional modules
and interface variables in accordance with the system hand book version 1.5, sections 1.6,
7.1 and 7.2.
To use the Safety output module in an application, a Safety CPU module that regulates the
synchronized communication with the Safety modules using safe bus telegrams is also
required. This also includes
• Processing the safe application and
• The distribution of configuration data to remote Safety modules.
When wiring, it is important to note that the output supply of the Safety outputs is
not protected against polarity reversal.
If the polarity wired in reverse, the Safety module must be exchanged and sent for
repair.
