CSTO 082 C-DIAS SAFETY-DIGITAL OUTPUT MODULE
Page 20 31.01.2018
Error Response
In the event of an error, please consult the chapter "LED Displays", as important infor-
mation on the runtime status of the system can be derived from the status and error dis-
play. Since errors in general are of a complex nature, do not perform a diagnosis based on
the LEDs alone (consult the corresponding chapter in the Safety System Handbook as
well). For an exact error analysis, the SafetyDesigner must be used.
Restart Errors

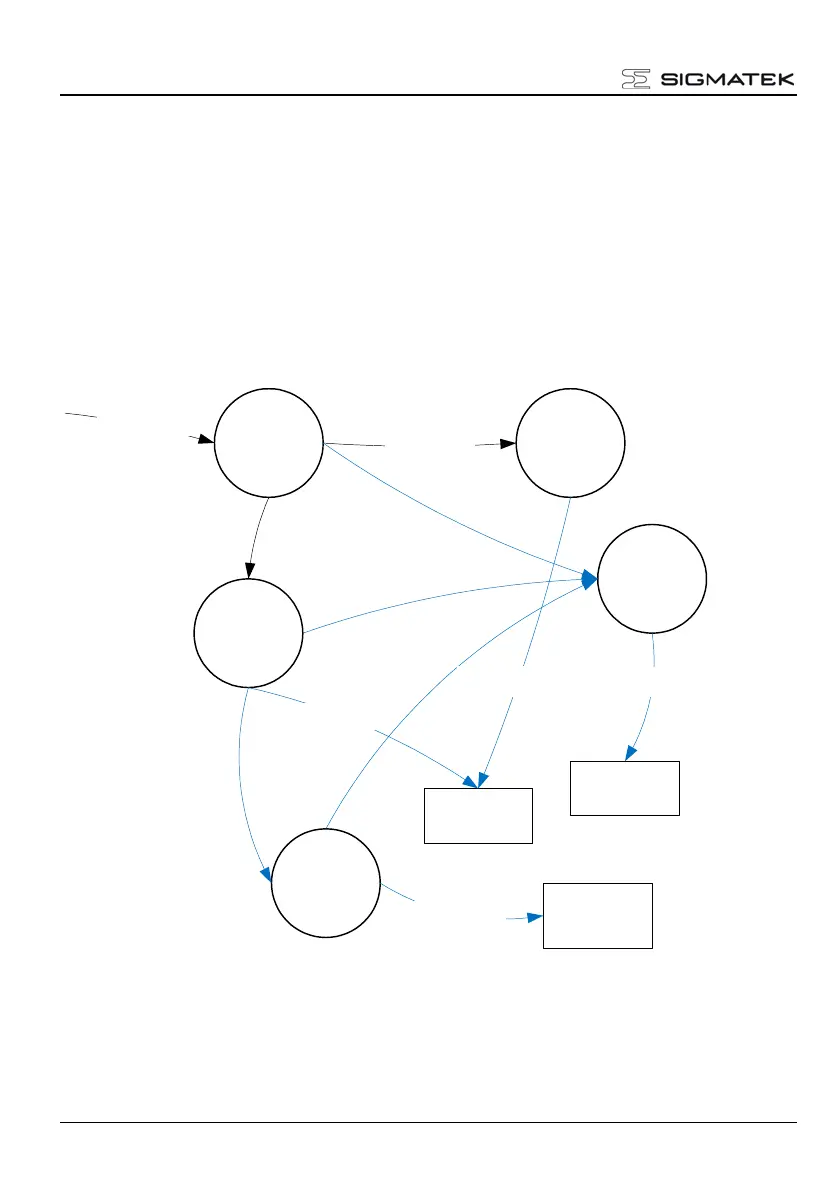

The following diagram shows the response of the Safety output module during restart.
