MODEL: EA2258 PRODUCT CODE: 709435 07/2022
19
INSTRUCTIONS (CONT.)
Horizontal Distance Mode
The Horizontal Distance Mode gives
you the distance to your target
accounting for angle. This is crucial
for when your target is higher or
lower than you, or cannot be directly
targeted horizontally. This function
is very helpful, e.g. if walls, hedges
or people are between Laser Range
Finder and the target. The Laser
Range Finder measures the linear
distance and slope angle to the target,
and by using the technology built
in, it calculates and displays the true

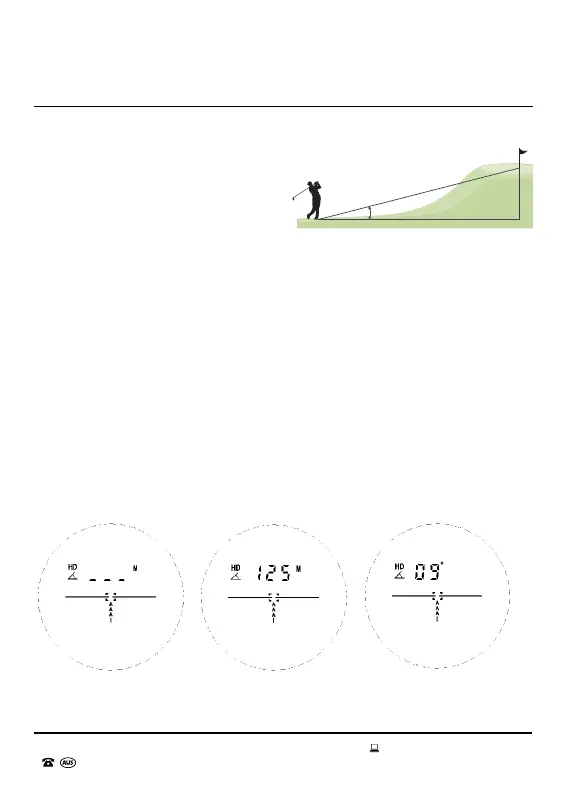

horizontal distance (see Fig. 7.1).
1. Put your dominant hand through the wrist strap and rmly grip the Laser
Range Finder. Bring the eyepiece to your eye and point the Laser Range
Finder at a distant object. If the object is not clear in your eld of vision, then
rotate the eyepiece of the Laser Range Finder until the object becomes clear.
2. Press down the OPEN button. The lens will display the last mode selected when
the Laser Range Finder shutdown. Keep pressing the MODE button till you
reach the Horizontal Distance Mode (see Fig. 7.2). Aim the Laser Range Finder at
your desired object, and press and release the OPEN button (short press). If the
object is in measuring range, then the Horizontal Distance to the object will be
displayed on the lens (see Fig. 7.3). Shortly after this value will be replaced by the
slope angle (see Fig. 7.4). The horizontal distance and angle will keep switching
back and forth till the Laser Range Finder shuts down.
Fig. 7.4Fig. 7. 3Fig. 7. 2
Horizontal Distance (125m)
Actual distance (127m)
Height (20m)
09°
Fig. 7.1
