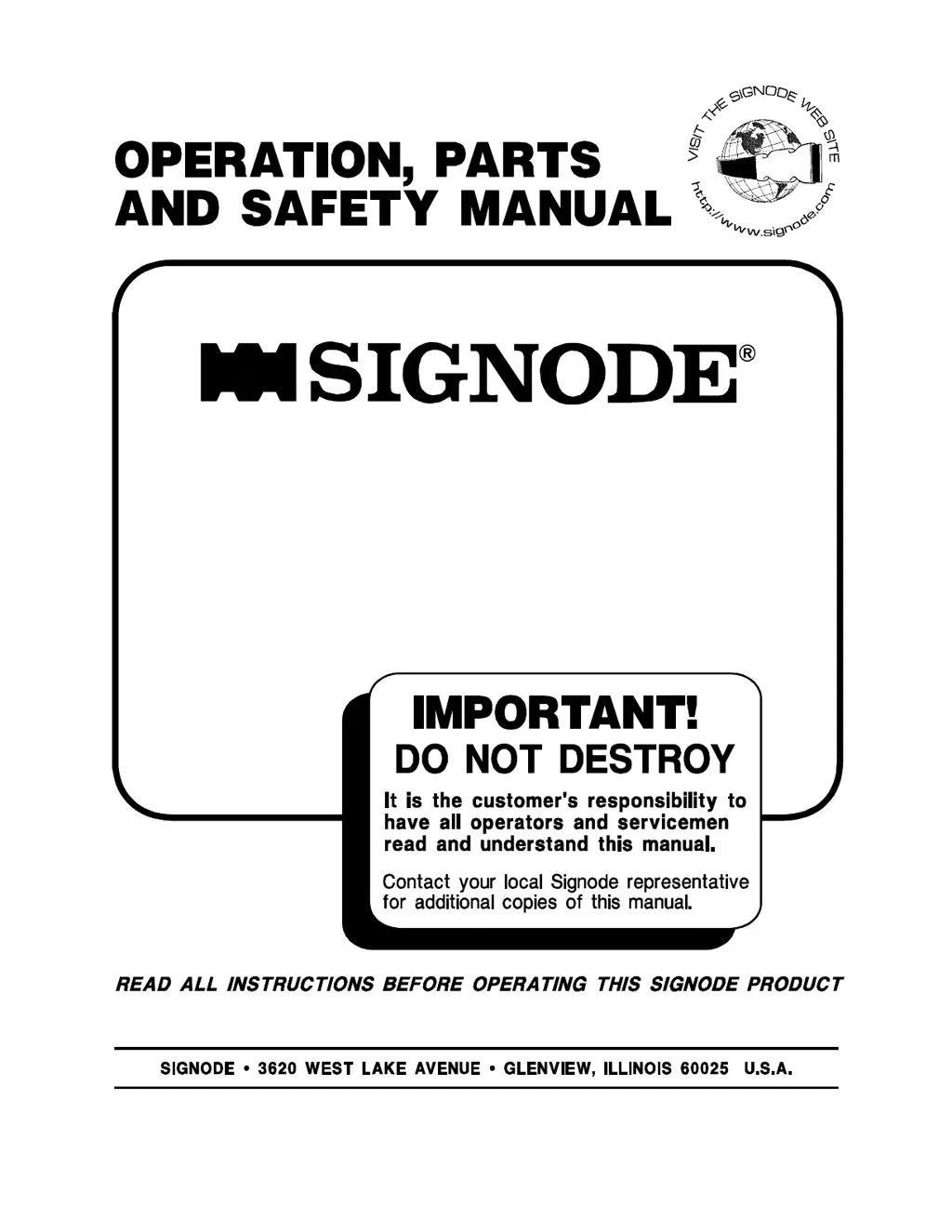

Signode AM Series - User Manual

Questions and Answers

D
Destiny MooreAug 1, 2025
Why are strap joints failing after tool removal from Signode AM?
- C
  Craig RobinsonAug 1, 2025
  If strap joints are failing after removing the Signode Packaging equipment, first verify that the jaws and tool size match the strap size you're using. Then, inspect the sealer mechanism for worn jaws, notchers, and pins, replacing them as needed. Finally, ensure that the strap, seal, and tool are suitable for the application, considering factors like load strength, impact, and potential load expansion.
B
Brittany DunlapAug 5, 2025
How to fix feedwheel slippage during tensioning in Signode Packaging equipment?
- R
  Ryan ScottAug 5, 2025
  If the Signode Packaging equipment's feedwheel slips on the top strap during tensioning, it might be due to several reasons. First, try cleaning the feedwheel teeth with a wire brush to remove any dirt or grit. If the teeth are worn or chipped, consider replacing the feedwheel. Also, check the side plate bushing for wear, and replace it if the hole is elongated. Finally, ensure the strap is properly aligned in the tool.
R
Russell FisherAug 10, 2025
What to do if sealing mechanism crushes seals in Signode AM?
- M
  Marvin BrownAug 10, 2025
  If the Signode Packaging equipment's sealing mechanism crushes or deforms seals, first ensure that the jaws and tool size match the strap size being used. Next, make sure to align the strap properly when loading the tool.
J
John BoydAug 14, 2025
Why does the bottom strap slip out during tensioning with Signode Packaging equipment?
- M
  Mr. Joseph Oconnor DDSAug 14, 2025
  If the bottom strap slips out of the Signode Packaging equipment during tensioning, it could be because the rocking gripper teeth are packed with dirt or grit. Try cleaning them with a wire brush. If the teeth are worn or chipped, you may need to replace the rocking gripper.
C
Christopher TateAug 18, 2025
What to do if Signode Packaging equipment won't cut strap after sealing?
- S
  Suzanne WilliamsAug 18, 2025
  If the Signode Packaging equipment will not cut off the strap after sealing, first adjust the cutter. If that doesn't work, the cutter blade may be worn and need replacement. Another possibility is that the cutting leg on the cutter block is worn or broken, requiring replacement of the cutter block.
C
Crystal MorrisonAug 22, 2025
Why doesn't the ejector pick up seals in Signode AM?
- M
  Melanie GoodmanAug 22, 2025
  If the ejector on your Signode Packaging equipment does not pick up seals, it could be due to several reasons: 1. Ensure the seals are properly seated in the cutter block track. 2. Check for and remove any dirt in the cutter block rear track. 3. Replace the ejector if the ejector tip is broken or worn. 4. Tighten any loose screws securing the cutter block to the magazine, applying Loctite #242 to each screw before reassembling. 5. Replace the ejector lever if it is broken or bent.
A
Adam JohnsonAug 27, 2025
What to do if seals don't eject fully from Signode AM Packaging equipment?
- J
  Janice FarmerAug 27, 2025
  If seals do not fully eject from the Signode Packaging equipment, or if the cutter blade cuts off seal ends, consider the following: 1. Replace the ejector spring. 2. Replace the ejector if its tip is severely worn. 3. Replace the cutter blade if it is severely worn. 4. Check the ejector lever for cracks or bending and replace if necessary. 5. If the screws securing the cutter block to the magazine are loose, disassemble the tool, remove the screws, apply one drop of Loctite #242 to each screw, and reassemble.

Summary

General Safety Considerations

Strap Breakage Hazard

Improper operation or sharp corners can cause strap breakage during tensioning, leading to loss of balance or injury from flying strap/tool.

Training Requirement

Tool must only be used by properly trained persons. Contact Signode Representative for questions.

Eye Injury Hazard

Failure to wear safety glasses with side shields can cause severe eye injury or blindness.

Fall Hazard

Improper footing or balance can cause falls. Avoid operating the tool in awkward positions.

Cut Hazard

Handling strap or sharp parts can cause cuts. Wear protective gloves.

Tool Care and Maintenance

Inspect and clean the tool daily, lubricate moving parts weekly, and replace worn parts.

Work Area Safety

Keep work areas uncluttered and well-lighted to prevent accidents.

Joint Formation

Double Notch Sealer Inspection

Each joint must have four (4) good notches for proper seal integrity.

Correcting Improper Seals

If a seal is improper, check operating instructions, reapply strap, or inspect tool for worn parts.

Seal Integrity Warning

Improperly formed seals can lead to strap separation. Ensure all seals have four equally spaced notches.

Specifications

Operating Instructions

Loading Seals

Insert seals into the side of the seal magazine; the pad extension reminds you to add seals.

Strapping Tie Procedure

Encircle package with strap, insert bottom strap under rocking gripper, and then top strap under feedwheel.

Parts Replacement

Magazine and Sealer Mechanism

Instructions for disassembling, servicing, and reassembling the magazine and sealer mechanism.

Ejector and Ejector Lever Assembly

Procedures for disassembling and reassembling the ejector and ejector lever components.

Feedwheel and Gripper Maintenance

Feedwheel Replacement

Steps for changing a dirty or worn feedwheel, including removal and reassembly.

Rocking Gripper Replacement

Procedure for removing and reinstalling the rocking gripper, involving Truarc pliers.

Cutter Adjustment

How to adjust the cutter set screw to ensure proper cutting of the strap.

Maintenance Schedule

Lubrication and Cleaning

Weekly lubrication of moving parts and daily cleaning of the feedwheel are recommended.

Troubleshooting Guide

Feedwheel Slip Symptoms

Addresses issues where the feedwheel slips on the strap during tensioning.

Bottom Strap Slip Symptoms

Troubleshooting for when the bottom strap slips out of the tool during tensioning.

Strap Joint Failure

Investigates causes for strap joints failing after tool removal.

Sealing Mechanism Issues

Resolves problems where the sealing mechanism crushes or deforms seals.

Cutting Functionality Problems

Diagnoses why the tool will not cut off strap after sealing.

Ejection and Cutting Errors

Addresses issues with seals not ejecting properly or cutter blade cutting seal ends.

Ejector Pick-up Failures

Troubleshoots the ejector not picking up seals correctly.

Tool Options and Conversion

Skid Hook with Adapter

Optional equipment for hanging the tool off the side of a load to apply vertical straps.

AM-3431 Conversion Kit

Details on converting the AM-34 tool for use with 3/4" x .031" strapping.

New Tool Warranty

Warranty Coverage Period

Specifies a sixty (60) day warranty for functional specifications and thirty (30) days for wearing parts.

Warranty Exclusions

Lists conditions that void the warranty, such as misuse, improper maintenance, or non-Signode parts.

Liability Limitations

States that Signode is not liable for indirect or consequential damages.

Signode AM Series Specifications

General

Brand	Signode
Model	AM Series
Category	Packaging equipment
Language	English
