Signode PN2-2 - Page 15

15

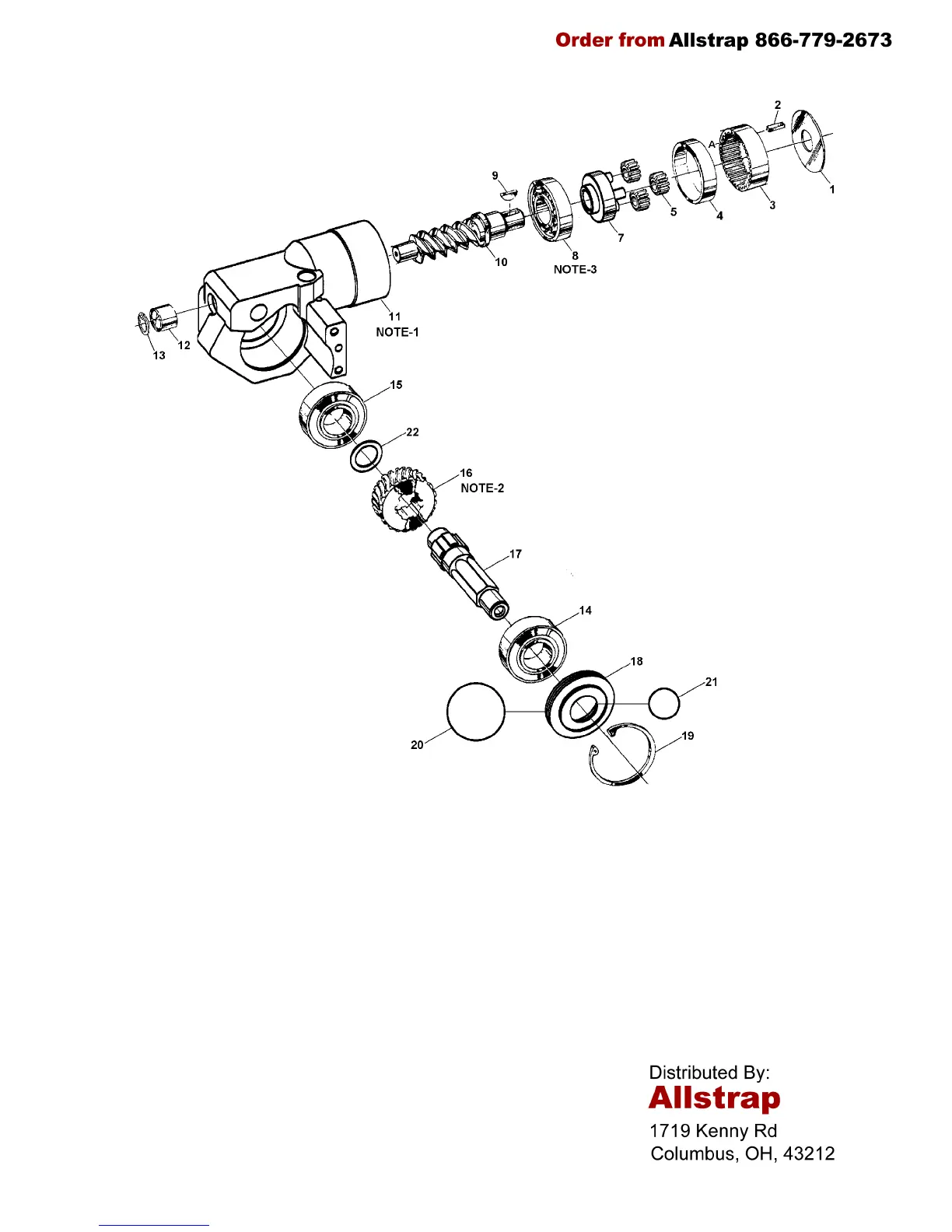

NOTES:
1
. Pack the gear housing (11) about 1/3 full with Non-Fluid Oil #K55 or equivalent.
2. When assembling the worm gear, the side stamped 'T' must face towards the back of the
housing.
3. Bearing must be installed with wide shoulder away from worm.
