PARTS LIST, TOOL
K
EY
QTY. PART # DESCRIPTION
1 1 423518 Flange bearing
2 1 423537 Nameplate (PN2-114)
1
510462 Nameplate (PN2-2)
3 1 423516
Pivot pin,
k
10mm x 60mm
4 1 267596 Warning plate
5
4 005464 Lock washer
6 2 423549 SHCS, M6 x 18
7 1 423532
Handle
8
2 423790 SHCS, M6 x 25
9 1 162391 Pin,
k
5mm x 24mm
10 1 423791 SHSS, M6 x 25 (flat point)
14 1 423548
Foot spring
16 1 423514 Breaker foot
17 1 423513 Breaker nose (PN2-114)
1
428486
Breaker nose (PN2-2)
1
8 1 252262
Nose pin,
k
8mm x 36mm
19 1 423546 Nose spring
2
0 1 423398
Feed wheel
21 1 423521 Bushing
22 1 423505 Side plate
2
6 1 423517
Roller
28 1 423524 Roller pin,
k
10mm x 50mm
!
When ordering parts please show tool model, part number and description.
! Recommended spare parts are underlined and should be stocked.
! Common hardware parts can be obtained at any local hardware supply.
* Apply one drop of Loctite #242 (Blue) sealant to cleaned parts. Allow 12 hours to set if possible.
Do not apply to small screws or close to moving parts as liquid spreads easily.
** Apply one drop of Loctite #271 (Red) sealant to cleaned parts. Allow 12 hours to set if
possible. Do not apply to small screws or close to moving parts as liquid spreads easily.
*** Apply one drop of Loctite #222 (Purple) sealant to cleaned parts. Allow 12 hours to set if
possible. Do not apply to small screws or close to moving parts as liquid spreads easily.
NOTES:

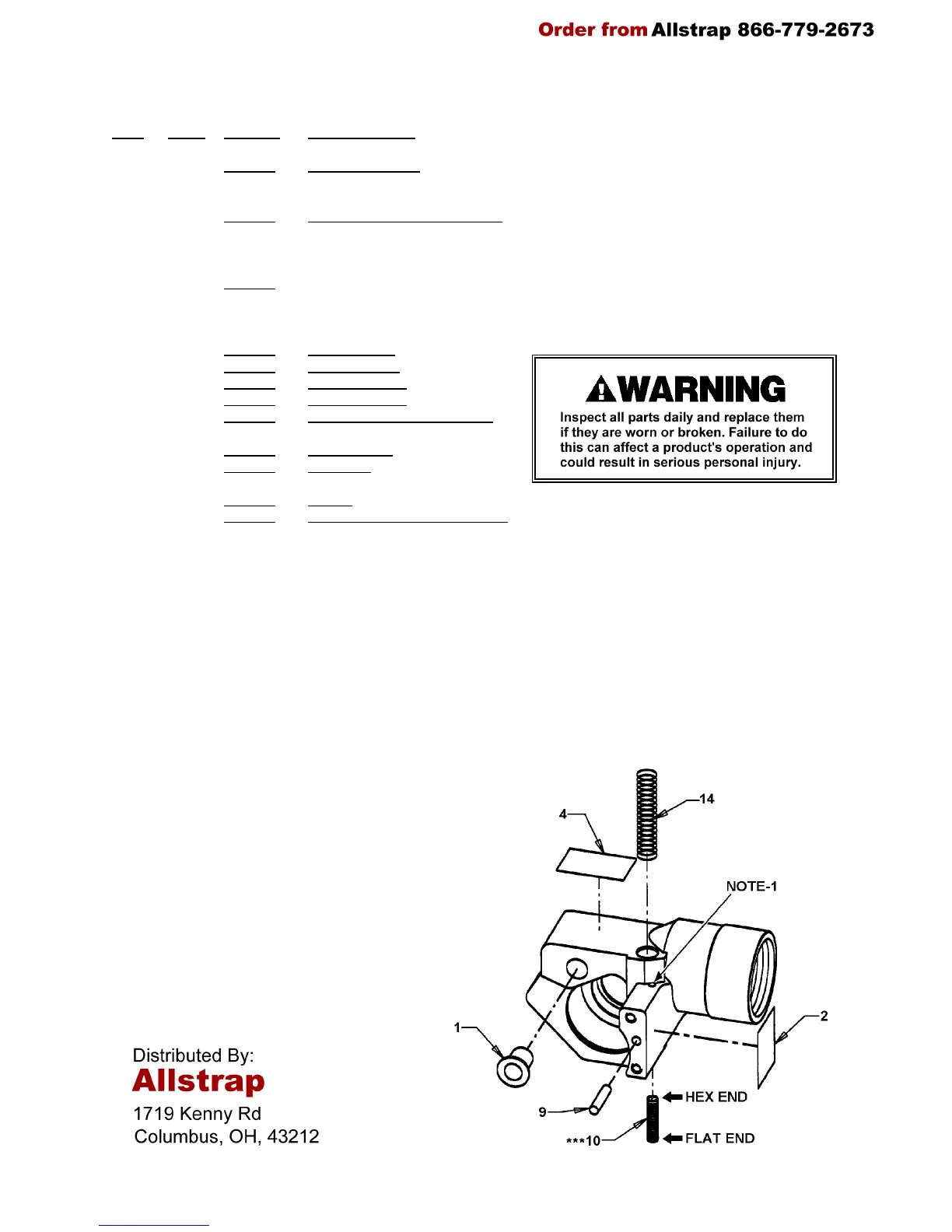

1. Allen wrench access hole to socket head set screw
(Key 10) for feedwheel to roller clearance
adjustment.
2. Install feedwheel in noted rotational direction as
shown by arrows.
3. Install roller with the larger diameter (marked
OUT) facing outwards as shown.
