ANNEX 2 - Cable Information
Cable Overview
The JCM cable supplied with the Jaeger can come in various lengths (up to 50m) and in two
different formats;
1. Double ended;
a. Each end of the Jaeger cable is terminated with a MIL38K Connector
i. This is typically the case is a pre-terminated PSU is purchased.
2. Bare Ended
a. The Jaeger end is terminated with the MIL38K Connector
b. The PSU end of the Cable is left as ‘flying leads’ with only the RJ45 and BNC
conductors terminated.

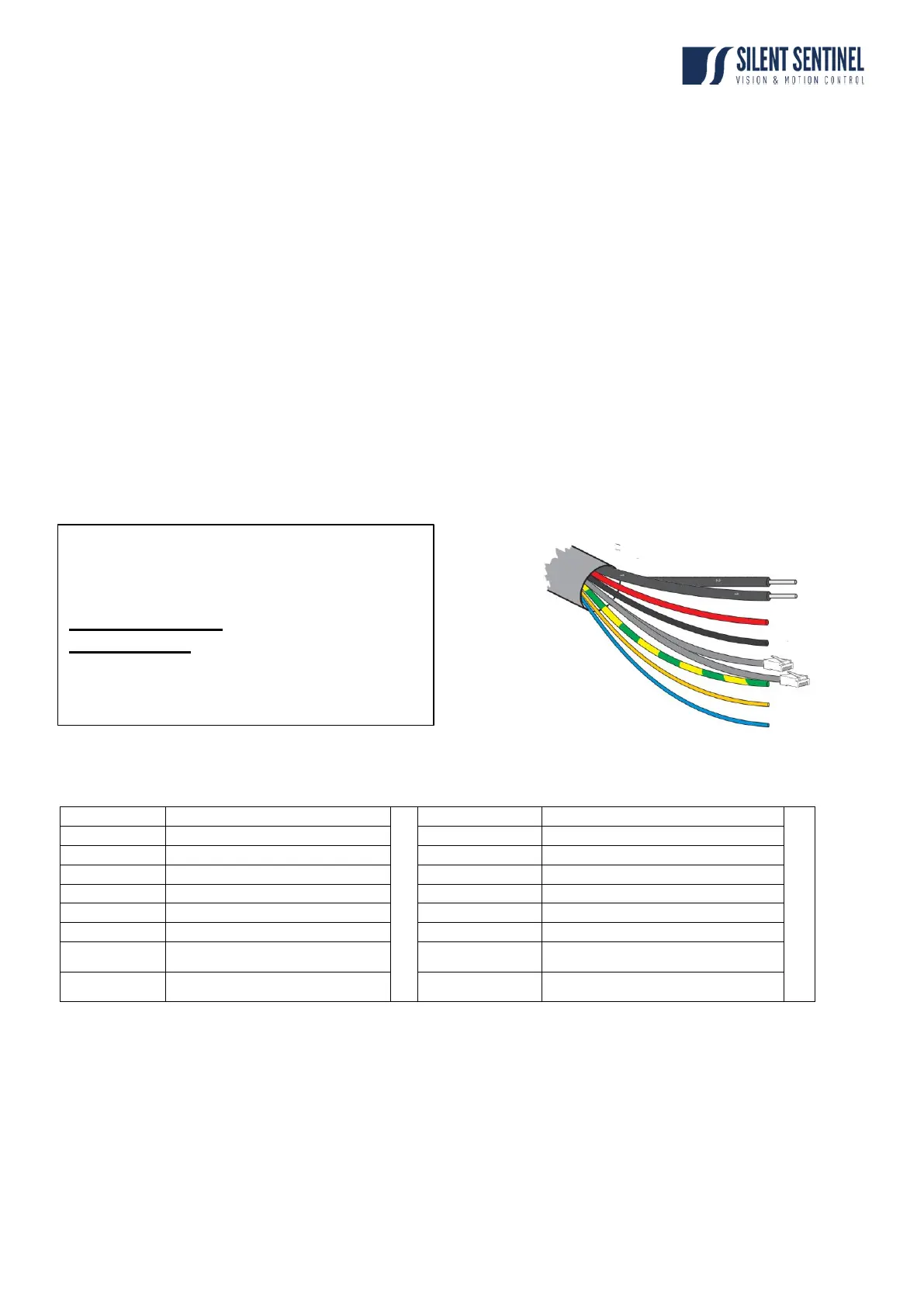

Cable Pin Out
Multiway Cable Conductor Assignments.
Conductor
Function
Conductor
Function
Red
PTZ Power + (Pos) [26-32VDC]
Green/Yellow
Earth (Chassis)
Black
PTZ Power - (Neg)
Grey (Drain wire)
Cable screen – overall multicore shield.
Orange
Aux / Washer Relay Pos – (Specific models only)
Coaxial 1
Composite Video 1 - miniRG59
White
Aux / Washer Relay Neg – (Specific models only)
Coaxial 2
Composite Video 2 - miniRG59
Brown
Pass-through Power Pos
Blue
Pass-through Power Neg
Yellow (UTP)
UTP - RS485 (Data +)
Cat5e - Grey
Net 1 (A) – Ethernet network – PTZ/Side camera
payloads
Blue (UTP)
UTP - RS485 (Data -)
Cat5e - Blue
Net 2 (B) – Ethernet network – Passthrough to top
payload
Netwok connection leads.
Cat5/8P8C pinout configuration – 10/100BASET
(TIA568B)
Network connectors.
Pin Function
1 Tx D+
2 Tx D -
3 Rx D+
6 Rx D -
